9IYJ | pdb_00009iyj

Cryo-EM structure of an amyloid fibril formed by SOD1 mutant - D101N


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.92 Å
  • Aggregation State: HELICAL ARRAY
  • Reconstruction Method: HELICAL

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Distinct amyloid fibril structures formed by ALS-causing SOD1 mutants G93A and D101N.

Zhang, M.Y.Ma, Y.Wang, L.Q.Xia, W.Li, X.N.Zhao, K.Chen, J.Li, D.Zou, L.Wang, Z.Liu, C.Liang, Y.

(2025) EMBO Rep 26: 4820-4846

  • DOI: https://doi.org/10.1038/s44319-025-00557-8
  • Primary Citation of Related Structures:
    9IYD, 9IYJ

  • PubMed Abstract:

    Two hundred eight genetic mutations in SOD1 have been linked to amyotrophic lateral sclerosis (ALS). Of these, the G93A and D101N variants maintain much of their physiological function, closely resembling that of wild-type SOD1, and the SOD1-G93A transgenic mouse is the most extensively used mouse line in the study of ALS. In this study, we report two cryo-EM structures of amyloid fibrils formed by G93A and D101N mutants of SOD1 protein. These mutations give rise to amyloid fibrils with distinct structures compared to native SOD1 fibrils. The fibril core displays a serpentine configuration featuring four β-strands, held together by two hydrophobic cavities and a salt bridge between Arg143 and Asp96 in the G93A fibril, and by a hydrophobic cavity and a salt bridge between Arg143 and Asp132 in the D101N fibril, demonstrating unique structural features for each mutant. Moreover, our results show that G93A fibrils are significantly more toxic than those formed by D101N, which do not show a marked increase in toxicity compared to wild-type SOD1 fibrils. This study sheds light on the structural mechanisms through which SOD1 mutants aggregate and induce cytotoxicity in ALS.


  • Organizational Affiliation
    • Hubei Key Laboratory of Cell Homeostasis, College of Life Sciences, TaiKang Center for Life and Medical Sciences, Wuhan University, 430072, Wuhan, China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

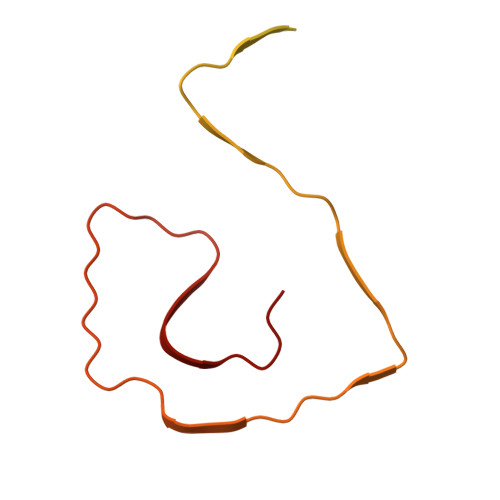

Superoxide dismutase [Cu-Zn]
A, B, C
153Homo sapiensMutation(s): 1
Gene Names: SOD1
EC: 1.15.1.1
UniProt & NIH Common Fund Data Resources
Find proteins for P00441 (Homo sapiens)
Explore P00441
Go to UniProtKB:  P00441
PHAROS:  P00441
GTEx:  ENSG00000142168
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00441
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.92 Å
  • Aggregation State: HELICAL ARRAY
  • Reconstruction Method: HELICAL
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.15.2_3472:
RECONSTRUCTIONRELION3

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China32271326
National Natural Science Foundation of China (NSFC)China32071212
National Natural Science Foundation of China (NSFC)China31770833
National Natural Science Foundation of China (NSFC)China32201040

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-29
    Type: Initial release
