9IME | pdb_00009ime

Pilin PilA from Burkholderia thailandensis with bromide ions

PDB DOI: https://doi.org/10.2210/pdb9IME/pdb

Classification: CELL ADHESION
Organism(s): Burkholderia thailandensis E264
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-07-03 Released: 2025-07-09
Deposition Author(s): Lotangchanintra, T., Wawrzak, Z., Wangkanont, K.
Funding Organization(s): Other government

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.35 Å
R-Value Free:
0.188 (Depositor), 0.185 (DCC)
R-Value Work:
0.155 (Depositor), 0.154 (DCC)
R-Value Observed:
0.156 (Depositor)

wwPDB Validation 3D Report Full Report

Validation slider image for 9IME

This is version 1.0 of the entry. See complete history.

Literature

Pilin PilA from Burkholderia thailandensis with bromide ions

Lotangchanintra, T., Wawrzak, Z., Wangkanont, K.

To be published.

Macromolecule Content

Total Structure Weight: 31.69 kDa
Atom Count: 2,634
Modeled Residue Count: 292
Deposited Residue Count: 294
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

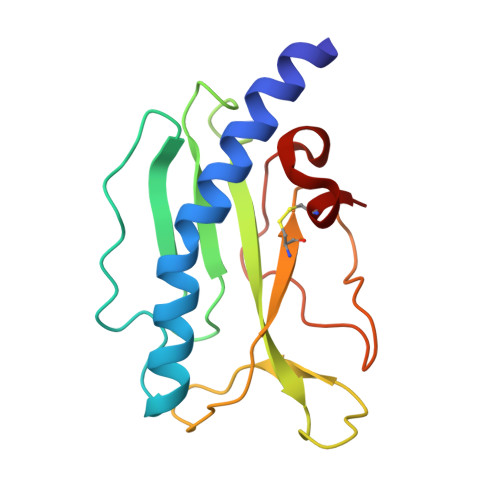

Pilin (Bacterial filament) subfamily	A, B	147	Burkholderia thailandensis E264	Mutation(s): 0 Gene Names: BTH_I0649
UniProt
Find proteins for Q2T0U4 (Burkholderia thailandensis (strain ATCC 700388 / DSM 13276 / CCUG 48851 / CIP 106301 / E264)) Explore Q2T0U4 Go to UniProtKB: Q2T0U4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q2T0U4
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
SO4 Query on SO4 Download:Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain V [auth B] SDF format, chain W [auth B] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain V [auth B] MOL2 format, chain W [auth B] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain V [auth B] mmCIF format, chain W [auth B]	G [auth A] H [auth A] I [auth A] J [auth A] K [auth A] G [auth A], H [auth A], I [auth A], J [auth A], K [auth A], L [auth A], V [auth B], W [auth B]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain V [auth B] Focus chain W [auth B] Interactions & Density Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain V [auth B] Focus chain W [auth B]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain T [auth B] SDF format, chain U [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain T [auth B] MOL2 format, chain U [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain T [auth B] mmCIF format, chain U [auth B]	C [auth A] D [auth A] E [auth A] F [auth A] T [auth B] C [auth A], D [auth A], E [auth A], F [auth A], T [auth B], U [auth B]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain T [auth B] Focus chain U [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain T [auth B] Focus chain U [auth B]
BR Query on BR Download:Ideal Coordinates CCD File SDF format, chain AA [auth B] SDF format, chain BA [auth B] SDF format, chain CA [auth B] SDF format, chain M [auth A] SDF format, chain N [auth A] SDF format, chain O [auth A] SDF format, chain P [auth A] SDF format, chain Q [auth A] SDF format, chain R [auth A] SDF format, chain S [auth A] SDF format, chain X [auth B] SDF format, chain Y [auth B] SDF format, chain Z [auth B] MOL2 format, chain AA [auth B] MOL2 format, chain BA [auth B] MOL2 format, chain CA [auth B] MOL2 format, chain M [auth A] MOL2 format, chain N [auth A] MOL2 format, chain O [auth A] MOL2 format, chain P [auth A] MOL2 format, chain Q [auth A] MOL2 format, chain R [auth A] MOL2 format, chain S [auth A] MOL2 format, chain X [auth B] MOL2 format, chain Y [auth B] MOL2 format, chain Z [auth B] mmCIF format, chain AA [auth B] mmCIF format, chain BA [auth B] mmCIF format, chain CA [auth B] mmCIF format, chain M [auth A] mmCIF format, chain N [auth A] mmCIF format, chain O [auth A] mmCIF format, chain P [auth A] mmCIF format, chain Q [auth A] mmCIF format, chain R [auth A] mmCIF format, chain S [auth A] mmCIF format, chain X [auth B] mmCIF format, chain Y [auth B] mmCIF format, chain Z [auth B]	AA [auth B] BA [auth B] CA [auth B] M [auth A] N [auth A] AA [auth B], BA [auth B], CA [auth B], M [auth A], N [auth A], O [auth A], P [auth A], Q [auth A], R [auth A], S [auth A], X [auth B], Y [auth B], Z [auth B]	BROMIDE ION Br CPELXLSAUQHCOX-UHFFFAOYSA-M		Interactions Focus chain AA [auth B] Focus chain BA [auth B] Focus chain CA [auth B] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth A] Focus chain S [auth A] Focus chain X [auth B] Focus chain Y [auth B] Focus chain Z [auth B] Interactions & Density Focus chain AA [auth B] Focus chain BA [auth B] Focus chain CA [auth B] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth A] Focus chain S [auth A] Focus chain X [auth B] Focus chain Y [auth B] Focus chain Z [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.35 Å
R-Value Free: 0.188 (Depositor), 0.185 (DCC)
R-Value Work: 0.155 (Depositor), 0.154 (DCC)
R-Value Observed: 0.156 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 32.245	α = 90
b = 52.72	β = 97.6
c = 72.885	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
MOSFLM	data reduction
Aimless	data scaling
PHENIX	phasing
PHENIX	model building

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-07-09

Deposition Author(s):

Lotangchanintra, T.

Funding Organization	Location	Grant Number
Other government		Thailand Science Research and Innovation Fund Chulalongkorn University

Revision History (Full details and data files)

Version 1.0: 2025-07-09
Type: Initial release
