9I66 | pdb_00009i66

Downregulated state of the betaine transporter BetP

PDB DOI: https://doi.org/10.2210/pdb9I66/pdb
EM Map EMD-52651: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Corynebacterium glutamicum
Expression System: Escherichia coli DH5[alpha]
Mutation(s): No

Deposited: 2025-01-29 Released: 2026-02-18
Deposition Author(s): Heinz, V., Urbansky, K., Fu, L., Madej, M.G., Ziegler, C.
Funding Organization(s): Other government

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.57 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9I66

This is version 1.0 of the entry. See complete history.

Literature

Transport regulation of BetP

Heinz, V., Gueler, G., Urbansky, K., Fu, L., Madej, M.G., Maksimov, S., Hamdi, F., Kastriti, P.L., Maentele, W., Kapiki, D., Cordes, T., Kraemer, R., Perez, C., Ziegler, C.

To be published.

Macromolecule Content

Total Structure Weight: 203.22 kDa
Atom Count: 12,486
Modeled Residue Count: 1,581
Deposited Residue Count: 1,818
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

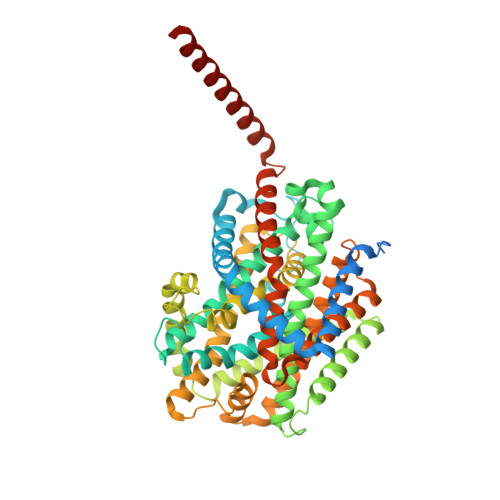

Glycine betaine transporter BetP	A, B, C	606	Corynebacterium glutamicum	Mutation(s): 0 Gene Names: betP, Cgl0892, cg1016
UniProt
Find proteins for P54582 (Corynebacterium glutamicum (strain ATCC 13032 / DSM 20300 / JCM 1318 / BCRC 11384 / CCUG 27702 / LMG 3730 / NBRC 12168 / NCIMB 10025 / NRRL B-2784 / 534)) Explore P54582 Go to UniProtKB: P54582
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P54582
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
CDL Query on CDL Download:Ideal Coordinates CCD File SDF format, chain I [auth C] SDF format, chain F [auth A] SDF format, chain E [auth A] MOL2 format, chain I [auth C] MOL2 format, chain F [auth A] MOL2 format, chain E [auth A] mmCIF format, chain I [auth C] mmCIF format, chain F [auth A] mmCIF format, chain E [auth A]	E [auth A], F [auth A], I [auth C]	CARDIOLIPIN C₈₁ H₁₅₆ O₁₇ P₂ XVTUQDWPJJBEHJ-KZCWQMDCSA-L		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain I [auth C] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain I [auth C]
PGT Query on PGT Download:Ideal Coordinates CCD File SDF format, chain H [auth B] SDF format, chain G [auth A] SDF format, chain D [auth A] MOL2 format, chain H [auth B] MOL2 format, chain G [auth A] MOL2 format, chain D [auth A] mmCIF format, chain H [auth B] mmCIF format, chain G [auth A] mmCIF format, chain D [auth A]	D [auth A], G [auth A], H [auth B]	(1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE C₄₀ H₇₉ O₁₀ P KBPVYRBBONZJHF-AMAPPZPBSA-N		Interactions Focus chain D [auth A] Focus chain G [auth A] Focus chain H [auth B] Interactions & Density Focus chain D [auth A] Focus chain G [auth A] Focus chain H [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.57 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-02-18

Deposition Author(s):

Funding Organization	Location	Grant Number
Other government	Germany	--

Revision History (Full details and data files)

Version 1.0: 2026-02-18
Type: Initial release
