9HPX | pdb_00009hpx

[FeFe]-hydrogenase from D. desulfuricans with synthetic active site containing only one cyanide ligand.

PDB DOI: https://doi.org/10.2210/pdb9HPX/pdb

Classification: OXIDOREDUCTASE
Organism(s): Desulfovibrio desulfuricans
Expression System: Escherichia coli BL21
Mutation(s): No

Deposited: 2024-12-16 Released: 2025-12-24
Deposition Author(s): Carr, S.B., Duan, Z., Rodriguez-Macia, P.
Funding Organization(s): Biotechnology and Biological Sciences Research Council (BBSRC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 0.96 Å
R-Value Free:
0.144 (Depositor), 0.150 (DCC)
R-Value Work:
0.127 (Depositor), 0.137 (DCC)
R-Value Observed:
0.128 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

To Bridge or not to Bridge: Manipulation of the Diatomic Ligands in Semi-synthetic [FeFe]-Hydrogenases Allows Isolation of a Novel Active-site State

Duan, Z., Gellet, J., Zamander, A., Bjornsson, R., Lachmann, M.T., Martini, M.A., Lorenzi, M., Myers, W.K., Berggren, G., Carr, S.B., Rodriguez-Macia, P.

To be published.

Macromolecule Content

Total Structure Weight: 55.27 kDa
Atom Count: 4,426
Modeled Residue Count: 485
Deposited Residue Count: 485
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

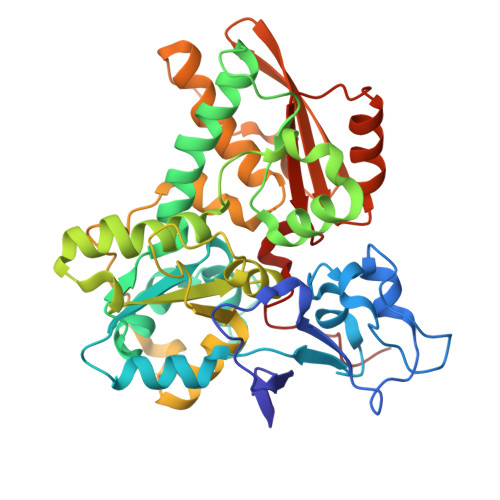

Periplasmic [Fe] hydrogenase large subunit	A	397	Desulfovibrio desulfuricans	Mutation(s): 0 Gene Names: hydA, DVU_1769 EC: 1.12.7.2
UniProt
Find proteins for P07598 (Nitratidesulfovibrio vulgaris (strain ATCC 29579 / DSM 644 / CCUG 34227 / NCIMB 8303 / VKM B-1760 / Hildenborough)) Explore P07598 Go to UniProtKB: P07598
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P07598
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Periplasmic [Fe] hydrogenase small subunit	B	88	Desulfovibrio desulfuricans	Mutation(s): 0 Gene Names: hydB, DVU_1770 EC: 1.12.7.2
UniProt
Find proteins for P07603 (Nitratidesulfovibrio vulgaris (strain ATCC 29579 / DSM 644 / CCUG 34227 / NCIMB 8303 / VKM B-1760 / Hildenborough)) Explore P07603 Go to UniProtKB: P07603
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P07603
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1IW2 (Subject of Investigation/LOI) Query on A1IW2 Download Ideal Coordinates CCD File SDF format, chain F [auth A] MOL2 format, chain F [auth A] mmCIF format, chain F [auth A]	F [auth A]	6,6,7,7-tetrakis($l^{3}-oxidanylidynemethyl)-1$l^{3},5$l^{3}-dithia-3-aza-6$l^{5},7$l^{4}-diferrabicyclo[3.1.1]heptane-6-carbonitrile C₇ H₅ Fe₂ N₂ O₄ S₂ XFZOTBOGDANNAV-UHFFFAOYSA-L		Interactions Focus chain F [auth A] Interactions & Density Focus chain F [auth A]
SF4 Query on SF4 Download Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain D [auth A] SDF format, chain C [auth A] MOL2 format, chain E [auth A] MOL2 format, chain D [auth A] MOL2 format, chain C [auth A] mmCIF format, chain E [auth A] mmCIF format, chain D [auth A] mmCIF format, chain C [auth A]	C [auth A], D [auth A], E [auth A]	IRON/SULFUR CLUSTER Fe₄ S₄ LJBDFODJNLIPKO-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A]
CL Query on CL Download Ideal Coordinates CCD File SDF format, chain P [auth A] SDF format, chain O [auth A] SDF format, chain N [auth A] SDF format, chain M [auth A] SDF format, chain L [auth A] SDF format, chain K [auth A] SDF format, chain J [auth A] SDF format, chain I [auth A] SDF format, chain H [auth A] SDF format, chain G [auth A] MOL2 format, chain P [auth A] MOL2 format, chain O [auth A] MOL2 format, chain N [auth A] MOL2 format, chain M [auth A] MOL2 format, chain L [auth A] MOL2 format, chain K [auth A] MOL2 format, chain J [auth A] MOL2 format, chain I [auth A] MOL2 format, chain H [auth A] MOL2 format, chain G [auth A] mmCIF format, chain P [auth A] mmCIF format, chain O [auth A] mmCIF format, chain N [auth A] mmCIF format, chain M [auth A] mmCIF format, chain L [auth A] mmCIF format, chain K [auth A] mmCIF format, chain J [auth A] mmCIF format, chain I [auth A] mmCIF format, chain H [auth A] mmCIF format, chain G [auth A]	G [auth A] H [auth A] I [auth A] J [auth A] K [auth A] G [auth A], H [auth A], I [auth A], J [auth A], K [auth A], L [auth A], M [auth A], N [auth A], O [auth A], P [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Interactions & Density Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A]
LI Query on LI Download Ideal Coordinates CCD File SDF format, chain R [auth A] SDF format, chain Q [auth A] MOL2 format, chain R [auth A] MOL2 format, chain Q [auth A] mmCIF format, chain R [auth A] mmCIF format, chain Q [auth A]	Q [auth A], R [auth A]	LITHIUM ION Li HBBGRARXTFLTSG-UHFFFAOYSA-N		Interactions Focus chain Q [auth A] Focus chain R [auth A] Interactions & Density Focus chain Q [auth A] Focus chain R [auth A]
