9HO3 | pdb_00009ho3

Aspartyl/Asparaginyl beta-hydroxylase (AspH) in complex with Fe, 2OG, nitric oxide, and Factor X peptide fragment


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.39 Å
  • R-Value Free:
    0.242 (Depositor), 0.243 (DCC)
  • R-Value Work:
    0.199 (Depositor), 0.199 (DCC)
  • R-Value Observed:
    0.201 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structural basis of the promiscuity of the unusual Fe(II) and 2-oxoglutarate dependent human aspartate/asparagine-beta-hydroxylase.

de Munnik, M.Brasnett, A.Zhou, T.Myers, W.Wang, Y.Chatterjee, K.Tumber, A.Marshall, S.A.Simon, P.S.Aller, P.Shilova, A.Axford, D.Makita, H.Paley, D.W.Tiwari, V.Stead, A.T.Dehe, S.Sanchez, H.Rosenberg, D.J.Alonso-Mori, R.Bhowmick, A.Yano, J.Yachandra, V.K.Park, J.Park, S.Orville, A.M.Brewitz, L.Kern, J.F.Schofield, C.J.Rabe, P.

(2026) Nat Commun

  • DOI: https://doi.org/10.1038/s41467-026-69425-w
  • Primary Citation of Related Structures:
    9FVU, 9FVV, 9FVW, 9FVX, 9FVY, 9FVZ, 9FW0, 9HNZ, 9HO0, 9HO1, 9HO2, 9HO3

  • PubMed Abstract:

    Protein-hydroxylation catalysed by Fe(II) and 2-oxoglutarate (2OG) dependent oxygenases is an important regulatory mechanism in human biology. Such oxygenases typically coordinate their Fe(II) cofactor via a conserved triad of an aspartate- or glutamate- and two histidine-residues. By contrast, aspartate/asparagine β-hydroxylase (AspH), which catalyses asparagine/aspartate-residue oxidation in epidermal growth factor-like domains (EGFDs), has only two histidine-residues (H679, H725), with a water occupying the site normally occupied by an aspartate- or glutamate-residue. We describe mechanistic studies with catalytically active AspH crystals. Turnover studies with single crystals under cryogenic conditions give (3 R)-hydroxylated EGFDs with the product alcohol coordinating Fe(II) trans to H725. Time-resolved serial crystallography of microcrystals using an acoustic droplet ejection system, coupled to X-ray emission analyses, demonstrate turnover within 1.5 s, giving a product complex in which Fe(II) is regenerated. Solution and crystallographic studies with the O 2 surrogate nitric oxide imply O 2 binds to Fe(II) trans to H725. The additional Fe-chelating water is maintained throughout AspH catalysis and is not directly involved in substrate hydroxylation, because O 2 is the sole oxygen source in alcohol products, as shown by 18 O labelling studies. The results reveal how AspH accommodates both aspartate- and asparagine-substrates and will assist in efforts targeting AspH for cancer treatment.


  • Organizational Affiliation
    • Chemistry Research Laboratory and the Ineos Oxford Institute for Antimicrobial Research, University of Oxford, Oxford, UK.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

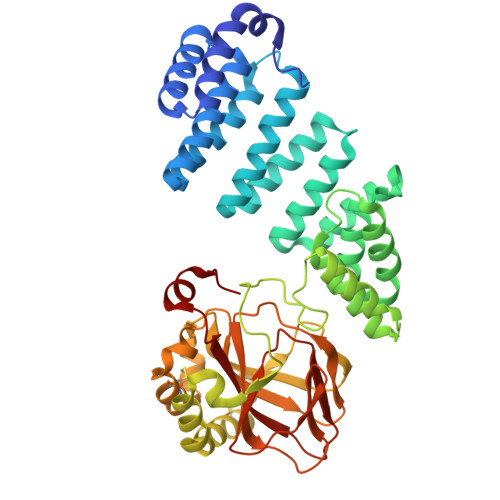

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Aspartyl/asparaginyl beta-hydroxylase429Homo sapiensMutation(s): 0
Gene Names: ASPHBAH
EC: 1.14.11.16
UniProt & NIH Common Fund Data Resources
Find proteins for Q12797 (Homo sapiens)
Explore Q12797
Go to UniProtKB:  Q12797
PHAROS:  Q12797
GTEx:  ENSG00000198363
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ12797
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

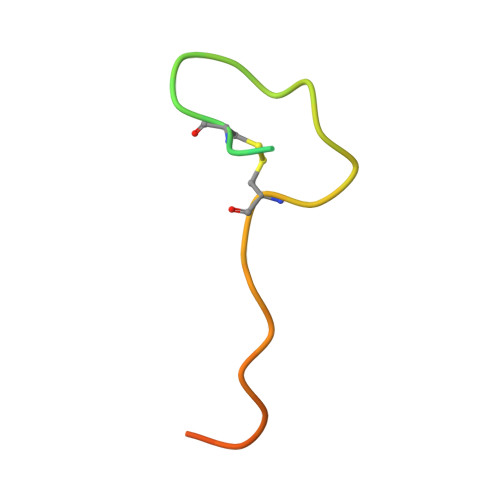

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Coagulation factor X39Homo sapiensMutation(s): 4
EC: 3.4.21.6
UniProt & NIH Common Fund Data Resources
Find proteins for P00742 (Homo sapiens)
Explore P00742
Go to UniProtKB:  P00742
PHAROS:  P00742
GTEx:  ENSG00000126218
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP00742
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 5 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
AKG
Query on AKG

Download Ideal Coordinates CCD File
F [auth A]2-OXOGLUTARIC ACID
C5 H6 O5
KPGXRSRHYNQIFN-UHFFFAOYSA-N
FE
Query on FE

Download Ideal Coordinates CCD File
E [auth A]FE (III) ION
Fe
VTLYFUHAOXGGBS-UHFFFAOYSA-N
K
Query on K

Download Ideal Coordinates CCD File
D [auth A]POTASSIUM ION
K
NPYPAHLBTDXSSS-UHFFFAOYSA-N
NO (Subject of Investigation/LOI)
Query on NO

Download Ideal Coordinates CCD File
G [auth B]NITRIC OXIDE
N O
ODUCDPQEXGNKDN-UHFFFAOYSA-N
NA
Query on NA

Download Ideal Coordinates CCD File
C [auth A]SODIUM ION
Na
FKNQFGJONOIPTF-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.39 Å
  • R-Value Free:  0.242 (Depositor), 0.243 (DCC)
  • R-Value Work:  0.199 (Depositor), 0.199 (DCC)
  • R-Value Observed: 0.201 (Depositor)
Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 49.83α = 90
b = 86.49β = 90
c = 123.23γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Biotechnology and Biological Sciences Research Council (BBSRC)United KingdomBB/V001892/1
Wellcome TrustUnited Kingdom227298/Z/23/Z

Revision History  (Full details and data files)

  • Version 1.0: 2025-12-24
    Type: Initial release
  • Version 1.1: 2026-03-11
    Changes: Database references
