9HKM | pdb_00009hkm

Transient activated state of BetP-M150E

PDB DOI: https://doi.org/10.2210/pdb9HKM/pdb
EM Map EMD-52232: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Corynebacterium glutamicum
Expression System: Escherichia coli DH5[alpha]
Mutation(s): Yes

Deposited: 2024-12-03 Released: 2025-12-17
Deposition Author(s): Urbansky, K., Gauthier-Manuel, L., Fu, L., Madej, M.G., Ziegler, C.
Funding Organization(s): Other government

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.74 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9HKM

This is version 1.0 of the entry. See complete history.

Literature

Structural evidence for a link between substrate promiscuity and transport regulation in BetP mutants

Urbansky, K., Fu, L., Klinger, S., Madej, M.G., Ziegler, C.

To be published.

Macromolecule Content

Total Structure Weight: 198.75 kDa
Atom Count: 11,447
Modeled Residue Count: 1,493
Deposited Residue Count: 1,809
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

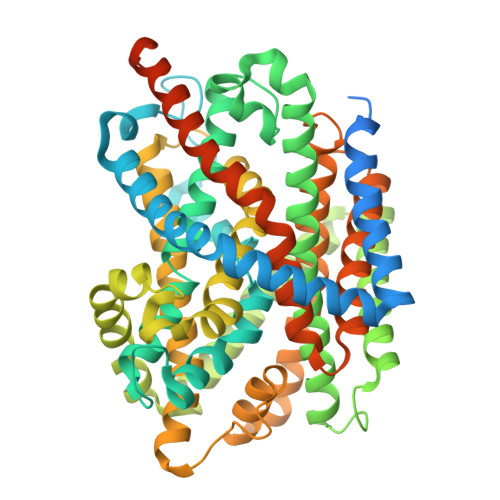

Glycine betaine transporter BetP	A, B, C	603	Corynebacterium glutamicum	Mutation(s): 1 Gene Names: betP, Cgl0892, cg1016
UniProt
Find proteins for P54582 (Corynebacterium glutamicum (strain ATCC 13032 / DSM 20300 / JCM 1318 / BCRC 11384 / CCUG 27702 / LMG 3730 / NBRC 12168 / NCIMB 10025 / NRRL B-2784 / 534)) Explore P54582 Go to UniProtKB: P54582
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P54582
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
PGT Query on PGT Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain G [auth B] SDF format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain G [auth B] MOL2 format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain G [auth B] mmCIF format, chain D [auth A]	D [auth A], E [auth A], G [auth B]	(1S)-2-{[{[(2R)-2,3-DIHYDROXYPROPYL]OXY}(HYDROXY)PHOSPHORYL]OXY}-1-[(PALMITOYLOXY)METHYL]ETHYL STEARATE C₄₀ H₇₉ O₁₀ P KBPVYRBBONZJHF-AMAPPZPBSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain G [auth B] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain G [auth B]
LMT Query on LMT Download:Ideal Coordinates CCD File SDF format, chain H [auth C] MOL2 format, chain H [auth C] mmCIF format, chain H [auth C]	H [auth C]	DODECYL-BETA-D-MALTOSIDE C₂₄ H₄₆ O₁₁ NLEBIOOXCVAHBD-QKMCSOCLSA-N		Interactions Focus chain H [auth C] Interactions & Density Focus chain H [auth C]
ABU Query on ABU Download:Ideal Coordinates CCD File SDF format, chain F [auth A] MOL2 format, chain F [auth A] mmCIF format, chain F [auth A]	F [auth A]	GAMMA-AMINO-BUTANOIC ACID C₄ H₉ N O₂ BTCSSZJGUNDROE-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Interactions & Density Focus chain F [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.74 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-17

Deposition Author(s):

Gauthier-Manuel, L.

Funding Organization	Location	Grant Number
Other government		--

Revision History (Full details and data files)

Version 1.0: 2025-12-17
Type: Initial release
