9HI6 | pdb_00009hi6

Structure of scaffold FI6-focused design_04 in complex with FI6-Fab

PDB DOI: https://doi.org/10.2210/pdb9HI6/pdb

Classification: BIOSYNTHETIC PROTEIN
Organism(s): Homo sapiens, Bacteroides uniformis ATCC 8492
Expression System: Drosophila melanogaster, Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-11-24 Released: 2025-12-03
Deposition Author(s): Cramer, J.T., Krey, T.
Funding Organization(s): German Research Foundation (DFG)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.50 Å
R-Value Free:
0.204 (Depositor), 0.203 (DCC)
R-Value Work:
0.177 (Depositor), 0.178 (DCC)
R-Value Observed:
0.179 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9HI6

This is version 1.0 of the entry. See complete history.

Literature

Structure of scaffold FI6-focused design_04 in complex with FI6-Fab

Cramer, J.T., Krey, T.

To be published.

Macromolecule Content

Total Structure Weight: 74.6 kDa
Atom Count: 5,764
Modeled Residue Count: 651
Deposited Residue Count: 672
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

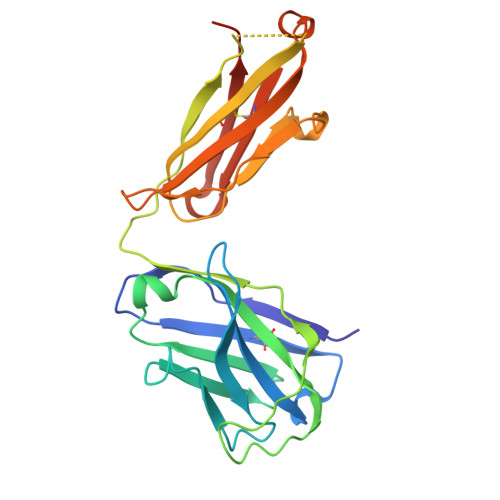

FI6 Fab Heavy Chain	A [auth H]	235	Homo sapiens	Mutation(s): 0

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
FI6-Fab Light Chain	B [auth L]	217	Homo sapiens	Mutation(s): 0

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

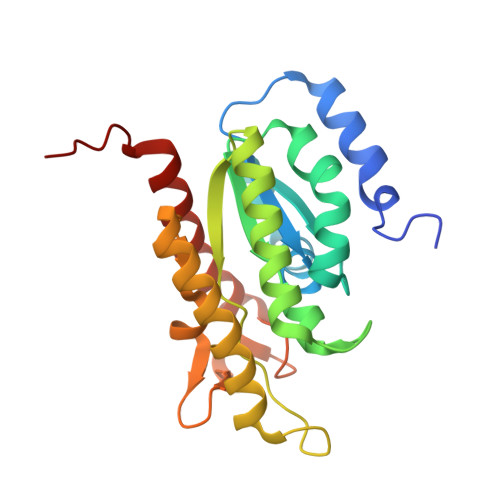

FI6-focused design_04	C [auth A]	220	Bacteroides uniformis ATCC 8492	Mutation(s): 0

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
CIT Query on CIT Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A]	D [auth A], E [auth A]	CITRIC ACID C₆ H₈ O₇ KRKNYBCHXYNGOX-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Interactions & Density Focus chain D [auth A] Focus chain E [auth A]
PEG Query on PEG Download:Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain G [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A]	F [auth A], G [auth A]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain G [auth A] Interactions & Density Focus chain F [auth A] Focus chain G [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.50 Å
R-Value Free: 0.204 (Depositor), 0.203 (DCC)
R-Value Work: 0.177 (Depositor), 0.178 (DCC)
R-Value Observed: 0.179 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 71.213	α = 90
b = 47.869	β = 106.13
c = 107.093	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
PHENIX	refinement
XDS	data reduction
XSCALE	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-03

Deposition Author(s):

Funding Organization	Location	Grant Number
German Research Foundation (DFG)	Germany	--

Revision History (Full details and data files)

Version 1.0: 2025-12-03
Type: Initial release
