9GV9 | pdb_00009gv9

Structure of Heparinase I from Bacteroides eggerthii in complex with calcium cofactor and delta-UA(1-4)Glc 3, 6, N-Sulphated disaccharide

PDB DOI: https://doi.org/10.2210/pdb9GV9/pdb

Classification: LYASE
Organism(s): Bacteroides eggerthii
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-09-23 Released: 2025-10-08
Deposition Author(s): Mycroft-West, C., Wu, L.
Funding Organization(s): Wellcome Trust

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.72 Å
R-Value Free:
0.241 (Depositor), 0.205 (DCC)
R-Value Work:
0.204 (Depositor), 0.205 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9GV9

This is version 1.0 of the entry. See complete history.

Literature

Bacteroides eggerthii heparin lyase I liberates the rare delta-GlcA(alpha1->4)Glc3,6,N-sulphated disaccharide motif contained within the pentasaccharide of the clinical anticoagulant fondaparinux sodium

Kandola, T.K., Mycroft-West, C., Andrade De Lima, M.L., Turner, A., Gardini, C., Urso, E., Miller, G.J., Bisio, A., Yates, E.A., Guerrini, M., Wu, L., Skidmore, M.A.

To be published.

Macromolecule Content

Total Structure Weight: 90.18 kDa
Atom Count: 6,647
Modeled Residue Count: 734
Deposited Residue Count: 764
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

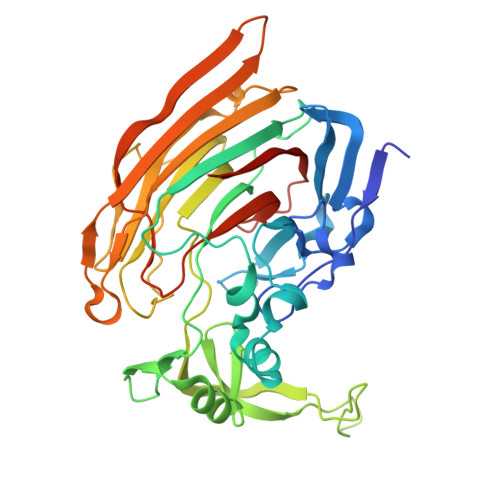

Heparin lyase I	A [auth B], B [auth A]	382	Bacteroides eggerthii	Mutation(s): 0 Gene Names: HMPREF1016_01920
UniProt
Find proteins for E5WZ15 (Bacteroides eggerthii 1_2_48FAA) Explore E5WZ15 Go to UniProtKB: E5WZ15
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	E5WZ15
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
4-deoxy-alpha-L-threo-hex-4-enopyranuronic acid-(1-4)-2-deoxy-3,6-di-O-sulfo-2-(sulfoamino)-alpha-D-glucopyranose	C [auth E], D [auth G]	2		N/A	Interactions Focus chain C [auth E] Focus chain D [auth G] Interactions & Density Focus chain C [auth E] Focus chain D [auth G]

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
SO4 Query on SO4 Download:Ideal Coordinates CCD File SDF format, chain I [auth B] SDF format, chain Z [auth A] SDF format, chain Y [auth A] SDF format, chain X [auth A] SDF format, chain W [auth A] SDF format, chain V [auth A] SDF format, chain U [auth A] SDF format, chain T [auth A] SDF format, chain S [auth A] SDF format, chain O [auth B] SDF format, chain N [auth B] SDF format, chain M [auth B] SDF format, chain L [auth B] SDF format, chain K [auth B] SDF format, chain J [auth B] MOL2 format, chain I [auth B] MOL2 format, chain Z [auth A] MOL2 format, chain Y [auth A] MOL2 format, chain X [auth A] MOL2 format, chain W [auth A] MOL2 format, chain V [auth A] MOL2 format, chain U [auth A] MOL2 format, chain T [auth A] MOL2 format, chain S [auth A] MOL2 format, chain O [auth B] MOL2 format, chain N [auth B] MOL2 format, chain M [auth B] MOL2 format, chain L [auth B] MOL2 format, chain K [auth B] MOL2 format, chain J [auth B] mmCIF format, chain I [auth B] mmCIF format, chain Z [auth A] mmCIF format, chain Y [auth A] mmCIF format, chain X [auth A] mmCIF format, chain W [auth A] mmCIF format, chain V [auth A] mmCIF format, chain U [auth A] mmCIF format, chain T [auth A] mmCIF format, chain S [auth A] mmCIF format, chain O [auth B] mmCIF format, chain N [auth B] mmCIF format, chain M [auth B] mmCIF format, chain L [auth B] mmCIF format, chain K [auth B] mmCIF format, chain J [auth B]	I [auth B] J [auth B] K [auth B] L [auth B] M [auth B] I [auth B], J [auth B], K [auth B], L [auth B], M [auth B], N [auth B], O [auth B], S [auth A], T [auth A], U [auth A], V [auth A], W [auth A], X [auth A], Y [auth A], Z [auth A]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth B] Focus chain S [auth A] Focus chain T [auth A] Focus chain U [auth A] Focus chain V [auth A] Focus chain W [auth A] Focus chain X [auth A] Focus chain Y [auth A] Focus chain Z [auth A] Interactions & Density Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Focus chain M [auth B] Focus chain N [auth B] Focus chain O [auth B] Focus chain S [auth A] Focus chain T [auth A] Focus chain U [auth A] Focus chain V [auth A] Focus chain W [auth A] Focus chain X [auth A] Focus chain Y [auth A] Focus chain Z [auth A]
ACT Query on ACT Download:Ideal Coordinates CCD File SDF format, chain R [auth A] SDF format, chain Q [auth A] SDF format, chain H [auth B] SDF format, chain G [auth B] SDF format, chain F [auth B] SDF format, chain E [auth B] MOL2 format, chain R [auth A] MOL2 format, chain Q [auth A] MOL2 format, chain H [auth B] MOL2 format, chain G [auth B] MOL2 format, chain F [auth B] MOL2 format, chain E [auth B] mmCIF format, chain R [auth A] mmCIF format, chain Q [auth A] mmCIF format, chain H [auth B] mmCIF format, chain G [auth B] mmCIF format, chain F [auth B] mmCIF format, chain E [auth B]	E [auth B] F [auth B] G [auth B] H [auth B] Q [auth A] E [auth B], F [auth B], G [auth B], H [auth B], Q [auth A], R [auth A]	ACETATE ION C₂ H₃ O₂ QTBSBXVTEAMEQO-UHFFFAOYSA-M		Interactions Focus chain E [auth B] Focus chain F [auth B] Focus chain G [auth B] Focus chain H [auth B] Focus chain Q [auth A] Focus chain R [auth A] Interactions & Density Focus chain E [auth B] Focus chain F [auth B] Focus chain G [auth B] Focus chain H [auth B] Focus chain Q [auth A] Focus chain R [auth A]
CA Query on CA Download:Ideal Coordinates CCD File SDF format, chain P [auth B] SDF format, chain AA [auth A] MOL2 format, chain P [auth B] MOL2 format, chain AA [auth A] mmCIF format, chain P [auth B] mmCIF format, chain AA [auth A]	AA [auth A], P [auth B]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N		Interactions Focus chain AA [auth A] Focus chain P [auth B] Interactions & Density Focus chain AA [auth A] Focus chain P [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.72 Å
R-Value Free: 0.241 (Depositor), 0.205 (DCC)
R-Value Work: 0.204 (Depositor), 0.205 (DCC)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 139.59	α = 90
b = 91.563	β = 95.593
c = 73.443	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
autoPROC	data reduction
STARANISO	data scaling
MOLREP	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-10-08

Deposition Author(s):

Mycroft-West, C.

Funding Organization	Location	Grant Number
Wellcome Trust	United Kingdom	218579/Z/19/Z

Revision History (Full details and data files)

Version 1.0: 2025-10-08
Type: Initial release
