9GEI | pdb_00009gei

Entamoeba histolytica Gal/GalNAc lectin heavy chain residues 808-992 in the presence of monoclonal antibody CP33-H/L-LA22

PDB DOI: https://doi.org/10.2210/pdb9GEI/pdb

Classification: CELL ADHESION
Organism(s): Entamoeba histolytica, Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-08-07 Released: 2026-02-11
Deposition Author(s): Gerard, S.F., Higgins, M.K.
Funding Organization(s): Wellcome Trust

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 3.03 Å
R-Value Free:
0.277 (Depositor), 0.290 (DCC)
R-Value Work:
0.241 (Depositor), 0.243 (DCC)
R-Value Observed:
0.243 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structural basis for carbohydrate recognition by the Gal/GalNAc lectin of Entamoeba histolytica

Gerard, S.F., Higgins, M.K.

To be published.

Macromolecule Content

Total Structure Weight: 97.08 kDa
Atom Count: 6,268
Modeled Residue Count: 800
Deposited Residue Count: 882
Unique protein chains: 2

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Galactose/N-acetyl-D-galactosamine lectin heavy subunit 1	A, C	188	Entamoeba histolytica	Mutation(s): 0 Gene Names: hgl1, EHI_133900
UniProt
Find proteins for P32022 (Entamoeba histolytica (strain ATCC 30459 / HM-1:IMSS / ABRM)) Explore P32022 Go to UniProtKB: P32022
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P32022
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

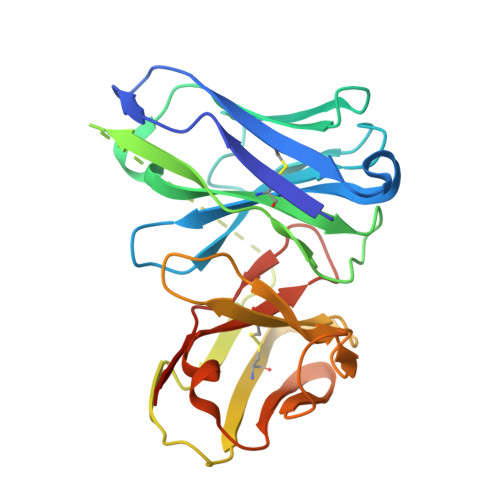

CP33-H/L-LA22	B, D	253	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 3.03 Å
R-Value Free: 0.277 (Depositor), 0.290 (DCC)
R-Value Work: 0.241 (Depositor), 0.243 (DCC)
R-Value Observed: 0.243 (Depositor)

Space Group: P 2₁ 2₁ 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 134.099	α = 90
b = 151.982	β = 90
c = 60.295	γ = 90

Software Package:

Software Name	Purpose
BUSTER	refinement
PDB_EXTRACT	data extraction
XDS	data reduction
STARANISO	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2026-02-11

Deposition Author(s):

Funding Organization	Location	Grant Number
Wellcome Trust	United Kingdom	--

Revision History (Full details and data files)

Version 1.0: 2026-02-11
Type: Initial release
