9G7T | pdb_00009g7t

Solution NMR structure of a peptide encompassing residues 967-991 of the human formin INF2


Experimental Data Snapshot

  • Method: SOLUTION NMR
  • Conformers Calculated: 100
  • Conformers Submitted: 20
  • Selection Criteria: target function

wwPDB Validation 3D Report Full Report

Validation slider image for 9G7T

This is version 1.1 of the entry. See complete history

Literature

Structural and functional dissection of the WH2/DAD motif of INF2, a formin linked to human inherited degenerative disorders.

Labat-de-Hoz, L.Fernandez-Martin, L.Morales, P.Correas, I.Jimenez, M.A.Alonso, M.A.

(2026) FEBS J 293: 825-841

  • DOI: https://doi.org/10.1111/febs.70271
  • Primary Citation Related Structures:
    9G7T, 9RWF

  • PubMed Abstract:

    Inverted formin-2 (INF2), a formin linked to inherited renal and neurological disorders, exhibits pathogenic variants that lead to deregulated actin polymerization and nuclear aberrations, ultimately compromising cell viability. Most formins contain a diaphanous autoregulatory domain (DAD) and a diaphanous inhibitory domain (DID), which interact to keep the molecule in an inactive state. The DAD consists of a short sequence with an N-terminal region rich in hydrophobic residues and a C-terminal segment abundant in basic residues, resembling WASP homology 2 (WH2) actin-binding domains. Based on its sequence and actin-binding ability, the DAD of INF2 qualifies as a WH2 motif. In this study, we investigated the structure of the INF2 WH2/DAD by nuclear magnetic resonance (NMR) and explored its functional role. Our analysis revealed that the WH2/DAD forms a single α-helix in both H 2 O and 30% 2,2,2-trifluoroethanol that differs from the conformations observed in WH2-actin and DAD-DID crystal structures. Cells expressing INF2 containing only the hydrophobic region of the WH2/DAD exhibited higher F-actin levels and frequencies of nuclear abnormalities, phenocopying the effect of pathogenic INF2 DID variants. In contrast, deletion of the entire WH2/DAD, or of the hydrophobic region alone, abolishes INF2 activity. Neither these deletions nor WH2/DAD variants carrying naturally occurring missense mutations induced any detectable nuclear effects. These findings suggest that the WH2/DAD undergoes a conformational change to facilitate actin binding and that the hydrophobic region is essential for INF2-mediated actin polymerization. INF2 WH2/DAD variants with deleterious cellular effects appear to be rare in, or absent from, the human population.


  • Organizational Affiliation
    • Centro de Biología Molecular Severo Ochoa (CBMSO), Consejo Superior de Investigaciones Científicas (CSIC) and Universidad Autónoma de Madrid (UAM), Spain.

Macromolecule Content

  • Total Structure Weight: 2.89 kDa
  • Atom Count: 200
  • Modeled Residue Count: 25
  • Deposited Residue Count: 27
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure

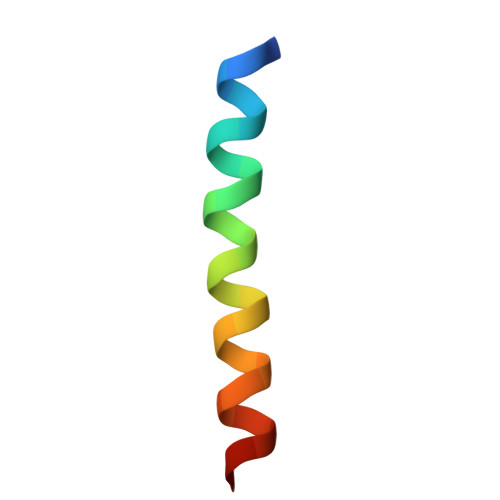

Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Inverted formin-227Homo sapiensMutation(s): 0
UniProt & NIH Common Fund Data Resources
Find proteins for Q27J81 (Homo sapiens)
Explore Q27J81
Go to UniProtKB:  Q27J81
PHAROS:  Q27J81
GTEx:  ENSG00000203485
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ27J81
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: SOLUTION NMR
  • Conformers Calculated: 100
  • Conformers Submitted: 20
  • Selection Criteria: target function

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Comunidad de MadridSpainB2017/BMD-3817

Revision History  (Full details and data files)

  • Version 1.0: 2025-11-26
    Type: Initial release
  • Version 1.1: 2026-02-18
    Changes: Database references
