9G2F | pdb_00009g2f

Mouse Teneurin2 dimer variant A1B1

PDB DOI: https://doi.org/10.2210/pdb9G2F/pdb
EM Map EMD-50975: EMDB EMDataResource

Classification: CELL ADHESION
Organism(s): Mus musculus
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-07-10 Released: 2026-01-21
Deposition Author(s): Berbeira-Santana, M., Zhou, J.C., el Omari, K., Baker, L., Seiradake, E.
Funding Organization(s): Wellcome Trust

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.80 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9G2F

This is version 1.0 of the entry. See complete history.

Literature

Mouse Teneurin2 dimer variant A1B1

Berbeira-Santana, M., Zhou, C.J., el Omari, K., Baker, L., Seiradake, E.

To be published.

Macromolecule Content

Total Structure Weight: 543.35 kDa
Atom Count: 28,158
Modeled Residue Count: 3,504
Deposited Residue Count: 4,820
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

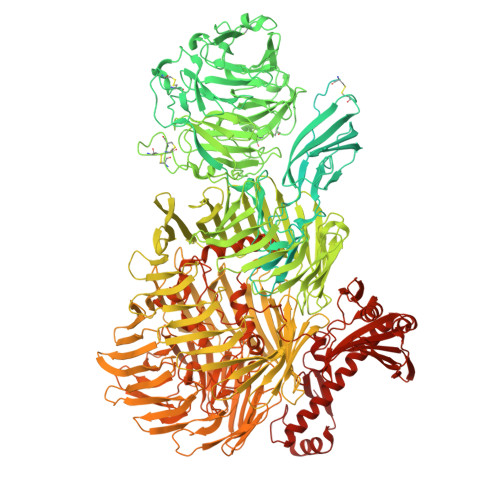

Teneurin transmembrane protein 2	A, B	2,410	Mus musculus	Mutation(s): 0 Gene Names: Tenm2
UniProt
Find proteins for A0A0A0MQB7 (Mus musculus) Explore A0A0A0MQB7 Go to UniProtKB: A0A0A0MQB7
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A0A0MQB7
Glycosylation
Glycosylation Sites: 8	Glycosylation Focus chain A Focus chain B
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	C, F, G, H, K C, F, G, H, K, L	2		N-Glycosylation	Interactions Focus chain C Focus chain F Focus chain G Focus chain H Focus chain K Focus chain L Interactions & Density Focus chain C Focus chain F Focus chain G Focus chain H Focus chain K Focus chain L
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D, I	5		N-Glycosylation	Interactions Focus chain D Focus chain I Interactions & Density Focus chain D Focus chain I
Glycosylation Resources
GlyTouCan: G42227JK GlyCosmos: G42227JK GlyGen: G42227JK

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	E, J	4		N-Glycosylation	Interactions Focus chain E Focus chain J Interactions & Density Focus chain E Focus chain J
Glycosylation Resources
GlyTouCan: G81315DD GlyCosmos: G81315DD GlyGen: G81315DD

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain R [auth B] SDF format, chain Q [auth B] SDF format, chain P [auth B] SDF format, chain O [auth A] SDF format, chain N [auth A] SDF format, chain M [auth A] MOL2 format, chain R [auth B] MOL2 format, chain Q [auth B] MOL2 format, chain P [auth B] MOL2 format, chain O [auth A] MOL2 format, chain N [auth A] MOL2 format, chain M [auth A] mmCIF format, chain R [auth B] mmCIF format, chain Q [auth B] mmCIF format, chain P [auth B] mmCIF format, chain O [auth A] mmCIF format, chain N [auth A] mmCIF format, chain M [auth A]	M [auth A] N [auth A] O [auth A] P [auth B] Q [auth B] M [auth A], N [auth A], O [auth A], P [auth B], Q [auth B], R [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth B] Focus chain Q [auth B] Focus chain R [auth B] Interactions & Density Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth B] Focus chain Q [auth B] Focus chain R [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.80 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487:

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-01-21

Deposition Author(s):

Berbeira-Santana, M.

Funding Organization	Location	Grant Number
Wellcome Trust	United Kingdom	226647/Z/22/Z

Revision History (Full details and data files)

Version 1.0: 2026-01-21
Type: Initial release
