9FP9 | pdb_00009fp9

Three-dimensional structure of the Merozoite surface protein 1 C-terminal domain

PDB DOI: https://doi.org/10.2210/pdb9FP9/pdb
BMRB: 34920

Classification: MEMBRANE PROTEIN
Organism(s): Plasmodium berghei
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2024-06-13 Released: 2025-12-24
Deposition Author(s): Bier, N., Ramadan, S., Nedielkov, R., Klishin, N., Moeller, H.M.
Funding Organization(s): Max Planck Society

Experimental Data Snapshot

Method: SOLUTION NMR
Conformers Calculated: 100
Conformers Submitted: 20
Selection Criteria: structures with the least restraint violations

wwPDB Validation 3D Report Full Report

Validation slider image for 9FP9

This is version 1.0 of the entry. See complete history.

Literature

Three-dimensional structure of the Merozoite surface protein 1 C-terminal domain from P. berghei

Bier, N., Ramadan, S., Nedielkov, R., Klishin, N., Moeller, H.M.

To be published.

Macromolecule Content

Total Structure Weight: 11.46 kDa
Atom Count: 791
Modeled Residue Count: 104
Deposited Residue Count: 104
Unique protein chains: 1

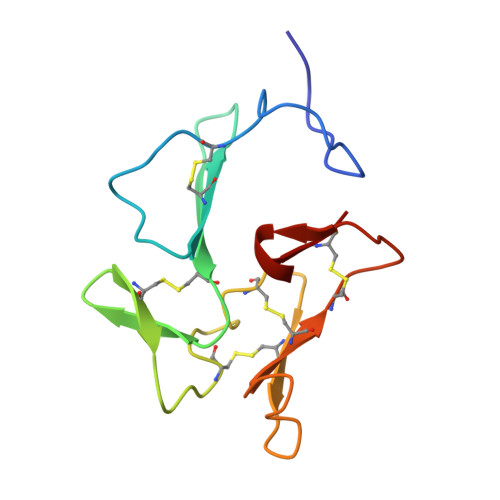

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Merozoite surface protein 1	A	104	Plasmodium berghei	Mutation(s): 2 Gene Names: MSP1, PBNK65NY_000166300
UniProt
Find proteins for A0A1C6YE36 (Plasmodium berghei) Explore A0A1C6YE36 Go to UniProtKB: A0A1C6YE36
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A1C6YE36
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: SOLUTION NMR
Conformers Calculated: 100
Conformers Submitted: 20
Selection Criteria: structures with the least restraint violations

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-24

Deposition Author(s):

Funding Organization	Location	Grant Number
Max Planck Society	Germany	IMPRS Multiscale Biosystems

Revision History (Full details and data files)

Version 1.0: 2025-12-24
Type: Initial release
