9FD1 | pdb_00009fd1

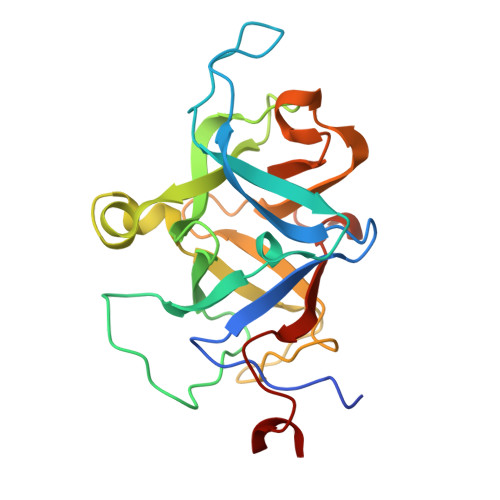

Structure of the Chaetomium thermophilum Pmt4-MIR domain with bound ligands

PDB DOI: https://doi.org/10.2210/pdb9FD1/pdb

Classification: PEPTIDE BINDING PROTEIN
Organism(s): Chaetomium
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-05-16 Released: 2025-11-26
Deposition Author(s): McDowell, M., Wild, K., Sinning, I.
Funding Organization(s): German Research Foundation (DFG)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.22 Å
R-Value Free:
0.140 (Depositor), 0.138 (DCC)
R-Value Work:
0.111 (Depositor), 0.112 (DCC)
R-Value Observed:
0.112 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structure of Pmt4 from Chaetomium thermophilum

McDowell, M., Sinning, I.

To be published.

Macromolecule Content

Total Structure Weight: 25.69 kDa
Atom Count: 2,156
Modeled Residue Count: 204
Deposited Residue Count: 211
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Dolichyl-phosphate-mannose--protein mannosyltransferase	A	211	Chaetomium	Mutation(s): 0 Gene Names: CTHT_0059600 EC: 2.4.1.109
UniProt
Find proteins for G0SET1 (Chaetomium thermophilum (strain DSM 1495 / CBS 144.50 / IMI 039719)) Explore G0SET1 Go to UniProtKB: G0SET1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	G0SET1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
EDO Query on EDO Download Ideal Coordinates CCD File SDF format, chain R [auth A] SDF format, chain Q [auth A] SDF format, chain P [auth A] SDF format, chain O [auth A] SDF format, chain N [auth A] SDF format, chain M [auth A] SDF format, chain L [auth A] SDF format, chain K [auth A] SDF format, chain J [auth A] SDF format, chain I [auth A] SDF format, chain H [auth A] SDF format, chain B [auth A] MOL2 format, chain R [auth A] MOL2 format, chain Q [auth A] MOL2 format, chain P [auth A] MOL2 format, chain O [auth A] MOL2 format, chain N [auth A] MOL2 format, chain M [auth A] MOL2 format, chain L [auth A] MOL2 format, chain K [auth A] MOL2 format, chain J [auth A] MOL2 format, chain I [auth A] MOL2 format, chain H [auth A] MOL2 format, chain B [auth A] mmCIF format, chain R [auth A] mmCIF format, chain Q [auth A] mmCIF format, chain P [auth A] mmCIF format, chain O [auth A] mmCIF format, chain N [auth A] mmCIF format, chain M [auth A] mmCIF format, chain L [auth A] mmCIF format, chain K [auth A] mmCIF format, chain J [auth A] mmCIF format, chain I [auth A] mmCIF format, chain H [auth A] mmCIF format, chain B [auth A]	B [auth A] H [auth A] I [auth A] J [auth A] K [auth A] B [auth A], H [auth A], I [auth A], J [auth A], K [auth A], L [auth A], M [auth A], N [auth A], O [auth A], P [auth A], Q [auth A], R [auth A]	1,2-ETHANEDIOL C₂ H₆ O₂ LYCAIKOWRPUZTN-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth A] Interactions & Density Focus chain B [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth A]
ACT Query on ACT Download Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain F [auth A] SDF format, chain E [auth A] SDF format, chain D [auth A] SDF format, chain C [auth A] MOL2 format, chain G [auth A] MOL2 format, chain F [auth A] MOL2 format, chain E [auth A] MOL2 format, chain D [auth A] MOL2 format, chain C [auth A] mmCIF format, chain G [auth A] mmCIF format, chain F [auth A] mmCIF format, chain E [auth A] mmCIF format, chain D [auth A] mmCIF format, chain C [auth A]	C [auth A], D [auth A], E [auth A], F [auth A], G [auth A]	ACETATE ION C₂ H₃ O₂ QTBSBXVTEAMEQO-UHFFFAOYSA-M		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A]
NA Query on NA Download Ideal Coordinates CCD File SDF format, chain S [auth A] MOL2 format, chain S [auth A] mmCIF format, chain S [auth A]	S [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain S [auth A] Interactions & Density Focus chain S [auth A]
