9FC0 | pdb_00009fc0

Dye-decolourising peroxidase DtpB mixed with hydrogen peroxide for 2.7 s

PDB DOI: https://doi.org/10.2210/pdb9FC0/pdb

Classification: OXIDOREDUCTASE
Organism(s): Streptomyces lividans 1326
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-05-15 Released: 2025-05-28
Deposition Author(s): Lucic, M., Worrall, J.A.R., Hough, M.A., Owen, R.L., Devenish, N.
Funding Organization(s): Biotechnology and Biological Sciences Research Council (BBSRC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.96 Å
R-Value Free:
0.207 (Depositor), 0.210 (DCC)
R-Value Work:
0.178 (Depositor), 0.183 (DCC)
R-Value Observed:
0.180 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Dye-decolourising peroxidase DtpB mixed with hydrogen peroxide for 2.7 s

Lucic, M., Worrall, J.A.R., Hough, M.A., Owen, R.L., Devenish, N.

To be published.

Macromolecule Content

Total Structure Weight: 206.9 kDa
Atom Count: 15,001
Modeled Residue Count: 1,833
Deposited Residue Count: 1,878
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

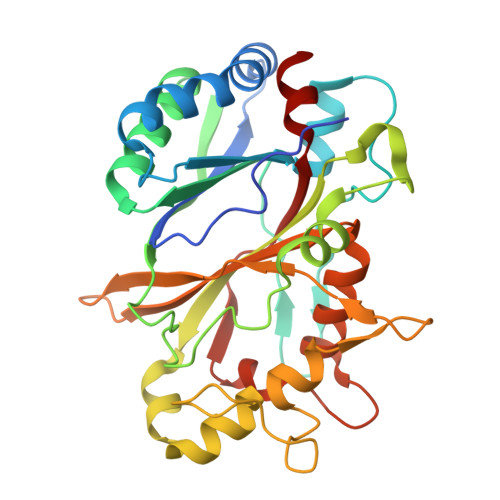

Putative dye-decolorizing peroxidase (DyP), encapsulated subgroup	A, B, C, D, E A, B, C, D, E, F	313	Streptomyces lividans 1326	Mutation(s): 0 Gene Names: SLI_7409
UniProt
Find proteins for A0A7U9HFU5 (Streptomyces lividans 1326) Explore A0A7U9HFU5 Go to UniProtKB: A0A7U9HFU5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A7U9HFU5
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
HEM (Subject of Investigation/LOI) Query on HEM Download:Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain J [auth B] SDF format, chain L [auth C] SDF format, chain N [auth D] SDF format, chain P [auth E] SDF format, chain R [auth F] MOL2 format, chain G [auth A] MOL2 format, chain J [auth B] MOL2 format, chain L [auth C] MOL2 format, chain N [auth D] MOL2 format, chain P [auth E] MOL2 format, chain R [auth F] mmCIF format, chain G [auth A] mmCIF format, chain J [auth B] mmCIF format, chain L [auth C] mmCIF format, chain N [auth D] mmCIF format, chain P [auth E] mmCIF format, chain R [auth F]	G [auth A] J [auth B] L [auth C] N [auth D] P [auth E] G [auth A], J [auth B], L [auth C], N [auth D], P [auth E], R [auth F]	PROTOPORPHYRIN IX CONTAINING FE C₃₄ H₃₂ Fe N₄ O₄ KABFMIBPWCXCRK-RGGAHWMASA-L		Interactions Focus chain G [auth A] Focus chain J [auth B] Focus chain L [auth C] Focus chain N [auth D] Focus chain P [auth E] Focus chain R [auth F] Interactions & Density Focus chain G [auth A] Focus chain J [auth B] Focus chain L [auth C] Focus chain N [auth D] Focus chain P [auth E] Focus chain R [auth F]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain I [auth A] MOL2 format, chain I [auth A] mmCIF format, chain I [auth A]	I [auth A]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain I [auth A] Interactions & Density Focus chain I [auth A]
O (Subject of Investigation/LOI) Query on O Download:Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain O [auth D] SDF format, chain Q [auth E] SDF format, chain S [auth F] SDF format, chain M [auth C] SDF format, chain K [auth B] MOL2 format, chain H [auth A] MOL2 format, chain O [auth D] MOL2 format, chain Q [auth E] MOL2 format, chain S [auth F] MOL2 format, chain M [auth C] MOL2 format, chain K [auth B] mmCIF format, chain H [auth A] mmCIF format, chain O [auth D] mmCIF format, chain Q [auth E] mmCIF format, chain S [auth F] mmCIF format, chain M [auth C] mmCIF format, chain K [auth B]	H [auth A] K [auth B] M [auth C] O [auth D] Q [auth E] H [auth A], K [auth B], M [auth C], O [auth D], Q [auth E], S [auth F]	OXYGEN ATOM O XLYOFNOQVPJJNP-UHFFFAOYSA-N		Interactions Focus chain H [auth A] Focus chain K [auth B] Focus chain M [auth C] Focus chain O [auth D] Focus chain Q [auth E] Focus chain S [auth F] Interactions & Density Focus chain H [auth A] Focus chain K [auth B] Focus chain M [auth C] Focus chain O [auth D] Focus chain Q [auth E] Focus chain S [auth F]
