9FAV | pdb_00009fav

CryoEM structure of human full-length beta3gamma2 GABA(A) receptor in complex with GARLH4, the TMD of Neuroligin2 and Megabody25, in a closed state (StateC2)

  • Classification: MEMBRANE PROTEIN
  • Organism(s): Homo sapiens, Lama glama
  • Expression System: Homo sapiens, Escherichia coli
  • Mutation(s): No

  • Deposited: 2024-05-10 Released: 2025-07-02
  • Deposition Author(s): Kasaragod, V.B., Aricescu, A.R.
  • Funding Organization(s): Medical Research Council (MRC, United Kingdom), European Molecular Biology Organization (EMBO), H2020 Marie Curie Actions of the European Commission, National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), National Science Foundation (NSF, United States)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.20 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9FAV

This is version 1.0 of the entry. See complete history.

Literature

CryoEM structure of human full-length beta3gamma2 GABA(A) receptor in complex with GARLH4, the TMD of Neuroligin2 and Megabody25, in a closed state (StateC2)

Kasaragod, V.B., Aricescu, A.R.

To be published.

Macromolecule Content

  • Total Structure Weight: 453.82 kDa
  • Atom Count: 18,975
  • Modeled Residue Count: 2,240
  • Deposited Residue Count: 3,945
  • Unique protein chains: 5

Macromolecules

Find similar proteins by:
|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

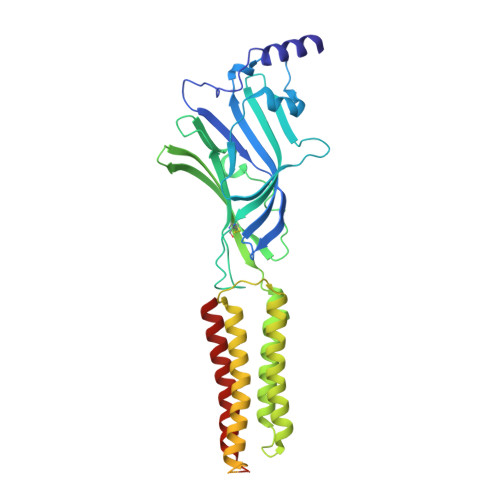

Gamma-aminobutyric acid receptor subunit beta-3A [auth B],
B [auth E],
C [auth A],
D		439Homo sapiensMutation(s): 0
Gene Names: GABRB3
UniProt & NIH Common Fund Data Resources
Find proteins for P28472 (Homo sapiens)
Explore P28472
Go to UniProtKB:  P28472
PHAROS:  P28472
GTEx:  ENSG00000166206
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28472
Glycosylation
Glycosylation Sites: 1
Go to GlyGen: P28472-1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

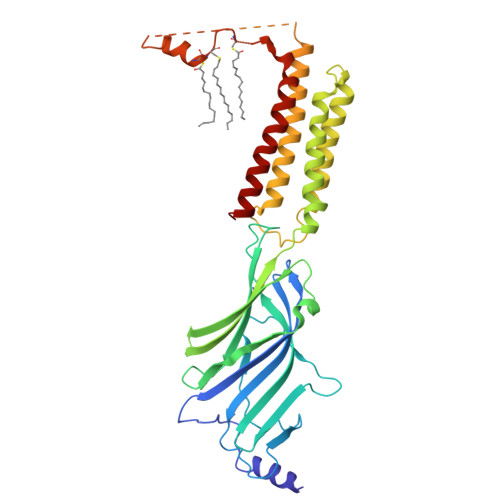

Isoform 2 of Gamma-aminobutyric acid receptor subunit gamma-2E [auth C]405Homo sapiensMutation(s): 0
Gene Names: GABRG2
UniProt & NIH Common Fund Data Resources
Find proteins for P18507 (Homo sapiens)
Explore P18507
Go to UniProtKB:  P18507
PHAROS:  P18507
GTEx:  ENSG00000113327
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP18507
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
Neuroligin-2F [auth H]33Homo sapiensMutation(s): 0
Gene Names: NLGN2, KIAA1366
UniProt & NIH Common Fund Data Resources
Find proteins for Q8NFZ4 (Homo sapiens)
Explore Q8NFZ4
Go to UniProtKB:  Q8NFZ4
PHAROS:  Q8NFZ4
GTEx:  ENSG00000169992
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8NFZ4
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
LHFPL tetraspan subfamily member 4 proteinG [auth L]185Homo sapiensMutation(s): 0
Gene Names: LHFPL4, GARLH4
UniProt & NIH Common Fund Data Resources
Find proteins for Q7Z7J7 (Homo sapiens)
Explore Q7Z7J7
Go to UniProtKB:  Q7Z7J7
PHAROS:  Q7Z7J7
GTEx:  ENSG00000156959
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ7Z7J7
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
Megabody25H [auth K],
I [auth O],
J [auth F]		522Lama glamaMutation(s): 0

Oligosaccharides

Help
Entity ID: 6
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseK [auth G],
O [auth N]		3N-Glycosylation
Glycosylation Resources
GlyTouCan: G15407YE
GlyCosmos: G15407YE
GlyGen: G15407YE
Entity ID: 7
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseL [auth I]7N-Glycosylation
Glycosylation Resources
GlyTouCan: G55220VL
GlyCosmos: G55220VL
GlyGen: G55220VL
Entity ID: 8
MoleculeChains Length2D Diagram GlycosylationD Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseM [auth J],
Q		2N-Glycosylation
Glycosylation Resources
GlyTouCan: G42666HT
GlyCosmos: G42666HT
GlyGen: G42666HT
Entity ID: 9
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseN [auth M]6N/A
Glycosylation Resources
GlyTouCan: G09724ZC
GlyCosmos: G09724ZC
GlyGen: G09724ZC
Entity ID: 10
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
P
8N-Glycosylation
Glycosylation Resources
GlyTouCan: G34499SX
GlyCosmos: G34499SX
GlyGen: G34499SX
Entity ID: 11
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
R
5N/A
Glycosylation Resources
GlyTouCan: G22768VO
GlyCosmos: G22768VO
GlyGen: G22768VO

Small Molecules

Ligands 7 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
PGW

Query on PGW


Download:Ideal Coordinates CCD File
W [auth B](1R)-2-{[(S)-{[(2S)-2,3-dihydroxypropyl]oxy}(hydroxy)phosphoryl]oxy}-1-[(hexadecanoyloxy)methyl]ethyl (9Z)-octadec-9-enoate
C40 H77 O10 P
PAZGBAOHGQRCBP-HGWHEPCSSA-N
PX2

Query on PX2


Download:Ideal Coordinates CCD File
CA [auth D]1,2-DILAUROYL-SN-GLYCERO-3-PHOSPHATE
C27 H52 O8 P
OKLASJZQBDJAPH-RUZDIDTESA-M
CLR
(Subject of Investigation/LOI)

Query on CLR


Download:Ideal Coordinates CCD File
HA [auth C]CHOLESTEROL
C27 H46 O
HVYWMOMLDIMFJA-DPAQBDIFSA-N
R16

Query on R16


Download:Ideal Coordinates CCD File
EA [auth C],
FA [auth C],
V [auth B]		HEXADECANE
C16 H34
DCAYPVUWAIABOU-UHFFFAOYSA-N
NAG

Query on NAG


Download:Ideal Coordinates CCD File
DA [auth C]2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
D10

Query on D10


Download:Ideal Coordinates CCD File
AA [auth A],
GA [auth C],
U [auth B],
Z [auth E]		DECANE
C10 H22
DIOQZVSQGTUSAI-UHFFFAOYSA-N
HEX

Query on HEX


Download:Ideal Coordinates CCD File
BA [auth A],
S [auth B],
T [auth B],
X [auth E],
Y [auth E]		HEXANE
C6 H14
VLKZOEOYAKHREP-UHFFFAOYSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
P1L
Query on P1L		E [auth C]L-PEPTIDE LINKINGC19 H37 N O3 SCYS

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.20 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC4.40
MODEL REFINEMENTPHENIX19.2

Structure Validation

View Full Validation Report



View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Funding OrganizationLocationGrant Number
Medical Research Council (MRC, United Kingdom)United KingdomMC_UP_1201/15
European Molecular Biology Organization (EMBO)European UnionALTF137-2019
H2020 Marie Curie Actions of the European CommissionEuropean UnionGABAARComp-897707
Medical Research Council (MRC, United Kingdom)United KingdomMR/L009609/1
Medical Research Council (MRC, United Kingdom)United KingdomMC_EX_MR/T046279/1
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United States1R01-GM135550
National Science Foundation (NSF, United States)United StatesNeuroNex 2014862

Revision History  (Full details and data files)

  • Version 1.0: 2025-07-02
    Type: Initial release
