9DWA | pdb_00009dwa

Crystal structure of FABLE, MPD condition

PDB DOI: https://doi.org/10.2210/pdb9DWA/pdb

Classification: DE NOVO PROTEIN
Organism(s): synthetic construct
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-10-09 Released: 2025-08-20
Deposition Author(s): Correy, G.J., Fraser, J.S.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.85 Å
R-Value Free:
0.241 (Depositor), 0.224 (DCC)
R-Value Work:
0.191 (Depositor)
R-Value Observed:
0.194 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9DWA

This is version 1.0 of the entry. See complete history.

Literature

Fragment screen against ABLE

Correy, G.J., Fraser, J.S.

To be published.

Macromolecule Content

Total Structure Weight: 28.95 kDa
Atom Count: 2,175
Modeled Residue Count: 252
Deposited Residue Count: 252
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

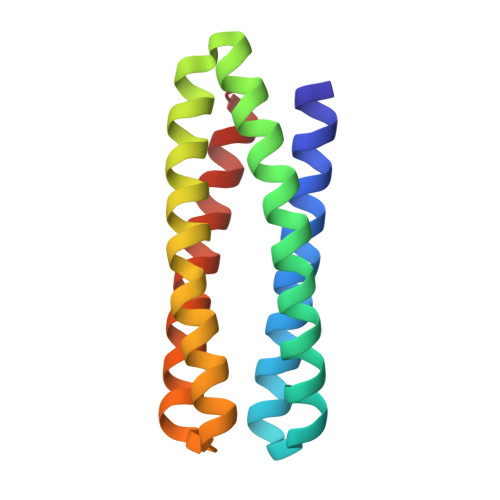

De novo designed FABLE protein	A, B	126	synthetic construct	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
MPD Query on MPD Download:Ideal Coordinates CCD File SDF format, chain L [auth B] SDF format, chain K [auth B] SDF format, chain J [auth B] SDF format, chain I [auth B] SDF format, chain H [auth B] SDF format, chain G [auth A] SDF format, chain F [auth A] SDF format, chain E [auth A] SDF format, chain D [auth A] SDF format, chain C [auth A] MOL2 format, chain L [auth B] MOL2 format, chain K [auth B] MOL2 format, chain J [auth B] MOL2 format, chain I [auth B] MOL2 format, chain H [auth B] MOL2 format, chain G [auth A] MOL2 format, chain F [auth A] MOL2 format, chain E [auth A] MOL2 format, chain D [auth A] MOL2 format, chain C [auth A] mmCIF format, chain L [auth B] mmCIF format, chain K [auth B] mmCIF format, chain J [auth B] mmCIF format, chain I [auth B] mmCIF format, chain H [auth B] mmCIF format, chain G [auth A] mmCIF format, chain F [auth A] mmCIF format, chain E [auth A] mmCIF format, chain D [auth A] mmCIF format, chain C [auth A]	C [auth A] D [auth A] E [auth A] F [auth A] G [auth A] C [auth A], D [auth A], E [auth A], F [auth A], G [auth A], H [auth B], I [auth B], J [auth B], K [auth B], L [auth B]	(4S)-2-METHYL-2,4-PENTANEDIOL C₆ H₁₄ O₂ SVTBMSDMJJWYQN-YFKPBYRVSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.85 Å
R-Value Free: 0.241 (Depositor), 0.224 (DCC)
R-Value Work: 0.191 (Depositor)
R-Value Observed: 0.194 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 49.379	α = 90
b = 43.933	β = 97.84
c = 65.268	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data scaling
XDS	data reduction
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-08-20

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	GM145238

Revision History (Full details and data files)

Version 1.0: 2025-08-20
Type: Initial release
