9DSU | pdb_00009dsu

Crystal structure of Fab 7088 in complex with N-terminal junction peptide from circumsporozoite protein

PDB DOI: https://doi.org/10.2210/pdb9DSU/pdb

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens, Plasmodium falciparum 3D7
Expression System: Cricetulus griseus, synthetic construct
Mutation(s): No

Deposited: 2024-09-28 Released: 2025-10-01
Deposition Author(s): Jain, M., Wilson, I.A.
Funding Organization(s): Bill & Melinda Gates Foundation

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 3.14 Å
R-Value Free:
0.275 (Depositor), 0.274 (DCC)
R-Value Work:
0.233 (Depositor), 0.232 (DCC)
R-Value Observed:
0.237 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of Fab 7088 in complex with N-terminal junction peptide from circumsporozoite protein

Jain, M., Wilson, I.A.

To be published.

Macromolecule Content

Total Structure Weight: 49.49 kDa
Atom Count: 3,356
Modeled Residue Count: 440
Deposited Residue Count: 458
Unique protein chains: 3

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

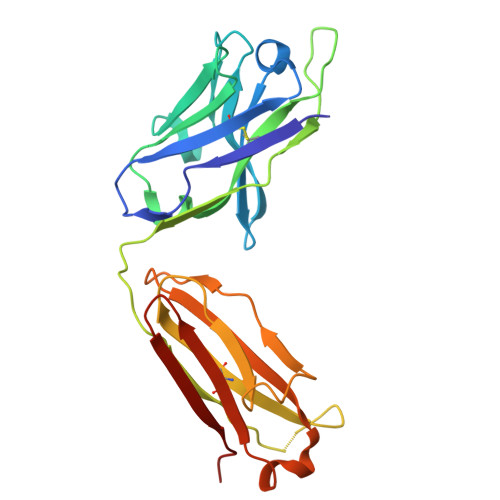

Light Chain of Fab 7088	A [auth B]	215	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Heavy chain of Fab 7088	B [auth C]	227	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

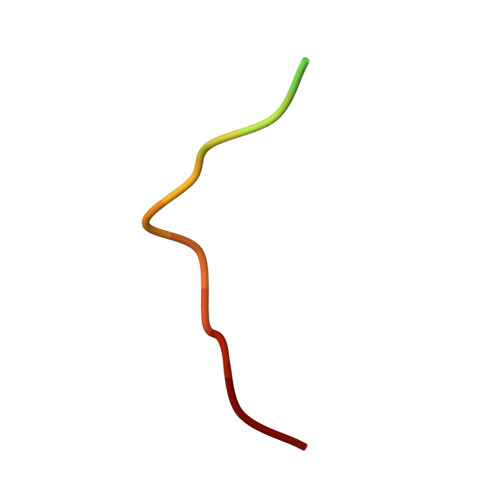

Circumsporozoite protein	C [auth A]	16	Plasmodium falciparum 3D7	Mutation(s): 0 Gene Names: CSP, PF3D7_0304600
UniProt
Find proteins for Q7K740 (Plasmodium falciparum (isolate 3D7)) Explore Q7K740 Go to UniProtKB: Q7K740
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q7K740
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 3.14 Å
R-Value Free: 0.275 (Depositor), 0.274 (DCC)
R-Value Work: 0.233 (Depositor), 0.232 (DCC)
R-Value Observed: 0.237 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 71.996	α = 90
b = 80.7	β = 90
c = 99.377	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-2000	data scaling
HKL-2000	data reduction
PHASER	phasing

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-10-01

Deposition Author(s):

Funding Organization	Location	Grant Number
Bill & Melinda Gates Foundation	United States	INV-004923
Bill & Melinda Gates Foundation	United States	INV-056202

Revision History (Full details and data files)

Version 1.0: 2025-10-01
Type: Initial release
