9DLZ | pdb_00009dlz

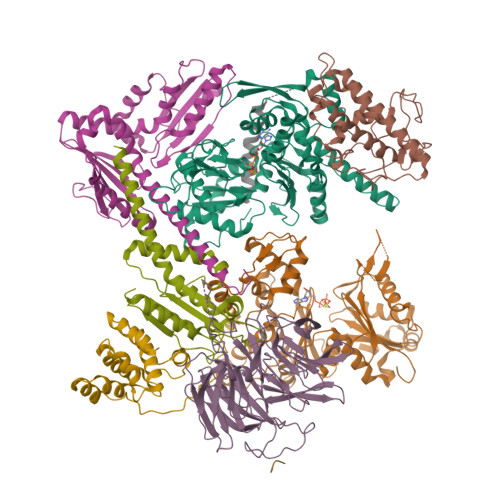

Bovine Arp2/3 complex with N-WASP CA bound to Arp3


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

NPF binding to Arp2 is allosterically linked to the release of ArpC5's N-terminal tail and conformational changes in Arp2/3 complex.

Saks, A.J.Barrie, K.R.Rebowski, G.Dominguez, R.

(2025) Proc Natl Acad Sci U S A 122: e2421557122-e2421557122

  • DOI: https://doi.org/10.1073/pnas.2421557122
  • Primary Citation of Related Structures:
    9DLX, 9DLZ

  • PubMed Abstract:

    Arp2/3 complex generates branched actin networks essential for numerous motile functions of the cell. It comprises seven subunits: actin-related proteins (Arps) 2 and 3 and five scaffolding subunits (ArpC1-5). The complex adopts two major conformations: inactive, with the Arps interacting end-to-end, and active, with the Arps aligned side-by-side like subunits in the actin filament. Activation involves several cofactors, including ATP, WASP-family nucleation-promoting factors (NPFs), actin monomers, and the mother actin filament. NPFs bind to two sites, one on Arp2-ArpC1 and one on Arp3, delivering actin subunits at the barbed end of the Arps to initiate branch elongation. However, the mechanisms by which each NPF drives the equilibrium toward activation remain unclear. We present two cryo-electron microscopy (cryo-EM) structures of Arp2/3 complex at 2.9-Å resolution: one with NPFs bound to Arp3 and ArpC1 but not Arp2 and another with NPFs bound to Arp3 and Arp2-ArpC1. The structures reveal that NPF binding to Arp2 is allosterically linked to the release of ArpC5's N-terminal tail from Arp2 and conformational changes in Arp2, including closure of its ATP-binding cleft and partial rotation and translation toward its position in the active complex at the branch. Previous work identified another allosteric switch linking NPF binding to Arp3 with the release of its inhibitory C-terminal tail, which we also observe. In summary, both NPF-binding sites induce allosteric changes in Arp2/3 complex, collectively shifting the equilibrium toward activation.


  • Organizational Affiliation
    • Department of Physiology, Perelman School of Medicine, University of Pennsylvania, Philadelphia, PA 19104.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Actin-related protein 3411Bos taurusMutation(s): 0
UniProt
Find proteins for P61157 (Bos taurus)
Explore P61157
Go to UniProtKB:  P61157
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61157
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Actin-related protein 2390Bos taurusMutation(s): 0
UniProt
Find proteins for A7MB62 (Bos taurus)
Explore A7MB62
Go to UniProtKB:  A7MB62
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA7MB62
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Actin-related protein 2/3 complex subunit 1A370Bos taurusMutation(s): 0
UniProt
Find proteins for Q1JP79 (Bos taurus)
Explore Q1JP79
Go to UniProtKB:  Q1JP79
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ1JP79
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Actin-related protein 2/3 complex subunit 2285Bos taurusMutation(s): 0
UniProt
Find proteins for Q3MHR7 (Bos taurus)
Explore Q3MHR7
Go to UniProtKB:  Q3MHR7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ3MHR7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
Actin-related protein 2/3 complex subunit 3175Bos taurusMutation(s): 0
UniProt
Find proteins for Q3T035 (Bos taurus)
Explore Q3T035
Go to UniProtKB:  Q3T035
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ3T035
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
Actin-related protein 2/3 complex subunit 4167Bos taurusMutation(s): 0
UniProt
Find proteins for Q148J6 (Bos taurus)
Explore Q148J6
Go to UniProtKB:  Q148J6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ148J6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
Actin-related protein 2/3 complex subunit 5145Bos taurusMutation(s): 0
UniProt
Find proteins for Q3SYX9 (Bos taurus)
Explore Q3SYX9
Go to UniProtKB:  Q3SYX9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ3SYX9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
WASP like actin nucleation promoting factor
H, I
41Homo sapiensMutation(s): 0
Gene Names: mPipKuh1_018740
UniProt
Find proteins for A4D0Y1 (Homo sapiens)
Explore A4D0Y1
Go to UniProtKB:  A4D0Y1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA4D0Y1
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.40 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM073791-19

Revision History  (Full details and data files)

  • Version 1.0: 2025-02-12
    Type: Initial release
  • Version 1.1: 2025-08-27
    Changes: Data collection, Database references
