9D8J | pdb_00009d8j

KP.2 SARS-COV-2 Spike 3-down conformation

PDB DOI: https://doi.org/10.2210/pdb9D8J/pdb
EM Map EMD-46639: EMDB EMDataResource

Classification: VIRUS
Organism(s): Severe acute respiratory syndrome coronavirus 2
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-08-19 Released: 2025-10-29
Deposition Author(s): Windsor, I.W., Wu, H.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.90 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

SARS-CoV-2 JN.1 and KP.2 spike characteristics and neutralization of JN.1-derived sublineages and T cell responses from mice immunized with monovalent JN.1- and KP.2-adapted BNT162b2 COVID-19 vaccines

Windsor, I.W., Wu, H.

To be published.

Macromolecule Content

Total Structure Weight: 447.63 kDa
Atom Count: 27,666
Modeled Residue Count: 3,336
Deposited Residue Count: 3,915
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

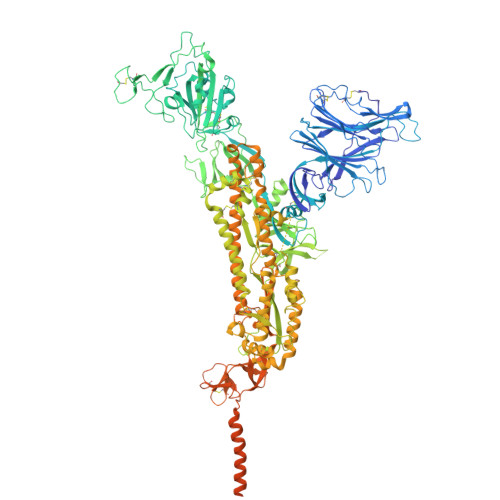

Spike glycoprotein	A, B, C	1,305	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0
UniProt
Find proteins for A0A6N0C4S6 (Severe acute respiratory syndrome coronavirus 2) Explore A0A6N0C4S6 Go to UniProtKB: A0A6N0C4S6
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A6N0C4S6
Glycosylation
Glycosylation Sites: 15	Glycosylation Focus chain A Focus chain B Focus chain C
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D, E, F, G, I D, E, F, G, I, J, K, L, M, O, P, Q, R, S, U	2		N-Glycosylation	Interactions Focus chain D Focus chain E Focus chain F Focus chain G Focus chain I Focus chain J Focus chain K Focus chain L Focus chain M Focus chain O Focus chain P Focus chain Q Focus chain R Focus chain S Focus chain U Interactions & Density Focus chain D Focus chain E Focus chain F Focus chain G Focus chain I Focus chain J Focus chain K Focus chain L Focus chain M Focus chain O Focus chain P Focus chain Q Focus chain R Focus chain S Focus chain U
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	H, N, T	3		N-Glycosylation	Interactions Focus chain H Focus chain N Focus chain T Interactions & Density Focus chain H Focus chain N Focus chain T
Glycosylation Resources
GlyTouCan: G21290RB GlyCosmos: G21290RB GlyGen: G21290RB

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download Ideal Coordinates CCD File SDF format, chain Z [auth A] SDF format, chain Y [auth A] SDF format, chain X [auth A] SDF format, chain W [auth A] SDF format, chain VA [auth C] SDF format, chain V [auth A] SDF format, chain UA [auth C] SDF format, chain TA [auth C] SDF format, chain SA [auth C] SDF format, chain RA [auth C] SDF format, chain QA [auth C] SDF format, chain PA [auth C] SDF format, chain OA [auth C] SDF format, chain NA [auth C] SDF format, chain MA [auth B] SDF format, chain LA [auth B] SDF format, chain KA [auth B] SDF format, chain JA [auth B] SDF format, chain IA [auth B] SDF format, chain HA [auth B] SDF format, chain GA [auth B] SDF format, chain FA [auth B] SDF format, chain EA [auth B] SDF format, chain DA [auth A] SDF format, chain CA [auth A] SDF format, chain BA [auth A] SDF format, chain AA [auth A] MOL2 format, chain Z [auth A] MOL2 format, chain Y [auth A] MOL2 format, chain X [auth A] MOL2 format, chain W [auth A] MOL2 format, chain VA [auth C] MOL2 format, chain V [auth A] MOL2 format, chain UA [auth C] MOL2 format, chain TA [auth C] MOL2 format, chain SA [auth C] MOL2 format, chain RA [auth C] MOL2 format, chain QA [auth C] MOL2 format, chain PA [auth C] MOL2 format, chain OA [auth C] MOL2 format, chain NA [auth C] MOL2 format, chain MA [auth B] MOL2 format, chain LA [auth B] MOL2 format, chain KA [auth B] MOL2 format, chain JA [auth B] MOL2 format, chain IA [auth B] MOL2 format, chain HA [auth B] MOL2 format, chain GA [auth B] MOL2 format, chain FA [auth B] MOL2 format, chain EA [auth B] MOL2 format, chain DA [auth A] MOL2 format, chain CA [auth A] MOL2 format, chain BA [auth A] MOL2 format, chain AA [auth A] mmCIF format, chain Z [auth A] mmCIF format, chain Y [auth A] mmCIF format, chain X [auth A] mmCIF format, chain W [auth A] mmCIF format, chain VA [auth C] mmCIF format, chain V [auth A] mmCIF format, chain UA [auth C] mmCIF format, chain TA [auth C] mmCIF format, chain SA [auth C] mmCIF format, chain RA [auth C] mmCIF format, chain QA [auth C] mmCIF format, chain PA [auth C] mmCIF format, chain OA [auth C] mmCIF format, chain NA [auth C] mmCIF format, chain MA [auth B] mmCIF format, chain LA [auth B] mmCIF format, chain KA [auth B] mmCIF format, chain JA [auth B] mmCIF format, chain IA [auth B] mmCIF format, chain HA [auth B] mmCIF format, chain GA [auth B] mmCIF format, chain FA [auth B] mmCIF format, chain EA [auth B] mmCIF format, chain DA [auth A] mmCIF format, chain CA [auth A] mmCIF format, chain BA [auth A] mmCIF format, chain AA [auth A]	AA [auth A] BA [auth A] CA [auth A] DA [auth A] EA [auth B] AA [auth A], BA [auth A], CA [auth A], DA [auth A], EA [auth B], FA [auth B], GA [auth B], HA [auth B], IA [auth B], JA [auth B], KA [auth B], LA [auth B], MA [auth B], NA [auth C], OA [auth C], PA [auth C], QA [auth C], RA [auth C], SA [auth C], TA [auth C], UA [auth C], V [auth A], VA [auth C], W [auth A], X [auth A], Y [auth A], Z [auth A]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain AA [auth A] Focus chain BA [auth A] Focus chain CA [auth A] Focus chain DA [auth A] Focus chain EA [auth B] Focus chain FA [auth B] Focus chain GA [auth B] Focus chain HA [auth B] Focus chain IA [auth B] Focus chain JA [auth B] Focus chain KA [auth B] Focus chain LA [auth B] Focus chain MA [auth B] Focus chain NA [auth C] Focus chain OA [auth C] Focus chain PA [auth C] Focus chain QA [auth C] Focus chain RA [auth C] Focus chain SA [auth C] Focus chain TA [auth C] Focus chain UA [auth C] Focus chain V [auth A] Focus chain VA [auth C] Focus chain W [auth A] Focus chain X [auth A] Focus chain Y [auth A] Focus chain Z [auth A] Interactions & Density Focus chain AA [auth A] Focus chain BA [auth A] Focus chain CA [auth A] Focus chain DA [auth A] Focus chain EA [auth B] Focus chain FA [auth B] Focus chain GA [auth B] Focus chain HA [auth B] Focus chain IA [auth B] Focus chain JA [auth B] Focus chain KA [auth B] Focus chain LA [auth B] Focus chain MA [auth B] Focus chain NA [auth C] Focus chain OA [auth C] Focus chain PA [auth C] Focus chain QA [auth C] Focus chain RA [auth C] Focus chain SA [auth C] Focus chain TA [auth C] Focus chain UA [auth C] Focus chain V [auth A] Focus chain VA [auth C] Focus chain W [auth A] Focus chain X [auth A] Focus chain Y [auth A] Focus chain Z [auth A]
