9CRT | pdb_00009crt

Crystal structure of IgG1 FC at natural pH

• PDB DOI: https://doi.org/10.2210/pdb9CRT/pdb

• Classification: IMMUNE SYSTEM
• Organism(s): Homo sapiens
• Expression System: Homo sapiens
• Mutation(s): No


• Deposited: 2024-07-22 Released: 2026-03-18
• Deposition Author(s): Reddem, E.R., Shapiro, L.
• Funding Organization(s): Bill & Melinda Gates Foundation

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.19 Å
• R-Value Free:
  0.282 (Depositor), 0.281 (DCC)
• R-Value Work:
  0.222 (Depositor), 0.223 (DCC)
• R-Value Observed:
  0.228 (Depositor)

Starting Model: experimental

Literature

Crystal structure of IgG1 FC at natural pH

Reddem, E.R., Shapiro, L.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 55.18 kDa
• Atom Count: 3,676
• Modeled Residue Count: 414
• Deposited Residue Count: 462
• Unique protein chains: 1

Macromolecules

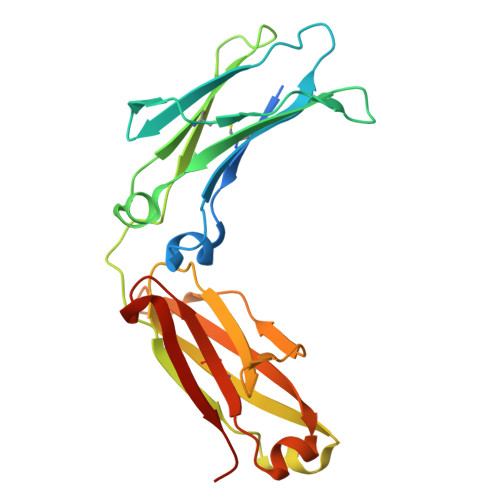

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
IgG1 FC,Immunoglobulin gamma-1 heavy chain	A, B	231	Homo sapiens	Mutation(s): 0
UniProt
Find proteins for P0DOX5 (Homo sapiens) Explore P0DOX5  Go to UniProtKB:  P0DOX5
Glycosylation
Glycosylation Sites: 1

Oligosaccharides

Help

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
beta-D-galactopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	C	9		N-Glycosylation
Glycosylation Resources
GlyTouCan:  G27919IH GlyCosmos:  G27919IH GlyGen:  G27919IH

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose	D	9		N-Glycosylation

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.19 Å
• R-Value Free:  0.282 (Depositor), 0.281 (DCC)
• R-Value Work:  0.222 (Depositor), 0.223 (DCC)
• R-Value Observed: 0.228 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 49.638	α = 90
b = 80.673	β = 90
c = 136.342	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
XDS	data reduction
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2026-03-18
Deposition Author(s): Reddem, E.R., Shapiro, L.

---

Funding Organization	Location	Grant Number
Bill & Melinda Gates Foundation	United States	INV-016167

Revision History

• Version 1.0: 2026-03-18
  Type: Initial release
