9COF | pdb_00009cof

Structure of the full-length Measles virus Fusion protein E170G E455G in the pre-fusion conformation bound by [FIP-HRC]2-PEG11 in nanodisc

• PDB DOI: https://doi.org/10.2210/pdb9COF/pdb
• EM Map EMD-45778: EMDB EMDataResource

• Classification: VIRAL PROTEIN
• Organism(s): Measles virus strain Ichinose-B95a, synthetic construct
• Expression System: Homo sapiens
• Mutation(s): Yes


• Deposited: 2024-07-16 Released: 2026-01-21
• Deposition Author(s): Zyla, D., Saphire, E.O.
• Funding Organization(s): Swiss National Science Foundation, National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS), National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.72 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental

Literature

Full-length soluble measles fusion glycoprotein as a new subunit vaccine strategy

Zyla, D., Saphire, E.O.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C3  (Explore in 3D)
Global Stoichiometry: Hetero 9-mer - A3B3C3 Pseudo Symmetry: Asymmetric - C1
Pseudo Stoichiometry: Hetero 9-mer - A3B3C1D1E1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 193.73 kDa
• Atom Count: 10,754
• Modeled Residue Count: 1,372
• Deposited Residue Count: 1,764
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

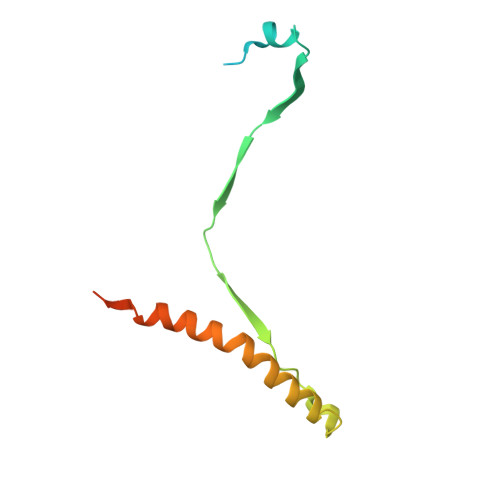

Fusion glycoprotein F2	A, C, E	112	Measles virus strain Ichinose-B95a	Mutation(s): 0
UniProt
Find proteins for Q786F3 (Measles virus (strain Ichinose-B95a)) Explore Q786F3  Go to UniProtKB:  Q786F3
Glycosylation
Glycosylation Sites: 3

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

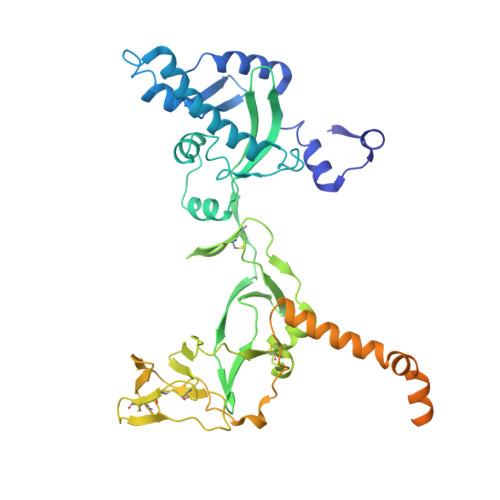

Fusion glycoprotein F1	B, D, F	472	Measles virus strain Ichinose-B95a	Mutation(s): 2
UniProt
Find proteins for Q786F3 (Measles virus (strain Ichinose-B95a)) Explore Q786F3  Go to UniProtKB:  Q786F3

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

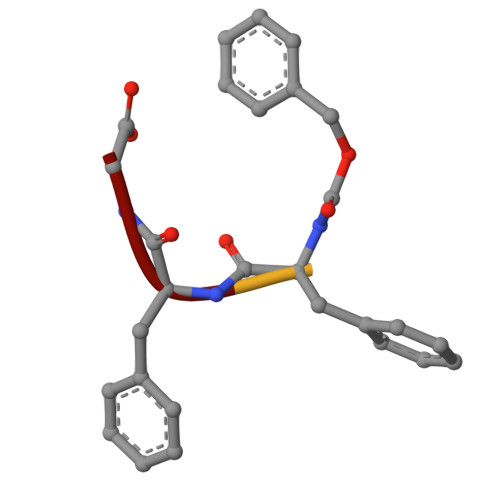

[FIP-HRC]2-PEG11	G [auth P], H [auth Q], I [auth R]	4	synthetic construct	Mutation(s): 0

Oligosaccharides

Help

Entity ID: 4
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	J [auth G], M [auth J], P [auth M]	2		N-Glycosylation

Entity ID: 5
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	K [auth H], N [auth K], Q [auth N]	3		N-Glycosylation

Entity ID: 6
Molecule	Chains	Length	2D Diagram	Glycosylation	3D Interactions
alpha-L-fucopyranose-(1-6)-2-acetamido-2-deoxy-beta-D-glucopyranose	L [auth I], O [auth L], R [auth O]	2		N-Glycosylation

Biologically Interesting Molecules (External Reference) 1 Unique

Entity ID: 3
ID	Chains	Name	Type/Class	2D Diagram	3D Interactions
PRD_002539	G [auth P], H [auth Q], I [auth R]	[FIP-HRC]2-PEG11	Peptide-like / Inhibitor

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.72 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX
RECONSTRUCTION	cryoSPARC	v4.3

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2026-01-21
Deposition Author(s): Zyla, D., Saphire, E.O.

---

Funding Organization	Location	Grant Number
Swiss National Science Foundation	Switzerland	P2EZP3_195680
Swiss National Science Foundation	Switzerland	P500PB_210992
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)	United States	NS105699
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)	United States	NS091263
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	AI176833

Revision History

• Version 1.0: 2026-01-21
  Type: Initial release
