9C6V

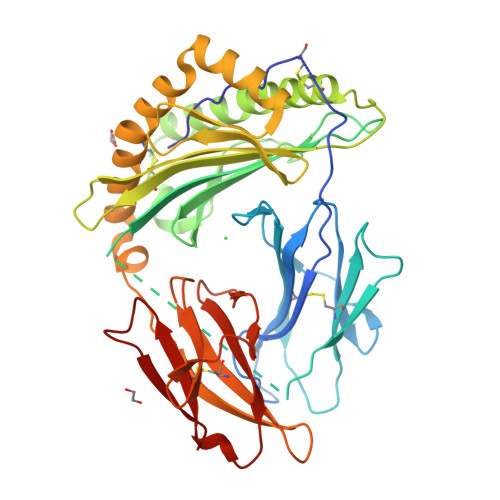

Crystal Structure of a single chain trimer composed of HLA-B*39:06 Y84C variant, beta-2microglobulin, and NRVMLPKAA peptide from NLRP2 (1 molecule/asymmetric unit)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.219
  • R-Value Work: 0.196
  • R-Value Observed: 0.197

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Structural and biochemical analysis of highly similar HLA-B allotypes differentially associated with type 1 diabetes.

Sharma, R.Amdare, N.P.Ghosh, A.Schloss, J.Sidney, J.Garforth, S.J.Lopez, Y.Celikgil, A.Sette, A.Almo, S.C.DiLorenzo, T.P.

(2024) J Biol Chem 300: 107702-107702

  • DOI: https://doi.org/10.1016/j.jbc.2024.107702
  • Primary Citation of Related Structures:
    9C6V, 9C6W, 9C6X

  • PubMed Abstract:

    Type 1 diabetes (T1D) is an autoimmune disease involving T cell-mediated destruction of the insulin-producing beta cells in the pancreatic islets of Langerhans. CD8 + T cells, responding to beta cell peptides presented by class I major histocompatibility complex (MHC) molecules, are important effectors leading to beta cell elimination. Human leukocyte antigen (HLA) B*39:06, B*39:01, and B*38:01 are closely related class I MHC allotypes that nonetheless show differential association with T1D. HLA-B*39:06 is the most predisposing of all HLA class I molecules and is associated with early age at disease onset. B*39:01 is also associated with susceptibility to T1D, but to a lesser extent, though differing from B*39:06 by only two amino acids. HLA-B*38:01, in contrast, is associated with protection from the disease. Upon identifying a peptide that binds to both HLA-B*39:06 and B*39:01, we determined the respective X-ray structures of the two allotypes presenting this peptide to 1.7 Å resolution. The peptide residues available for T cell receptor contact and those serving as anchors were identified. Analysis of the F pocket of HLA-B*39:06 and B*39:01 provided an explanation for the distinct peptide C-terminus preferences of the two allotypes. Structure-based modeling of the protective HLA-B*38:01 suggested a potential reason for its peptide preferences and its reduced propensity to present 8-mer peptides compared to B*39:06. Notably, the three allotypes showed differential binding to peptides derived from beta cell autoantigens. Taken together, our findings should facilitate identification of disease-relevant candidate T cell epitopes and structure-guided therapeutics to interfere with peptide binding.


  • Organizational Affiliation

    Department of Microbiology and Immunology, Albert Einstein College of Medicine, Bronx, NY.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
NACHT, LRR and PYD domains-containing protein 2,Beta-2-microglobulin,MHC class I antigen419Homo sapiensMutation(s): 1
Gene Names: NLRP2NALP2NBS1PAN1PYPAF2B2MCDABP0092HDCMA22PHLA-BHLA-B39
UniProt & NIH Common Fund Data Resources
Find proteins for I3ZN83 (Homo sapiens)
Explore I3ZN83
Go to UniProtKB:  I3ZN83
Find proteins for Q9NX02 (Homo sapiens)
Explore Q9NX02
Go to UniProtKB:  Q9NX02
PHAROS:  Q9NX02
GTEx:  ENSG00000022556
Find proteins for P61769 (Homo sapiens)
Explore P61769
Go to UniProtKB:  P61769
PHAROS:  P61769
GTEx:  ENSG00000166710
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsI3ZN83Q9NX02P61769
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.70 Å
  • R-Value Free: 0.219
  • R-Value Work: 0.196
  • R-Value Observed: 0.197
  • Space Group: C 2 2 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 74.954α = 90
b = 83.45β = 90
c = 148.638γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)United StatesR01 AI123730
National Institutes of Health/National Cancer Institute (NIH/NCI)United StatesP30 CA013330

Revision History  (Full details and data files)

  • Version 1.0: 2024-09-04
    Type: Initial release
  • Version 1.1: 2024-10-02
    Changes: Database references
  • Version 1.2: 2024-10-23
    Changes: Structure summary
