9BYK | pdb_00009byk

Cryo-EM structure of ATP synthase E state

PDB DOI: https://doi.org/10.2210/pdb9BYK/pdb
EM Map EMD-45036: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Sus scrofa
Mutation(s): No

Deposited: 2024-05-23 Released: 2025-08-06
Deposition Author(s): Zhang, Z., Maharjan, R., Tringides, M.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.03 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of ATP synthase E state

Zhang, Z., Maharjan, R., Tringides, M.

To be published.

Macromolecule Content

Total Structure Weight: 705.58 kDa
Atom Count: 37,263
Modeled Residue Count: 5,028
Deposited Residue Count: 6,505
Unique protein chains: 18

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

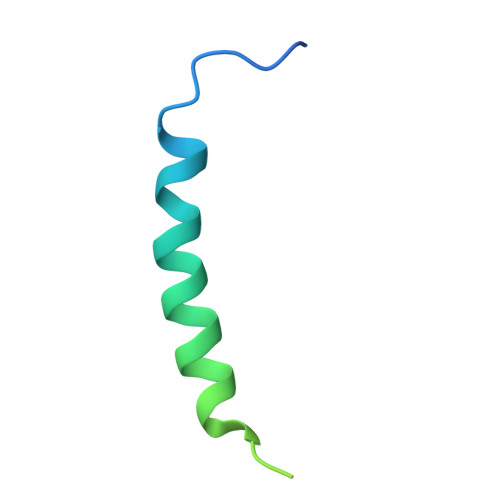

ATP synthase protein 8	A [auth 8]	67	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for Q35914 (Sus scrofa) Explore Q35914 Go to UniProtKB: Q35914
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q35914
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

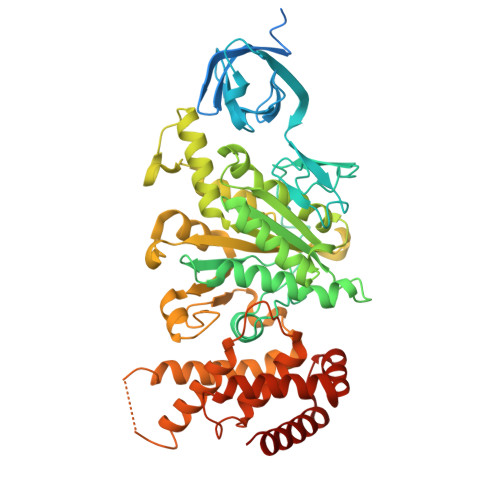

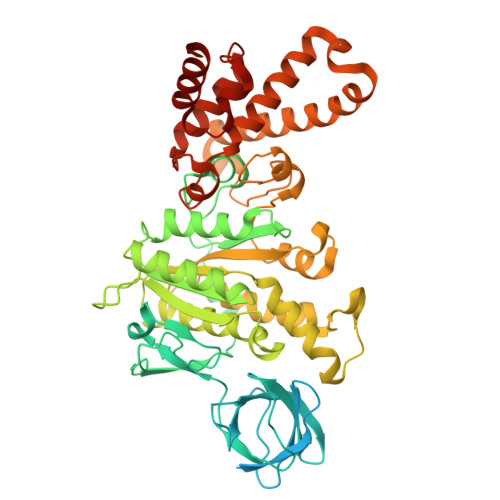

ATP synthase subunit alpha	AA [auth C], B [auth A], CA [auth B]	550	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1XYK3 (Sus scrofa) Explore A0A8D1XYK3 Go to UniProtKB: A0A8D1XYK3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A8D1XYK3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
ATP synthase subunit beta	C [auth D], D [auth E], E [auth F]	570	Sus scrofa	Mutation(s): 0 EC: 7.1.2.2
UniProt
Find proteins for A0A8D1JU29 (Sus scrofa) Explore A0A8D1JU29 Go to UniProtKB: A0A8D1JU29
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A8D1JU29
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

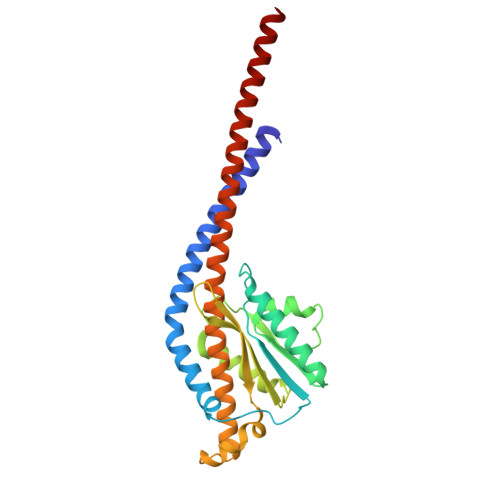

ATP synthase subunit gamma	F [auth G]	273	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D0YCC0 (Sus scrofa) Explore A0A8D0YCC0 Go to UniProtKB: A0A8D0YCC0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A8D0YCC0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

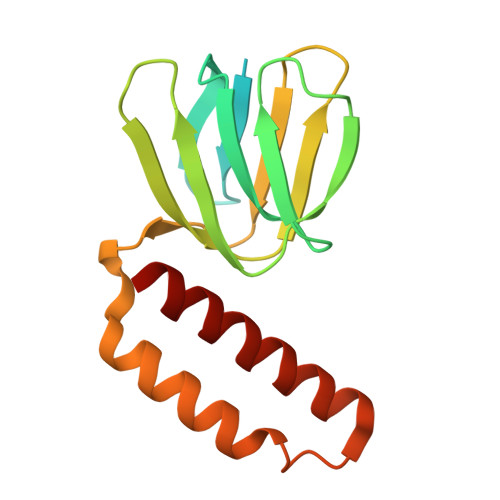

ATP synthase F1 subunit delta	G [auth H]	168	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A4X1VPE5 (Sus scrofa) Explore A0A4X1VPE5 Go to UniProtKB: A0A4X1VPE5
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A4X1VPE5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

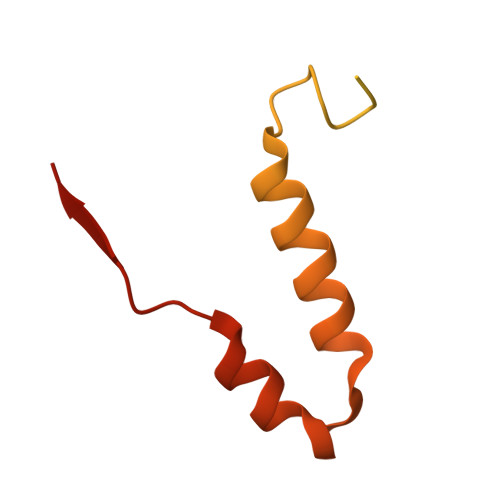

ATP synthase F1 subunit epsilon	H [auth I]	136	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1L782 (Sus scrofa) Explore A0A8D1L782 Go to UniProtKB: A0A8D1L782
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A8D1L782
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
ATPase inhibitor, mitochondrial	I [auth J]	108	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for Q29307 (Sus scrofa) Explore Q29307 Go to UniProtKB: Q29307
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q29307
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image

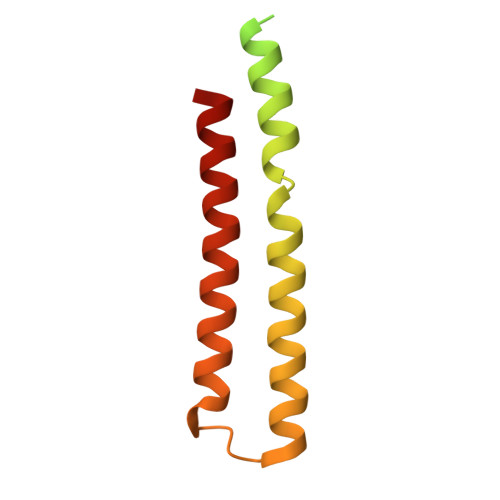

ATP synthase lipid-binding protein	J [auth K] K [auth L] L [auth M] M [auth N] N [auth O] J [auth K], K [auth L], L [auth M], M [auth N], N [auth O], O [auth P], P [auth Q], Q [auth R]	141	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1WGE8 (Sus scrofa) Explore A0A8D1WGE8 Go to UniProtKB: A0A8D1WGE8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A8D1WGE8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

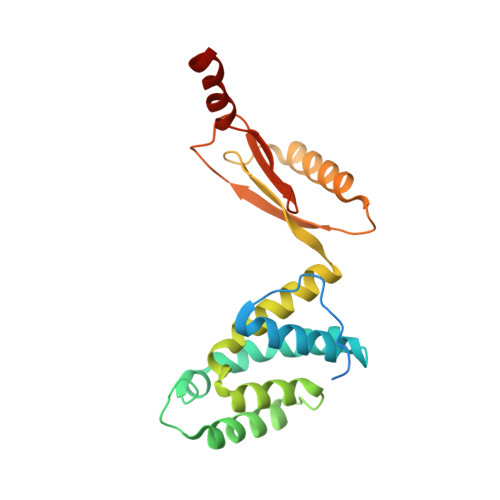

ATP synthase subunit O, mitochondrial	R [auth S]	213	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A2C9F3A3 (Sus scrofa) Explore A0A2C9F3A3 Go to UniProtKB: A0A2C9F3A3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A2C9F3A3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image

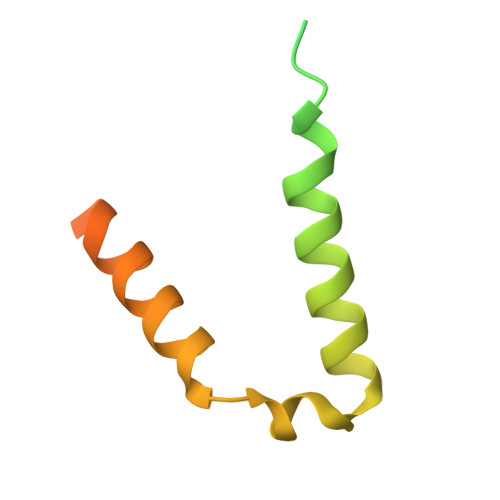

ATP synthase subunit	S [auth T]	103	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for F1SAK7 (Sus scrofa) Explore F1SAK7 Go to UniProtKB: F1SAK7
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	F1SAK7
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image

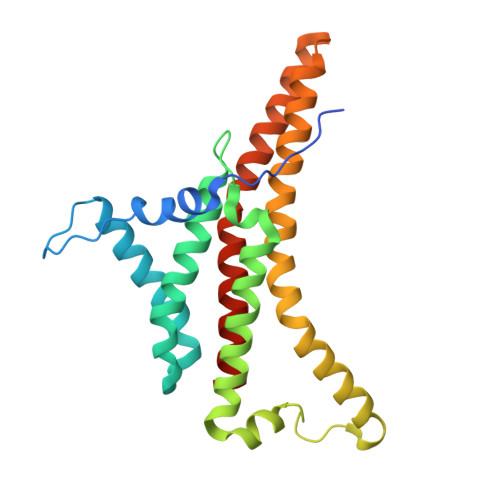

ATP synthase subunit a	T [auth a]	226	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for Q35915 (Sus scrofa) Explore Q35915 Go to UniProtKB: Q35915
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q35915
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image

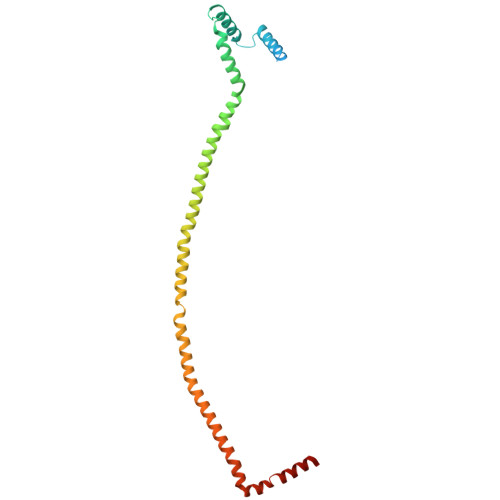

ATP synthase subunit b	U [auth b]	238	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1YQG6 (Sus scrofa) Explore A0A8D1YQG6 Go to UniProtKB: A0A8D1YQG6
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A8D1YQG6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image

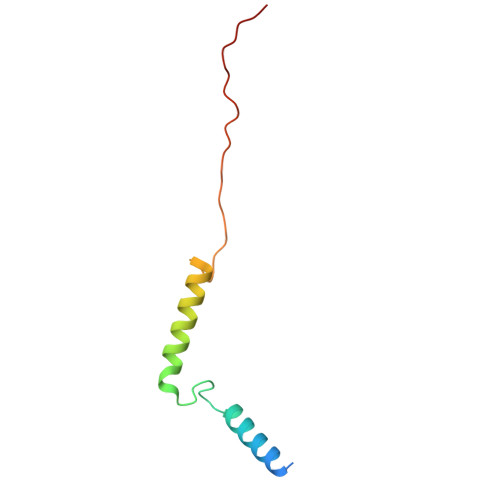

ATP synthase-coupling factor 6, mitochondrial	V [auth c]	76	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for P13618 (Sus scrofa) Explore P13618 Go to UniProtKB: P13618
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P13618
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image
ATP synthase subunit d, mitochondrial	W [auth d]	166	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1FFA1 (Sus scrofa) Explore A0A8D1FFA1 Go to UniProtKB: A0A8D1FFA1
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A8D1FFA1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image

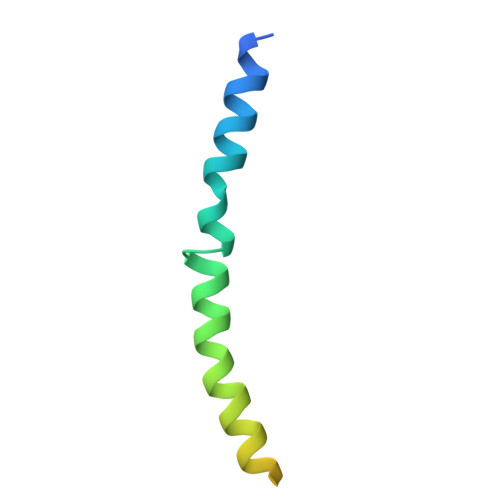

ATP synthase subunit e, mitochondrial	X [auth e]	71	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for Q9MYT8 (Sus scrofa) Explore Q9MYT8 Go to UniProtKB: Q9MYT8
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q9MYT8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image
ATP synthase membrane subunit K, mitochondrial	Y [auth i]	58	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A4X1TQQ5 (Sus scrofa) Explore A0A4X1TQQ5 Go to UniProtKB: A0A4X1TQQ5
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0A4X1TQQ5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image

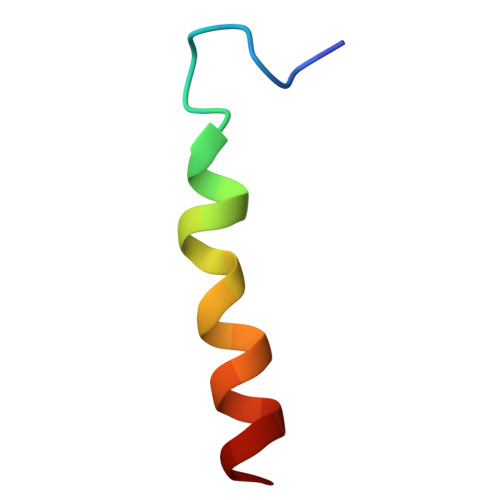

unkown protein	Z [auth k]	26	Sus scrofa	Mutation(s): 0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image

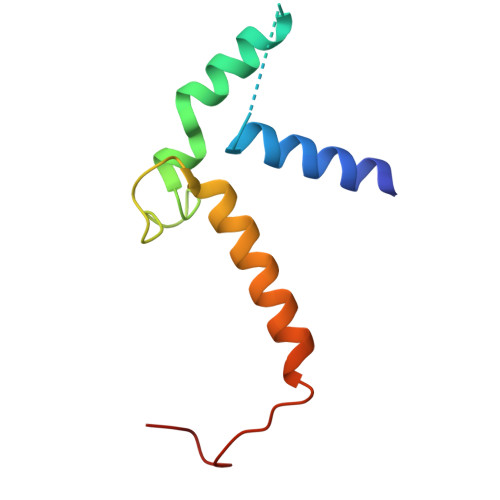

ATP synthase subunit f, mitochondrial	BA [auth f]	88	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for Q95339 (Sus scrofa) Explore Q95339 Go to UniProtKB: Q95339
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q95339
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP Query on ATP Download Ideal Coordinates CCD File SDF format, chain DA [auth A] SDF format, chain JA [auth C] SDF format, chain LA [auth B] MOL2 format, chain DA [auth A] MOL2 format, chain JA [auth C] MOL2 format, chain LA [auth B] mmCIF format, chain DA [auth A] mmCIF format, chain JA [auth C] mmCIF format, chain LA [auth B]	DA [auth A], JA [auth C], LA [auth B]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain DA [auth A] Focus chain JA [auth C] Focus chain LA [auth B] Interactions & Density Focus chain DA [auth A] Focus chain JA [auth C] Focus chain LA [auth B]
ADP Query on ADP Download Ideal Coordinates CCD File SDF format, chain FA [auth D] SDF format, chain HA [auth F] MOL2 format, chain FA [auth D] MOL2 format, chain HA [auth F] mmCIF format, chain FA [auth D] mmCIF format, chain HA [auth F]	FA [auth D], HA [auth F]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain FA [auth D] Focus chain HA [auth F] Interactions & Density Focus chain FA [auth D] Focus chain HA [auth F]
MG Query on MG Download Ideal Coordinates CCD File SDF format, chain EA [auth A] SDF format, chain GA [auth D] SDF format, chain IA [auth F] SDF format, chain KA [auth C] MOL2 format, chain EA [auth A] MOL2 format, chain GA [auth D] MOL2 format, chain IA [auth F] MOL2 format, chain KA [auth C] mmCIF format, chain EA [auth A] mmCIF format, chain GA [auth D] mmCIF format, chain IA [auth F] mmCIF format, chain KA [auth C]	EA [auth A], GA [auth D], IA [auth F], KA [auth C]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain EA [auth A] Focus chain GA [auth D] Focus chain IA [auth F] Focus chain KA [auth C] Interactions & Density Focus chain EA [auth A] Focus chain GA [auth D] Focus chain IA [auth F] Focus chain KA [auth C]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.03 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487:

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2025-08-06

Deposition Author(s):

Zhang, Z.

Maharjan, R.

Tringides, M.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	--

Revision History (Full details and data files)

Version 1.0: 2025-08-06
Type: Initial release
