9BLK | pdb_00009blk

HCoV-OC43 Spike glycoprotein

PDB DOI: https://doi.org/10.2210/pdb9BLK/pdb
EM Map EMD-44658: EMDB EMDataResource

Classification: VIRAL PROTEIN
Organism(s): Human coronavirus OC43
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-04-30 Released: 2025-04-23
Deposition Author(s): Torrents de la Pena, A., Sewall, L.M., Ward, A.B.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID), Bill & Melinda Gates Foundation

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.20 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Rapid and High-Throughput Imaging of Immune Complexes Using Microfluidics and Single Particle Electron Microscopy

Sewall, L.M., de Paiva Froes Rocha, R., Gibson, G., Louie, M., Xie, Z., Bangaru, S., Tran, A.S., Ozorowski, G., Mohanty, S., Beutler, N., Burton, D.R., Shaw, A.C., Batista, F.D., Chocarro Ruiz, B., Torrents de la Pena, A., Ward, A.B.

(2025) Nat Biomed Eng

Macromolecule Content

Total Structure Weight: 464.47 kDa
Atom Count: 28,035
Modeled Residue Count: 3,519
Deposited Residue Count: 4,089
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

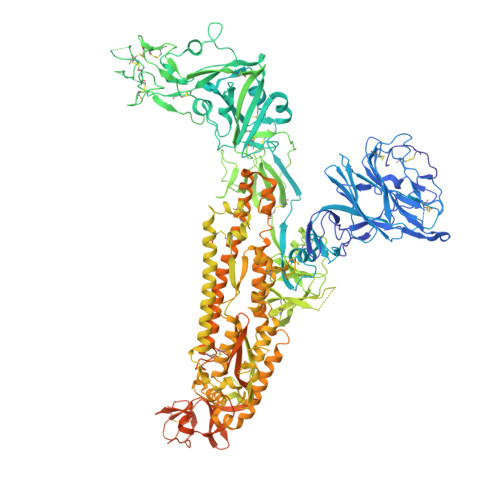

Spike glycoprotein	A, B, C	1,363	Human coronavirus OC43	Mutation(s): 0
UniProt
Find proteins for Q696P8 (Human coronavirus OC43) Explore Q696P8 Go to UniProtKB: Q696P8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q696P8
Glycosylation
Glycosylation Sites: 12	Glycosylation Focus chain A Focus chain B Focus chain C
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 2
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	D, F, H	3		N-Glycosylation	Interactions Focus chain D Focus chain F Focus chain H Interactions & Density Focus chain D Focus chain F Focus chain H
Glycosylation Resources
GlyTouCan: G15407YE GlyCosmos: G15407YE GlyGen: G15407YE

Entity ID: 3
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	E, G, I	2		N-Glycosylation	Interactions Focus chain E Focus chain G Focus chain I Interactions & Density Focus chain E Focus chain G Focus chain I
Glycosylation Resources
GlyTouCan: G42666HT GlyCosmos: G42666HT GlyGen: G42666HT

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain AA [auth B] SDF format, chain BA [auth B] SDF format, chain CA [auth B] SDF format, chain DA [auth C] SDF format, chain EA [auth C] SDF format, chain FA [auth C] SDF format, chain GA [auth C] SDF format, chain HA [auth C] SDF format, chain IA [auth C] SDF format, chain J [auth A] SDF format, chain JA [auth C] SDF format, chain K [auth A] SDF format, chain KA [auth C] SDF format, chain L [auth A] SDF format, chain LA [auth C] SDF format, chain M [auth A] SDF format, chain MA [auth C] SDF format, chain N [auth A] SDF format, chain O [auth A] SDF format, chain P [auth A] SDF format, chain Q [auth A] SDF format, chain R [auth A] SDF format, chain S [auth A] SDF format, chain T [auth B] SDF format, chain U [auth B] SDF format, chain V [auth B] SDF format, chain W [auth B] SDF format, chain X [auth B] SDF format, chain Y [auth B] SDF format, chain Z [auth B] MOL2 format, chain AA [auth B] MOL2 format, chain BA [auth B] MOL2 format, chain CA [auth B] MOL2 format, chain DA [auth C] MOL2 format, chain EA [auth C] MOL2 format, chain FA [auth C] MOL2 format, chain GA [auth C] MOL2 format, chain HA [auth C] MOL2 format, chain IA [auth C] MOL2 format, chain J [auth A] MOL2 format, chain JA [auth C] MOL2 format, chain K [auth A] MOL2 format, chain KA [auth C] MOL2 format, chain L [auth A] MOL2 format, chain LA [auth C] MOL2 format, chain M [auth A] MOL2 format, chain MA [auth C] MOL2 format, chain N [auth A] MOL2 format, chain O [auth A] MOL2 format, chain P [auth A] MOL2 format, chain Q [auth A] MOL2 format, chain R [auth A] MOL2 format, chain S [auth A] MOL2 format, chain T [auth B] MOL2 format, chain U [auth B] MOL2 format, chain V [auth B] MOL2 format, chain W [auth B] MOL2 format, chain X [auth B] MOL2 format, chain Y [auth B] MOL2 format, chain Z [auth B] mmCIF format, chain AA [auth B] mmCIF format, chain BA [auth B] mmCIF format, chain CA [auth B] mmCIF format, chain DA [auth C] mmCIF format, chain EA [auth C] mmCIF format, chain FA [auth C] mmCIF format, chain GA [auth C] mmCIF format, chain HA [auth C] mmCIF format, chain IA [auth C] mmCIF format, chain J [auth A] mmCIF format, chain JA [auth C] mmCIF format, chain K [auth A] mmCIF format, chain KA [auth C] mmCIF format, chain L [auth A] mmCIF format, chain LA [auth C] mmCIF format, chain M [auth A] mmCIF format, chain MA [auth C] mmCIF format, chain N [auth A] mmCIF format, chain O [auth A] mmCIF format, chain P [auth A] mmCIF format, chain Q [auth A] mmCIF format, chain R [auth A] mmCIF format, chain S [auth A] mmCIF format, chain T [auth B] mmCIF format, chain U [auth B] mmCIF format, chain V [auth B] mmCIF format, chain W [auth B] mmCIF format, chain X [auth B] mmCIF format, chain Y [auth B] mmCIF format, chain Z [auth B]	AA [auth B] BA [auth B] CA [auth B] DA [auth C] EA [auth C] AA [auth B], BA [auth B], CA [auth B], DA [auth C], EA [auth C], FA [auth C], GA [auth C], HA [auth C], IA [auth C], J [auth A], JA [auth C], K [auth A], KA [auth C], L [auth A], LA [auth C], M [auth A], MA [auth C], N [auth A], O [auth A], P [auth A], Q [auth A], R [auth A], S [auth A], T [auth B], U [auth B], V [auth B], W [auth B], X [auth B], Y [auth B], Z [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain AA [auth B] Focus chain BA [auth B] Focus chain CA [auth B] Focus chain DA [auth C] Focus chain EA [auth C] Focus chain FA [auth C] Focus chain GA [auth C] Focus chain HA [auth C] Focus chain IA [auth C] Focus chain J [auth A] Focus chain JA [auth C] Focus chain K [auth A] Focus chain KA [auth C] Focus chain L [auth A] Focus chain LA [auth C] Focus chain M [auth A] Focus chain MA [auth C] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth A] Focus chain S [auth A] Focus chain T [auth B] Focus chain U [auth B] Focus chain V [auth B] Focus chain W [auth B] Focus chain X [auth B] Focus chain Y [auth B] Focus chain Z [auth B] Interactions & Density Focus chain AA [auth B] Focus chain BA [auth B] Focus chain CA [auth B] Focus chain DA [auth C] Focus chain EA [auth C] Focus chain FA [auth C] Focus chain GA [auth C] Focus chain HA [auth C] Focus chain IA [auth C] Focus chain J [auth A] Focus chain JA [auth C] Focus chain K [auth A] Focus chain KA [auth C] Focus chain L [auth A] Focus chain LA [auth C] Focus chain M [auth A] Focus chain MA [auth C] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth A] Focus chain S [auth A] Focus chain T [auth B] Focus chain U [auth B] Focus chain V [auth B] Focus chain W [auth B] Focus chain X [auth B] Focus chain Y [auth B] Focus chain Z [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.20 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	Rosetta
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-04-23

Deposition Author(s):

Torrents de la Pena, A.

Sewall, L.M.

Ward, A.B.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	AI136621
Bill & Melinda Gates Foundation	United States	INV-002916
