9BJI | pdb_00009bji

Cryo-EM structure of apo NVL

PDB DOI: https://doi.org/10.2210/pdb9BJI/pdb
EM Map EMD-44633: EMDB EMDataResource

Classification: TRANSLOCASE
Organism(s): Escherichia coli BL21(DE3), Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2024-04-25 Released: 2026-01-21
Deposition Author(s): Cruz, V.E., Erzberger, J.P.
Funding Organization(s): Robert A. Welch Foundation

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.83 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Dibenzothiazepinones are bioavailable inhibitors of NVL and cause p53-dependent apoptosis in cancer by blocking 60S ribosome assembly

Guo, H.H., Tao, Y., Cruz, V.E., Fang, M., Khivansara, V., Xie, S., Leach, A., Rivera-Cancel, G., Barrows, N., Williams, N., Aurora, A., Erzberger, J.P., De Brabander, J.K., Nijhawan, D.

To be published.

Macromolecule Content

Total Structure Weight: 579.18 kDa
Atom Count: 25,835
Modeled Residue Count: 3,312
Deposited Residue Count: 5,160
Unique protein chains: 2

Macromolecules

Find similar proteins by: Sequence | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

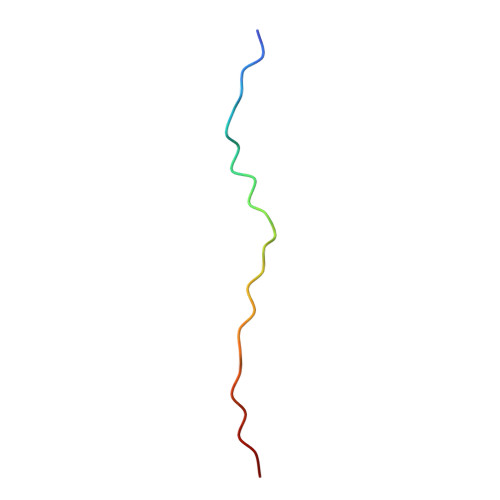

Substrate mimic	A [auth P]	24	Escherichia coli BL21(DE3)	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

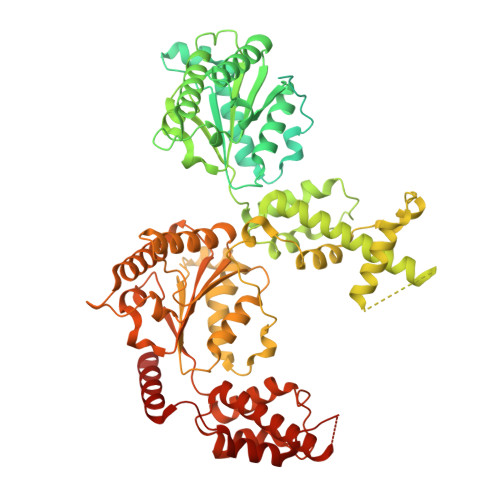

Nuclear valosin-containing protein-like	B [auth A] C [auth B] D [auth C] E [auth D] F [auth E] B [auth A], C [auth B], D [auth C], E [auth D], F [auth E], G [auth F]	856	Homo sapiens	Mutation(s): 2 Gene Names: NVL, NVL2
UniProt & NIH Common Fund Data Resources
Find proteins for O15381 (Homo sapiens) Explore O15381 Go to UniProtKB: O15381
PHAROS: O15381 GTEx: ENSG00000143748
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	O15381
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATP (Subject of Investigation/LOI) Query on ATP Download Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain L [auth B] SDF format, chain M [auth B] SDF format, chain P [auth C] SDF format, chain Q [auth C] SDF format, chain T [auth D] SDF format, chain U [auth D] SDF format, chain X [auth E] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain L [auth B] MOL2 format, chain M [auth B] MOL2 format, chain P [auth C] MOL2 format, chain Q [auth C] MOL2 format, chain T [auth D] MOL2 format, chain U [auth D] MOL2 format, chain X [auth E] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain L [auth B] mmCIF format, chain M [auth B] mmCIF format, chain P [auth C] mmCIF format, chain Q [auth C] mmCIF format, chain T [auth D] mmCIF format, chain U [auth D] mmCIF format, chain X [auth E]	H [auth A] I [auth A] L [auth B] M [auth B] P [auth C] H [auth A], I [auth A], L [auth B], M [auth B], P [auth C], Q [auth C], T [auth D], U [auth D], X [auth E]	ADENOSINE-5'-TRIPHOSPHATE C₁₀ H₁₆ N₅ O₁₃ P₃ ZKHQWZAMYRWXGA-KQYNXXCUSA-N		Interactions Focus chain H [auth A] Focus chain I [auth A] Focus chain L [auth B] Focus chain M [auth B] Focus chain P [auth C] Focus chain Q [auth C] Focus chain T [auth D] Focus chain U [auth D] Focus chain X [auth E] Interactions & Density Focus chain H [auth A] Focus chain I [auth A] Focus chain L [auth B] Focus chain M [auth B] Focus chain P [auth C] Focus chain Q [auth C] Focus chain T [auth D] Focus chain U [auth D] Focus chain X [auth E]
MG (Subject of Investigation/LOI) Query on MG Download Ideal Coordinates CCD File SDF format, chain J [auth A] SDF format, chain K [auth A] SDF format, chain N [auth B] SDF format, chain O [auth B] SDF format, chain R [auth C] SDF format, chain S [auth C] SDF format, chain V [auth D] SDF format, chain W [auth D] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] MOL2 format, chain N [auth B] MOL2 format, chain O [auth B] MOL2 format, chain R [auth C] MOL2 format, chain S [auth C] MOL2 format, chain V [auth D] MOL2 format, chain W [auth D] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A] mmCIF format, chain N [auth B] mmCIF format, chain O [auth B] mmCIF format, chain R [auth C] mmCIF format, chain S [auth C] mmCIF format, chain V [auth D] mmCIF format, chain W [auth D]	J [auth A] K [auth A] N [auth B] O [auth B] R [auth C] J [auth A], K [auth A], N [auth B], O [auth B], R [auth C], S [auth C], V [auth D], W [auth D]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain J [auth A] Focus chain K [auth A] Focus chain N [auth B] Focus chain O [auth B] Focus chain R [auth C] Focus chain S [auth C] Focus chain V [auth D] Focus chain W [auth D] Interactions & Density Focus chain J [auth A] Focus chain K [auth A] Focus chain N [auth B] Focus chain O [auth B] Focus chain R [auth C] Focus chain S [auth C] Focus chain V [auth D] Focus chain W [auth D]
