9B4U | pdb_00009b4u

Crystal structure of p110alpha-RBD covalently bound to a breaker compound BBO-10203 via Cys242


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.21 Å
  • R-Value Free:
    0.269 (Depositor), 0.272 (DCC)
  • R-Value Work:
    0.229 (Depositor), 0.230 (DCC)
  • R-Value Observed:
    0.231 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9B4U

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history

Literature

BBO-10203 inhibits tumor growth without inducing hyperglycemia by blocking RAS-PI3K alpha interaction.

Simanshu, D.K.Xu, R.Stice, J.P.Czyzyk, D.J.Feng, S.Denson, J.P.Riegler, E.Yang, Y.Zhang, C.Donovan, S.Smith, B.P.Abreu-Blanco, M.Chen, M.Feng, C.Fu, L.Rabara, D.Young, L.C.Dyba, M.Yan, W.Lin, K.Ghorbanpoorvalukolaie, S.Larsen, E.K.Malik, W.Champagne, A.Parker, K.Ju, J.H.Jeknic, S.Esposito, D.Turner, D.M.Lightstone, F.C.Wang, B.Wehn, P.M.Wang, K.Stephen, A.G.Maciag, A.E.Hata, A.N.Sinkevicius, K.W.Nissley, D.V.Wallace, E.M.McCormick, F.Beltran, P.J.

(2025) Science 389: 409-415

  • DOI: https://doi.org/10.1126/science.adq2004
  • Primary Citation Related Structures:
    9B4U

  • PubMed Abstract:

    BBO-10203 is an orally available drug that covalently and specifically binds to the RAS-binding domain of phosphoinositide 3-kinase α (PI3Kα), preventing its activation by HRAS, NRAS, and KRAS. It inhibited PI3Kα activation in tumors with oncogenic mutations in KRAS or PIK3CA , and in tumors with human epidermal growth factor receptor 2 (HER2) amplification or overexpression. In preclinical models, BBO-10203 caused significant tumor growth inhibition across multiple tumor types and showed enhanced efficacy in combination with inhibitors of cyclin-dependent kinase 4/6 (CDK4/6), estrogen receptor (ER), HER2 and KRAS-G12C mutant, including in tumors harboring mutations in Kelch-like ECH-associated protein 1 (KEAP1) and Serine/Threonine Kinase 11 (STK11). Notably, these antitumor effects occurred without inducing hyperglycemia, as insulin signaling does not depend on RAS-mediated PI3Kα activation to promote glucose uptake.


  • Organizational Affiliation
    • NCI RAS Initiative, Cancer Research Technology Program, Frederick National Laboratory for Cancer Research, Leidos Biomedical Research, Inc., Frederick, MD, USA.

Macromolecule Content

  • Total Structure Weight: 34.89 kDa
  • Atom Count: 2,419
  • Modeled Residue Count: 284
  • Deposited Residue Count: 288
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

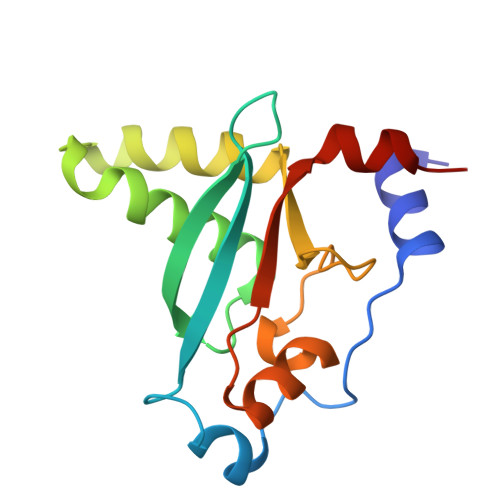

Phosphatidylinositol 4,5-bisphosphate 3-kinase catalytic subunit alpha isoform
A, B
144Homo sapiensMutation(s): 0
Gene Names: PIK3CA
EC: 2.7.1.153 (PDB Primary Data), 2.7.11.1 (PDB Primary Data), 2.7.1.137 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P42336 (Homo sapiens)
Explore P42336
Go to UniProtKB:  P42336
PHAROS:  P42336
GTEx:  ENSG00000121879
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP42336
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1AIR
(Subject of Investigation/LOI)

Query on A1AIR



Download:Ideal Coordinates CCD File
C [auth A],
D [auth B]
1-[(4R,8R)-2-[(4M,7P)-7-[2,4-difluoro-6-(2-methoxyethoxy)phenyl]-4-(1-methyl-1H-indazol-5-yl)thieno[3,2-c]pyridin-6-yl]-4-methyl-6,7-dihydropyrazolo[1,5-a]pyrazin-5(4H)-yl]propan-1-one
C34 H32 F2 N6 O3 S
HJERNIUFXRDZFD-LJQANCHMSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.21 Å
  • R-Value Free:  0.269 (Depositor), 0.272 (DCC)
  • R-Value Work:  0.229 (Depositor), 0.230 (DCC)
  • R-Value Observed: 0.231 (Depositor)
Space Group: P 21 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 78.041α = 90
b = 71.613β = 90
c = 62.09γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
XDSdata scaling
XDSdata reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Cancer Institute (NIH/NCI)United States75N91019D00024

Revision History  (Full details and data files)

  • Version 1.0: 2025-06-25
    Type: Initial release
  • Version 1.1: 2025-08-06
    Changes: Database references
