9B2K | pdb_00009b2k

SpCas9 with dual-guide RNA in open conformation

PDB DOI: https://doi.org/10.2210/pdb9B2K/pdb
NAKB: 9B2K
EM Map EMD-44111: EMDB EMDataResource

Classification: HYDROLASE
Organism(s): Streptococcus pyogenes
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2024-03-15 Released: 2025-03-26
Deposition Author(s): Korolev, S., Gagnon, K.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.67 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9B2K

This is version 1.0 of the entry. See complete history.

Literature

SpCas9 with dual-guide RNA and target DNA

Korolev, S., Gagnon, K.

To be published.

Macromolecule Content

Total Structure Weight: 196.72 kDa
Atom Count: 10,242
Modeled Residue Count: 1,136
Deposited Residue Count: 1,496
Unique protein chains: 1
Unique nucleic acid chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

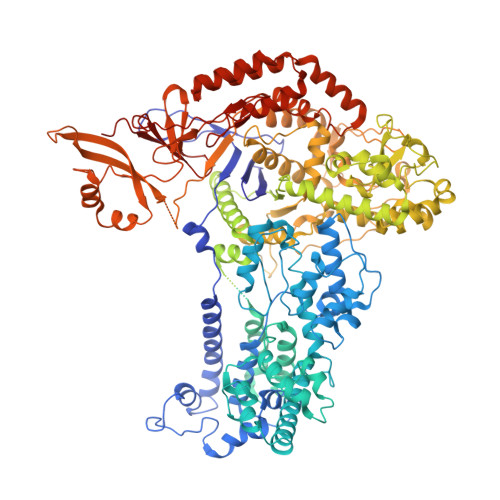

CRISPR-associated endonuclease Cas9/Csn1	C [auth P]	1,384	Streptococcus pyogenes	Mutation(s): 0 Gene Names: cas9, csn1, SPy_1046 EC: 3.1
UniProt
Find proteins for Q99ZW2 (Streptococcus pyogenes serotype M1) Explore Q99ZW2 Go to UniProtKB: Q99ZW2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q99ZW2
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism	Image
Entity ID: 1

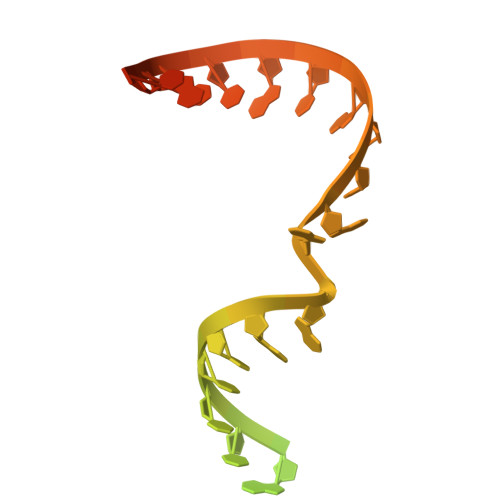

RNA (5'-R(PGPUPUPUPUPAPGPAPGPCPUPAPUPGPCPUPGPU)-3')	A	42	Streptococcus pyogenes
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism	Image
Entity ID: 2

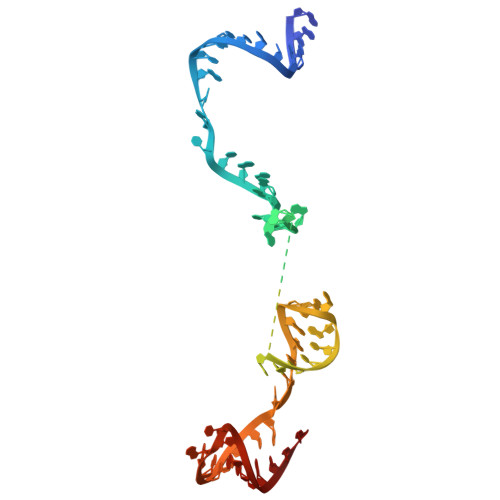

RNA (56-MER)	B	70	Streptococcus pyogenes
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.67 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC	4.4.0
MODEL REFINEMENT	PHENIX	1.20.1

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-03-26

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	--

Revision History (Full details and data files)

Version 1.0: 2025-03-26
Type: Initial release
