9B0X | pdb_00009b0x

Artemia franciscana ATP synthase state 2 (composite structure), pH 7.0

  • Classification: MEMBRANE PROTEIN
  • Organism(s): Artemia franciscana
  • Mutation(s): No

  • Deposited: 2024-03-12 Released: 2025-03-26
  • Deposition Author(s): Mnatsakanyan, N., Mello, J.F.R.
  • Funding Organization(s): National Institutes of Health/National Institute on Aging (NIH/NIA), National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: integrative
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Cryo-EM structure of the brine shrimp mitochondrial ATP synthase suggests an inactivation mechanism for the ATP synthase leak channel.

Kumar, A.da Fonseca Rezende E Mello, J.Wu, Y.Morris, D.Mezghani, I.Smith, E.Rombauts, S.Bossier, P.Krahn, J.Sigworth, F.J.Mnatsakanyan, N.

(2025) Cell Death Differ 32: 1518-1535

  • DOI: https://doi.org/10.1038/s41418-025-01476-w
  • Primary Citation of Related Structures:
    9B0X, 9B3J, 9BPG

  • PubMed Abstract:

    Mammalian mitochondria undergo Ca 2+ -induced and cyclosporinA (CsA)-regulated permeability transition (mPT) by activating the mitochondrial permeability transition pore (mPTP) situated in mitochondrial inner membranes. Ca 2+ -induced prolonged openings of mPTP under certain pathological conditions result in mitochondrial swelling and rupture of the outer membrane, leading to mitochondrial dysfunction and cell death. While the exact molecular composition and structure of mPTP remain unknown, mammalian ATP synthase was reported to form voltage and Ca 2+ -activated leak channels involved in mPT. Unlike in mammals, mitochondria of the crustacean Artemia franciscana have the ability to accumulate large amounts of Ca 2+ without undergoing the mPT. Here, we performed structural and functional analysis of A. franciscana ATP synthase to study the molecular mechanism of mPTP inhibition in this organism. We found that the channel formed by the A. franciscana ATP synthase dwells predominantly in its inactive state and is insensitive to Ca 2+ , in contrast to porcine heart ATP synthase. Single-particle cryo-electron microscopy (cryo-EM) analysis revealed distinct structural features in A. franciscana ATP synthase compared with mammals. The stronger density of the e-subunit C-terminal region and its enhanced interaction with the c-ring were found in A. franciscana ATP synthase. These data suggest an inactivation mechanism of the ATP synthase leak channel and its possible contribution to the lack of mPT in this organism.


  • Organizational Affiliation
    • Department of Cell and Biological Systems, Penn State College of Medicine, Hershey, PA, USA.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

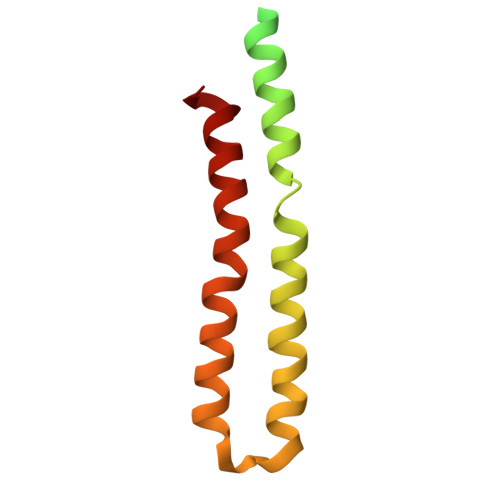

ATP synthase subunit c128Artemia franciscanaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

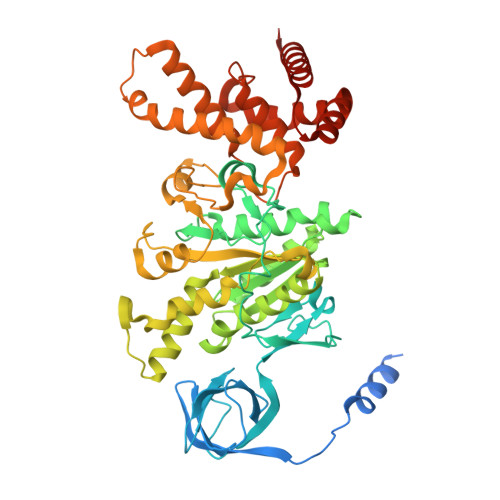

ATP synthase subunit alphaI [auth A],
J [auth B],
K [auth C]
551Artemia franciscanaMutation(s): 0
UniProt
Find proteins for A0AA88HWD9 (Artemia franciscana)
Explore A0AA88HWD9
Go to UniProtKB:  A0AA88HWD9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88HWD9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit betaL [auth D],
M [auth E],
N [auth F]
524Artemia franciscanaMutation(s): 0
EC: 7.1.2.2
UniProt
Find proteins for A0AA88HL63 (Artemia franciscana)
Explore A0AA88HL63
Go to UniProtKB:  A0AA88HL63
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88HL63
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit gammaO [auth G]290Artemia franciscanaMutation(s): 0
UniProt
Find proteins for A0AA88HFG7 (Artemia franciscana)
Explore A0AA88HFG7
Go to UniProtKB:  A0AA88HFG7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88HFG7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit deltaP [auth H]169Artemia franciscanaMutation(s): 0
UniProt
Find proteins for A0AA88HW56 (Artemia franciscana)
Explore A0AA88HW56
Go to UniProtKB:  A0AA88HW56
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88HW56
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit epsilonQ [auth I]66Artemia franciscanaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase inhibitory factor 1, IF1R [auth J]105Artemia franciscanaMutation(s): 0
UniProt
Find proteins for A3KNL5 (Danio rerio)
Explore A3KNL5
Go to UniProtKB:  A3KNL5
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA3KNL5
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase subunit bS [auth K]265Artemia franciscanaMutation(s): 0
UniProt
Find proteins for A0AA88H718 (Artemia franciscana)
Explore A0AA88H718
Go to UniProtKB:  A0AA88H718
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88H718
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage
ATP synthase coupling factor 6, F6T [auth L]99Artemia franciscanaMutation(s): 0
UniProt
Find proteins for A0AA88HKM7 (Artemia franciscana)
Explore A0AA88HKM7
Go to UniProtKB:  A0AA88HKM7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88HKM7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage

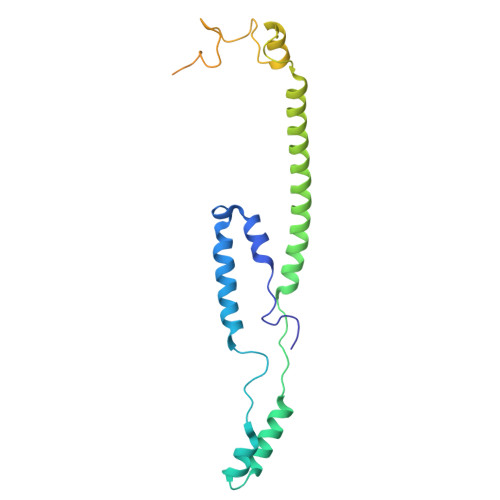

ATP synthase subunit dU [auth M]219Artemia franciscanaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage

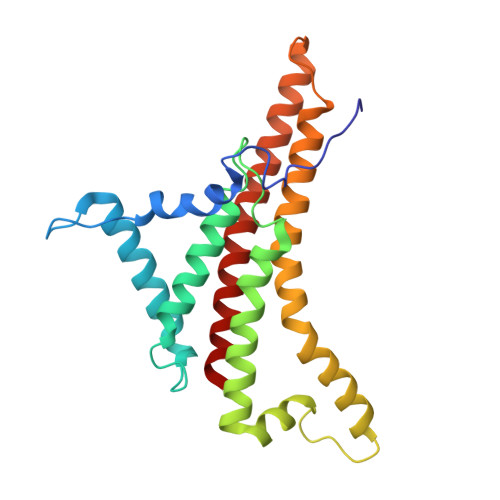

ATP synthase subunit aV [auth N]219Artemia franciscanaMutation(s): 0
UniProt
Find proteins for Q37708 (Artemia franciscana)
Explore Q37708
Go to UniProtKB:  Q37708
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ37708
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage

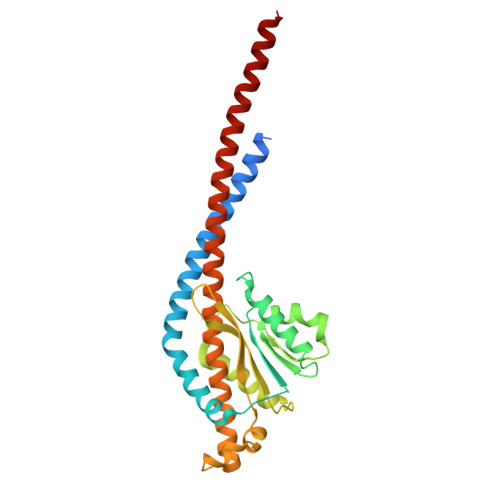

ATP synthase subunit OSCPW [auth O]207Artemia franciscanaMutation(s): 0
UniProt
Find proteins for A0AA88HW36 (Artemia franciscana)
Explore A0AA88HW36
Go to UniProtKB:  A0AA88HW36
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88HW36
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage

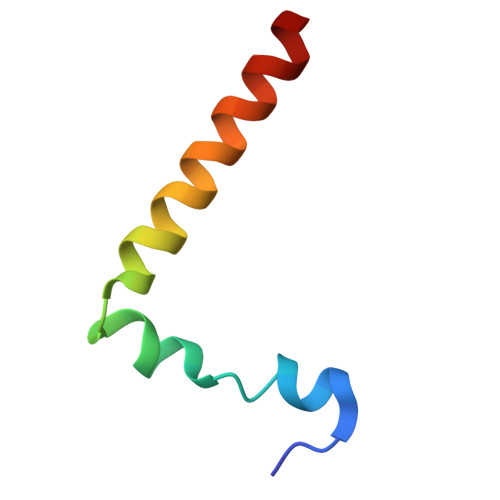

ATP synthase subunit 6.8PLX [auth P]44Artemia franciscanaMutation(s): 0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage

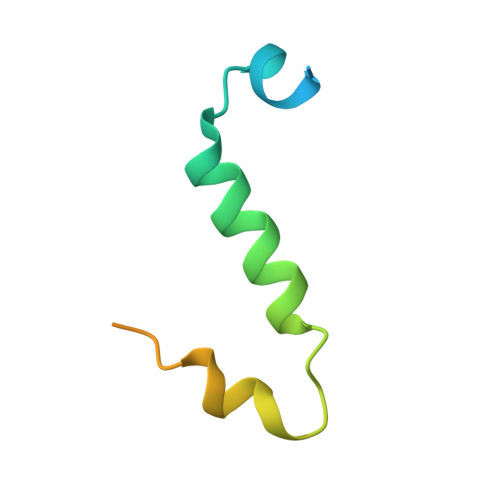

ATP synthase protein 8Y [auth Q]53Artemia franciscanaMutation(s): 0
UniProt
Find proteins for Q37707 (Artemia franciscana)
Explore Q37707
Go to UniProtKB:  Q37707
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ37707
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 15
MoleculeChains Sequence LengthOrganismDetailsImage

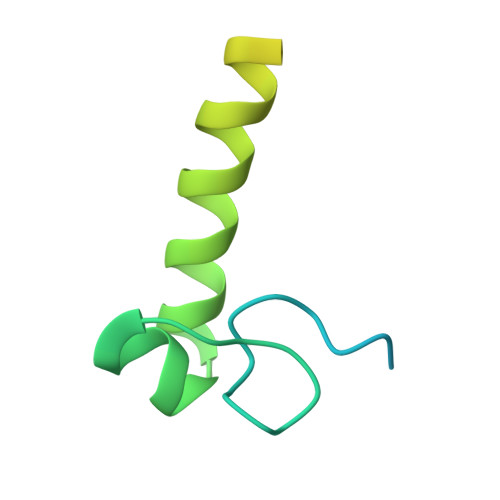

ATP synthase subunit fZ [auth R]119Artemia franciscanaMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 16
MoleculeChains Sequence LengthOrganismDetailsImage

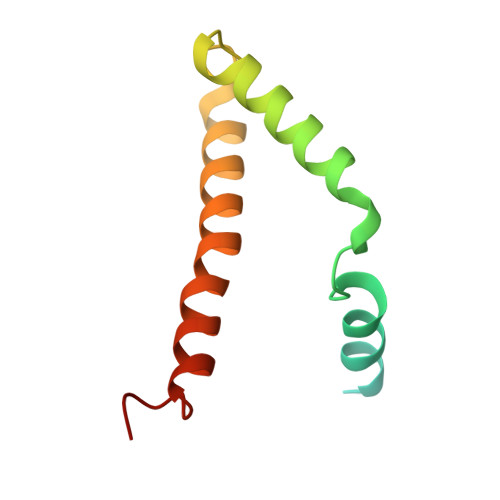

ATP synthase subunit gAA [auth S]103Artemia franciscanaMutation(s): 0
UniProt
Find proteins for A0AA88HPA7 (Artemia franciscana)
Explore A0AA88HPA7
Go to UniProtKB:  A0AA88HPA7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88HPA7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 17
MoleculeChains Sequence LengthOrganismDetailsImage

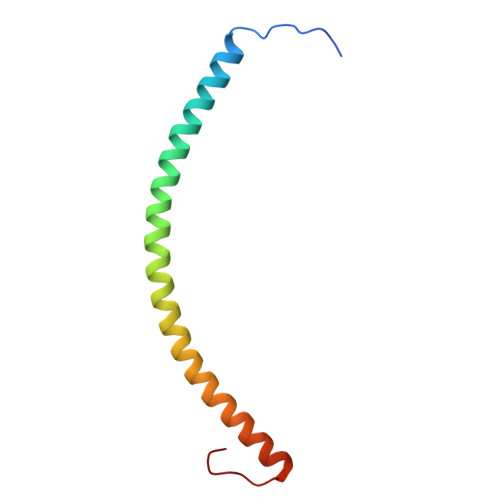

ATP synthase subunit eBA [auth T]84Artemia franciscanaMutation(s): 0
UniProt
Find proteins for A0AA88HBT7 (Artemia franciscana)
Explore A0AA88HBT7
Go to UniProtKB:  A0AA88HBT7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0AA88HBT7
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
CDL (Subject of Investigation/LOI)
Query on CDL

Download Ideal Coordinates CCD File
MA [auth K],
NA [auth K]
CARDIOLIPIN
C81 H156 O17 P2
XVTUQDWPJJBEHJ-KZCWQMDCSA-L
ATP (Subject of Investigation/LOI)
Query on ATP

Download Ideal Coordinates CCD File
CA [auth A],
EA [auth B],
GA [auth C],
IA [auth D]
ADENOSINE-5'-TRIPHOSPHATE
C10 H16 N5 O13 P3
ZKHQWZAMYRWXGA-KQYNXXCUSA-N
ADP (Subject of Investigation/LOI)
Query on ADP

Download Ideal Coordinates CCD File
KA [auth E]ADENOSINE-5'-DIPHOSPHATE
C10 H15 N5 O10 P2
XTWYTFMLZFPYCI-KQYNXXCUSA-N
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
DA [auth A],
FA [auth B],
HA [auth C],
JA [auth D],
LA [auth E]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.2_5419

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute on Aging (NIH/NIA)United StatesRF1AG072484
National Institutes of Health/National Institute of Neurological Disorders and Stroke (NIH/NINDS)United StatesR21NS137275

Revision History  (Full details and data files)

  • Version 1.0: 2025-03-26
    Type: Initial release
  • Version 1.1: 2025-08-13
    Changes: Data collection, Database references
