9AR5 | pdb_00009ar5

Structure of Acidothermus cellulolyticus Cas9 bound with methylated DNA

• PDB DOI: https://doi.org/10.2210/pdb9AR5/pdb
• EM Map EMD-43770: EMDB EMDataResource
• NAKB: 9AR5

• Classification: DNA BINDING PROTEIN/DNA/RNA
• Organism(s): Acidothermus cellulolyticus
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2024-02-22 Released: 2025-02-26
• Deposition Author(s): Das, A., Rai, J., Wang, B., Li, H.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 2.88 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Molecular basis for methylation-sensitive editing by Cas9

Roth, M.O., Shu, Y., Zhao, Y., Trasanidou, D., Hoffman, R.D., Trasanidis, N., Gelasco, M.K., Medina, M.L., Das, D., Rai, J., Wang, B., Li, H.

(2026) Nature

• DOI: https://doi.org/10.1038/s41586-026-10384-z

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 172.77 kDa
• Atom Count: 11,414
• Modeled Residue Count: 1,233
• Deposited Residue Count: 1,280
• Unique protein chains: 1
• Unique nucleic acid chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

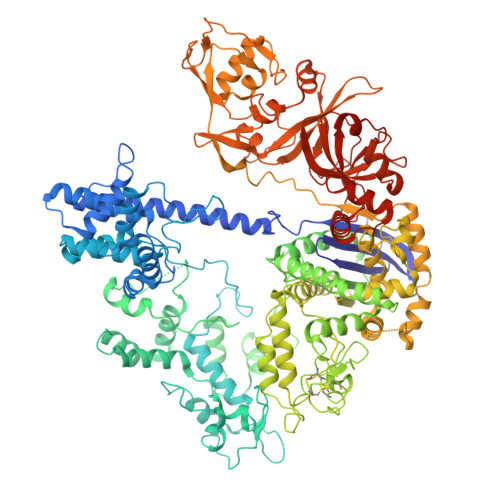

CRISPR-associated endonuclease, Csn1 family	A	1,138	Acidothermus cellulolyticus	Mutation(s): 0  Gene Names: Acel_1951
UniProt
Find proteins for A0LWB3 (Acidothermus cellulolyticus (strain ATCC 43068 / DSM 8971 / 11B)) Explore A0LWB3  Go to UniProtKB:  A0LWB3

Entity ID: 2
Molecule	Chains	Length	Organism	Image

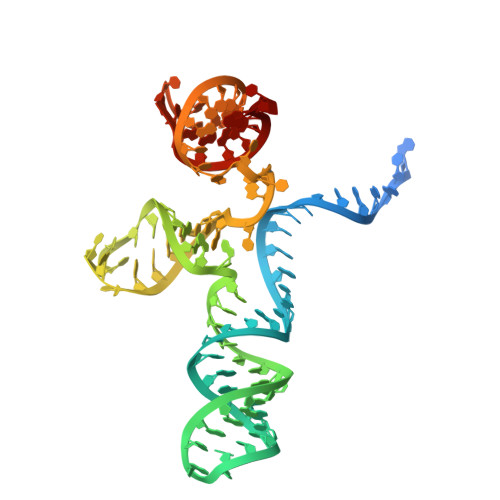

RNA (92-MER)	B	106	Acidothermus cellulolyticus

Entity ID: 3
Molecule	Chains	Length	Organism	Image

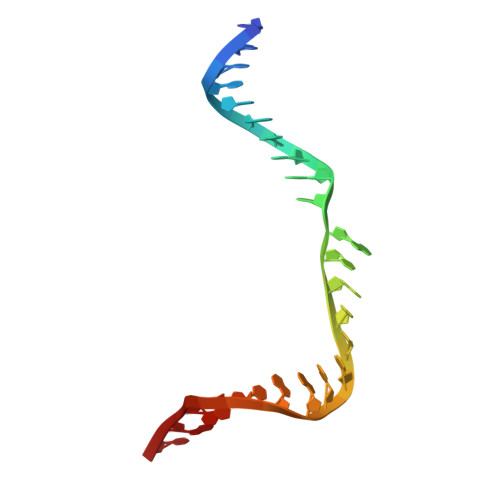

DNA (25-MER)	C [auth X]	25	Acidothermus cellulolyticus

Entity ID: 4
Molecule	Chains	Length	Organism	Image

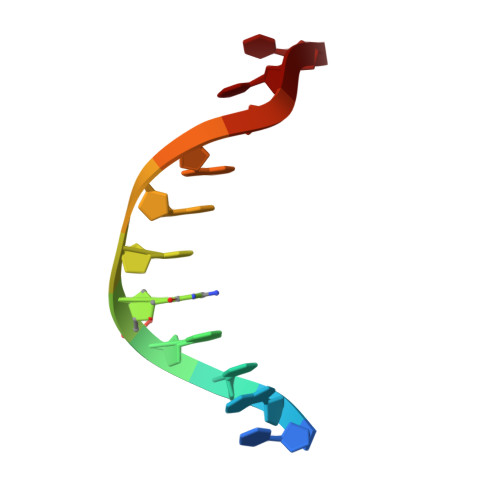

DNA/RNA (5'-D(P*TP*AP*CP*A)-R(P*(5MC))-D(P*CP*AP*AP*GP*CP*T)-3')	D	11	Acidothermus cellulolyticus

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 2.88 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2025-02-26
Deposition Author(s): Das, A., Rai, J., Wang, B., Li, H.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	GM099604

Revision History

• Version 1.0: 2025-02-26
  Type: Initial release

• Version 1.1: 2026-04-15
  Changes: Data collection, Database references
