9U8N | pdb_00009u8n

Crystal structure of cupin-domain containing protein (AzcA) forming triazine (6-amino-4-oxo-4,5-dihydro-1,3,5-triazine-2-carboxylic acid) moiety from Streptomyces mobaraensis in complex with manganese and imidazole

PDB DOI: https://doi.org/10.2210/pdb9U8N/pdb

Classification: OXIDOREDUCTASE
Organism(s): Streptomyces mobaraensis
Expression System: Escherichia coli M15
Mutation(s): No

Deposited: 2025-03-26 Released: 2026-04-01
Deposition Author(s): Nakashima, Y., Tsunoda, T., Ogasawara, Y., Dairi, T., Morita, H.
Funding Organization(s): Japan Society for the Promotion of Science (JSPS)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.05 Å
R-Value Free:
0.277 (Depositor), 0.278 (DCC)
R-Value Work:
0.218 (Depositor), 0.219 (DCC)
R-Value Observed:
0.222 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of cupin-domain containing protein (AzcA) from Streptomyces mobaraensis in complex with manganese and imidazole

Nakashima, Y., Morita, H.

To be published.

Macromolecule Content

Total Structure Weight: 45.48 kDa
Atom Count: 3,230
Modeled Residue Count: 386
Deposited Residue Count: 400
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

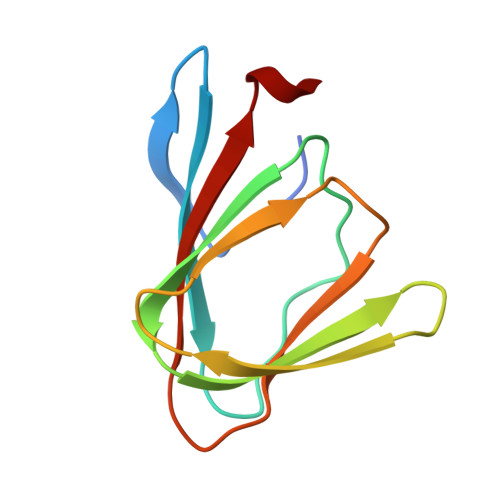

Cupin type-2 domain-containing protein	A, B, C, D	100	Streptomyces mobaraensis	Mutation(s): 0 Gene Names: H7K43_04140

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
IMD (Subject of Investigation/LOI) Query on IMD Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain H [auth B] SDF format, chain I [auth B] SDF format, chain K [auth C] SDF format, chain M [auth D] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain H [auth B] MOL2 format, chain I [auth B] MOL2 format, chain K [auth C] MOL2 format, chain M [auth D] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain H [auth B] mmCIF format, chain I [auth B] mmCIF format, chain K [auth C] mmCIF format, chain M [auth D]	E [auth A] F [auth A] H [auth B] I [auth B] K [auth C] E [auth A], F [auth A], H [auth B], I [auth B], K [auth C], M [auth D]	IMIDAZOLE C₃ H₅ N₂ RAXXELZNTBOGNW-UHFFFAOYSA-O		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain K [auth C] Focus chain M [auth D] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain K [auth C] Focus chain M [auth D]
MN Query on MN Download:Ideal Coordinates CCD File SDF format, chain N [auth D] SDF format, chain L [auth C] SDF format, chain J [auth B] SDF format, chain G [auth A] MOL2 format, chain N [auth D] MOL2 format, chain L [auth C] MOL2 format, chain J [auth B] MOL2 format, chain G [auth A] mmCIF format, chain N [auth D] mmCIF format, chain L [auth C] mmCIF format, chain J [auth B] mmCIF format, chain G [auth A]	G [auth A], J [auth B], L [auth C], N [auth D]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain J [auth B] Focus chain L [auth C] Focus chain N [auth D] Interactions & Density Focus chain G [auth A] Focus chain J [auth B] Focus chain L [auth C] Focus chain N [auth D]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.05 Å
R-Value Free: 0.277 (Depositor), 0.278 (DCC)
R-Value Work: 0.218 (Depositor), 0.219 (DCC)
R-Value Observed: 0.222 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 58.391	α = 90
b = 72.311	β = 90
c = 97.476	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-01

Deposition Author(s):

Funding Organization	Location	Grant Number
Japan Society for the Promotion of Science (JSPS)	Japan	22H04976
Japan Society for the Promotion of Science (JSPS)	Japan	18H03937
Japan Society for the Promotion of Science (JSPS)	Japan	22H05130
