8ZSI | pdb_00008zsi

CryoEM Helical Structure of HAM-SIR2 with dITP and NAD fragment

PDB DOI: https://doi.org/10.2210/pdb8ZSI/pdb
EM Map EMD-60416: EMDB EMDataResource

Classification: IMMUNE SYSTEM
Organism(s): Escherichia coli
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2024-06-05 Released: 2025-12-10
Deposition Author(s): Hao, F., Eddie, T., Bin, W., Min, L.
Funding Organization(s): Ministry of Education (MoE, Singapore)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.10 Å
Aggregation State: FILAMENT
Reconstruction Method: HELICAL

wwPDB Validation 3D Report Full Report

Validation slider image for 8ZSI

This is version 1.0 of the entry. See complete history.

Literature

CryoEM Helical Structure of HAM-SIR2 with dITP and NAD fragment

Hao, F., Eddie, T., Bin, W., Min, L.

To be published.

Macromolecule Content

Total Structure Weight: 209.37 kDa
Atom Count: 14,740
Modeled Residue Count: 1,792
Deposited Residue Count: 1,792
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

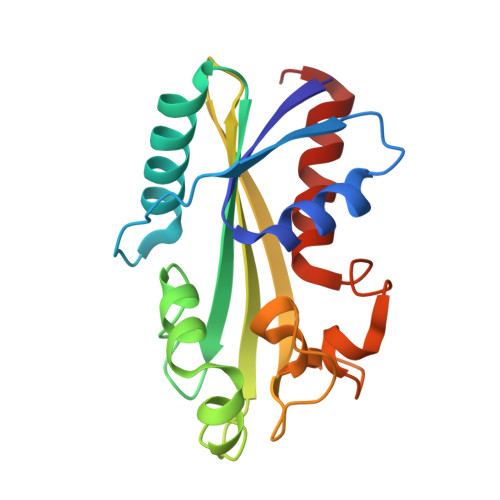

Non-canonical purine NTP pyrophosphatase	A, B, C, D	184	Escherichia coli	Mutation(s): 0 Gene Names: GRW56_02065, GRW57_01900
UniProt
Find proteins for K8WC63 (Providencia sneebia DSM 19967) Explore K8WC63 Go to UniProtKB: K8WC63
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	K8WC63
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

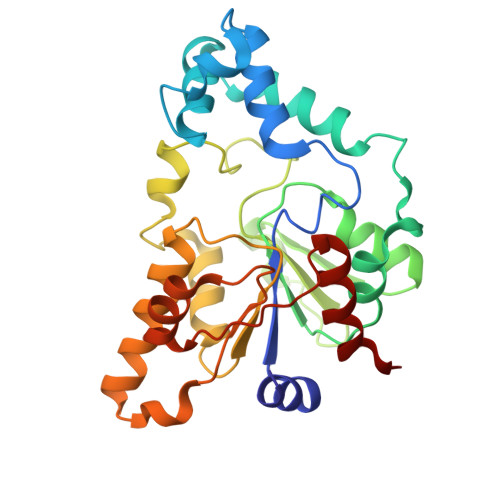

Sir2 family NAD-dependent protein deacetylase	E, F, G, H	264	Escherichia coli	Mutation(s): 0 Gene Names: GRW56_02060, GRW57_01895
UniProt
Find proteins for K8WJ15 (Providencia sneebia DSM 19967) Explore K8WJ15 Go to UniProtKB: K8WJ15
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	K8WJ15
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAD (Subject of Investigation/LOI) Query on NAD Download:Ideal Coordinates CCD File SDF format, chain N [auth H] SDF format, chain M [auth E] MOL2 format, chain N [auth H] MOL2 format, chain M [auth E] mmCIF format, chain N [auth H] mmCIF format, chain M [auth E]	M [auth E], N [auth H]	NICOTINAMIDE-ADENINE-DINUCLEOTIDE C₂₁ H₂₇ N₇ O₁₄ P₂ BAWFJGJZGIEFAR-NNYOXOHSSA-N		Interactions Focus chain M [auth E] Focus chain N [auth H] Interactions & Density Focus chain M [auth E] Focus chain N [auth H]
Y43 (Subject of Investigation/LOI) Query on Y43 Download:Ideal Coordinates CCD File SDF format, chain L [auth D] SDF format, chain K [auth C] SDF format, chain J [auth B] SDF format, chain I [auth A] MOL2 format, chain L [auth D] MOL2 format, chain K [auth C] MOL2 format, chain J [auth B] MOL2 format, chain I [auth A] mmCIF format, chain L [auth D] mmCIF format, chain K [auth C] mmCIF format, chain J [auth B] mmCIF format, chain I [auth A]	I [auth A], J [auth B], K [auth C], L [auth D]	2'-deoxyinosine 5'-triphosphate C₁₀ H₁₅ N₄ O₁₃ P₃ UFJPAQSLHAGEBL-RRKCRQDMSA-N		Interactions Focus chain I [auth A] Focus chain J [auth B] Focus chain K [auth C] Focus chain L [auth D] Interactions & Density Focus chain I [auth A] Focus chain J [auth B] Focus chain K [auth C] Focus chain L [auth D]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.10 Å
Aggregation State: FILAMENT
Reconstruction Method: HELICAL

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-12-10

Deposition Author(s):

Funding Organization	Location	Grant Number
Ministry of Education (MoE, Singapore)	Singapore	--

Revision History (Full details and data files)

Version 1.0: 2025-12-10
Type: Initial release
