8Z1U | pdb_00008z1u

Crystal structure of aminoglycoside efflux transporter MexY from Pseudomonas aeruginosa

PDB DOI: https://doi.org/10.2210/pdb8Z1U/pdb

Classification: MEMBRANE PROTEIN
Organism(s): Pseudomonas aeruginosa
Expression System: Escherichia coli
Mutation(s): No
Membrane Protein: Yes MemProtMD

Deposited: 2024-04-12 Released: 2025-10-15
Deposition Author(s): Murakami, S., Yamashita, E., Okada, U., Aoki, M.
Funding Organization(s): Japan Society for the Promotion of Science (JSPS)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.89 Å
R-Value Free:
0.270 (Depositor), 0.266 (DCC)
R-Value Work:
0.253 (Depositor), 0.244 (DCC)
R-Value Observed:
0.254 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of aminoglycoside efflux transporter MexY from Pseudomonas aeruginosa

Murakami, S., Okada, U., Yamashita, E.

To be published.

Macromolecule Content

Total Structure Weight: 115.1 kDa
Atom Count: 7,938
Modeled Residue Count: 1,027
Deposited Residue Count: 1,054
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

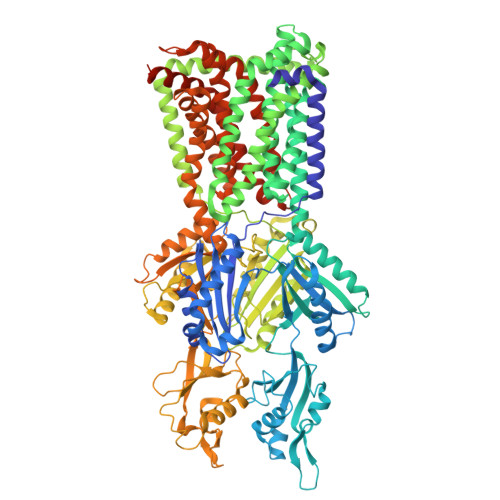

Efflux pump membrane transporter	A	1,054	Pseudomonas aeruginosa	Mutation(s): 0 Gene Names: amrB Membrane Entity: Yes
UniProt
Find proteins for G3XCW2 (Pseudomonas aeruginosa (strain ATCC 15692 / DSM 22644 / CIP 104116 / JCM 14847 / LMG 12228 / 1C / PRS 101 / PAO1)) Explore G3XCW2 Go to UniProtKB: G3XCW2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	G3XCW2
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
SO4 Query on SO4 Download:Ideal Coordinates CCD File SDF format, chain B [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] SDF format, chain J [auth A] SDF format, chain K [auth A] SDF format, chain L [auth A] SDF format, chain C [auth A] MOL2 format, chain B [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] MOL2 format, chain J [auth A] MOL2 format, chain K [auth A] MOL2 format, chain L [auth A] MOL2 format, chain C [auth A] mmCIF format, chain B [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A] mmCIF format, chain J [auth A] mmCIF format, chain K [auth A] mmCIF format, chain L [auth A] mmCIF format, chain C [auth A]	B [auth A] C [auth A] D [auth A] E [auth A] F [auth A] B [auth A], C [auth A], D [auth A], E [auth A], F [auth A], G [auth A], H [auth A], I [auth A], J [auth A], K [auth A], L [auth A]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain B [auth A] Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A] Interactions & Density Focus chain B [auth A] Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Focus chain L [auth A]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.89 Å
R-Value Free: 0.270 (Depositor), 0.266 (DCC)
R-Value Work: 0.253 (Depositor), 0.244 (DCC)
R-Value Observed: 0.254 (Depositor)

Space Group: P 6₁ 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 186.432	α = 90
b = 186.432	β = 90
c = 374.011	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
PHENIX	phasing
XSCALE	data scaling

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-10-15

Deposition Author(s):

Funding Organization	Location	Grant Number
Japan Society for the Promotion of Science (JSPS)	Japan	JP21H02412
Japan Society for the Promotion of Science (JSPS)	Japan	JP21K19337
Japan Society for the Promotion of Science (JSPS)	Japan	JP18K06079
