8YSH

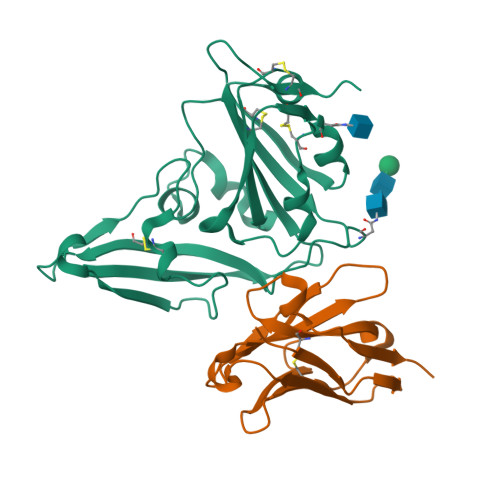

MERS-CoV RBD in complex with nanobody Nb14


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.99 Å
  • R-Value Free: 0.239
  • R-Value Work: 0.229
  • R-Value Observed: 0.229

Starting Models: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.1 of the entry. See complete history


Literature

Structure defining of ultrapotent neutralizing nanobodies against MERS-CoV with novel epitopes on receptor binding domain.

Ma, S.Zhang, D.Wang, Q.Zhu, L.Wu, X.Ye, S.Wang, Y.

(2024) PLoS Pathog 20: e1012438-e1012438

  • DOI: https://doi.org/10.1371/journal.ppat.1012438
  • Primary Citation of Related Structures:
    8YSF, 8YSH

  • PubMed Abstract:

    The Middle East Respiratory Syndrome Coronavirus (MERS-CoV) causes severe and fatal acute respiratory disease in humans. High fatality rates and continued infectiousness remain a pressing concern for global health preparedness. Antibodies targeted at the receptor-binding domain (RBD) are major countermeasures against human viral infection. Here, we report four potent nanobodies against MERS-CoV, which are isolated from alpaca, and especially the potency of Nb14 is highest in the pseudotyped virus assay. Structural studies show that Nb14 framework regions (FRs) are mainly involved in interactions targeting a novel epitope, which is entirely distinct from all previously reported antibodies, and disrupt the protein-carbohydrate interaction between residue W535 of RBD and hDPP4 N229-linked carbohydrate moiety (hDPP4-N229-glycan). Different from Nb14, Nb9 targets the cryptic face of RBD, which is distinctive from the hDPP4 binding site and the Nb14 epitope, and it induces the β5-β6 loop to inflect towards a shallow groove of the RBD and dampens the accommodation of a short helix of hDPP4. The particularly striking epitopes endow the two Nbs administrate synergistically in the pseudotyped MERS-CoV assays. These results not only character unprecedented epitopes for antibody recognition but also provide promising agents for prophylaxis and therapy of MERS-CoV infection.


  • Organizational Affiliation

    Frontiers Science Center for Synthetic Biology (Ministry of Education), Tianjin Key Laboratory of Function and Application of Biological Macromolecular Structures, School of Life Sciences, Tianjin University, Tianjin, P.R. China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Spike glycoproteinA [auth B]209Middle East respiratory syndrome-related coronavirusMutation(s): 0
UniProt
Find proteins for R9UQ53 (Middle East respiratory syndrome-related coronavirus)
Explore R9UQ53
Go to UniProtKB:  R9UQ53
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupR9UQ53
Glycosylation
Glycosylation Sites: 2
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Nb14B [auth A]116Vicugna pacosMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Oligosaccharides

Help

Entity ID: 3
MoleculeChains Length2D Diagram Glycosylation3D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
C
3N-Glycosylation
Glycosylation Resources
GlyTouCan:  G15407YE
GlyCosmos:  G15407YE
GlyGen:  G15407YE
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
NAG (Subject of Investigation/LOI)
Query on NAG

Download Ideal Coordinates CCD File
D [auth B]2-acetamido-2-deoxy-beta-D-glucopyranose
C8 H15 N O6
OVRNDRQMDRJTHS-FMDGEEDCSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.99 Å
  • R-Value Free: 0.239
  • R-Value Work: 0.229
  • R-Value Observed: 0.229
  • Space Group: P 41 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 58.488α = 90
b = 58.488β = 90
c = 351.625γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PHENIXrefinement
XDSdata reduction
XDSdata scaling
PHASERphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Ministry of Science and Technology (MoST, China)China2020YFA0908500
National Natural Science Foundation of China (NSFC)China31971127
National Natural Science Foundation of China (NSFC)China81801998

Revision History  (Full details and data files)

  • Version 1.0: 2024-09-11
    Type: Initial release
  • Version 1.1: 2024-11-20
    Changes: Structure summary
