8Y32 | pdb_00008y32

BA.2.86-V483 RBD in complex with bACE2

PDB DOI: https://doi.org/10.2210/pdb8Y32/pdb
EM Map EMD-38866: EMDB EMDataResource

Classification: VIRAL PROTEIN
Organism(s): Bos taurus, Severe acute respiratory syndrome coronavirus 2
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2024-01-28 Released: 2024-11-13
Deposition Author(s): Yue, C., Liu, P.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 4.13 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 8Y32

This is version 1.2 of the entry. See complete history.

Literature

BA.2.86-V483 RBD in complex with bACE2

Yue, C., Liu, P.

To be published.

Macromolecule Content

Total Structure Weight: 116.88 kDa
Atom Count: 6,571
Modeled Residue Count: 791
Deposited Residue Count: 997
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

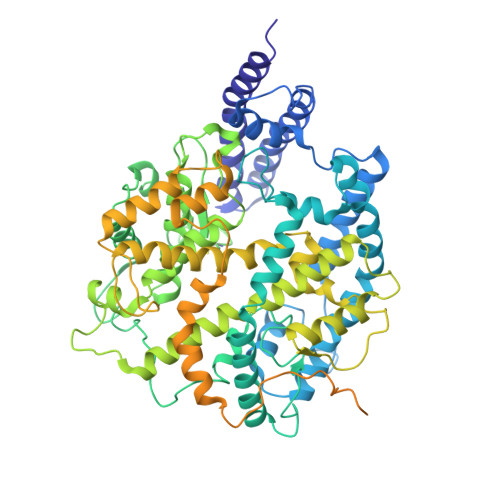

Angiotensin-converting enzyme	A	786	Bos taurus	Mutation(s): 0 Gene Names: ACE2 EC: 3.4
UniProt
Find proteins for Q2HJI5 (Bos taurus) Explore Q2HJI5 Go to UniProtKB: Q2HJI5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q2HJI5
Glycosylation
Glycosylation Sites: 4	Glycosylation Focus chain A
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

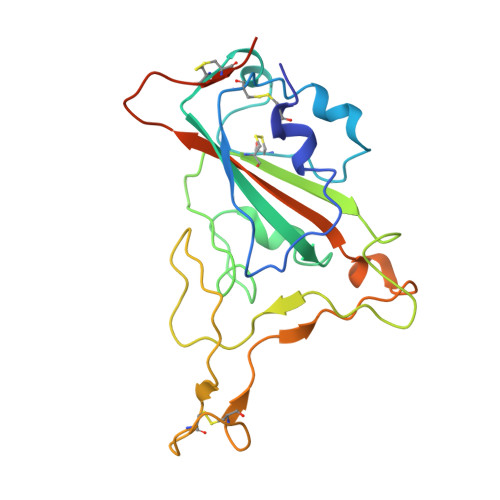

Spike protein S1 RBD	B	211	Severe acute respiratory syndrome coronavirus 2	Mutation(s): 0 Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2) Explore P0DTC2 Go to UniProtKB: P0DTC2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0DTC2
Glycosylation
Glycosylation Sites: 2	Glycosylation Focus chain B	Go to GlyGen: P0DTC2-1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG (Subject of Investigation/LOI) Query on NAG Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth B] SDF format, chain J [auth B] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth B] mmCIF format, chain J [auth B]	D [auth A] E [auth A] F [auth A] G [auth A] H [auth A] D [auth A], E [auth A], F [auth A], G [auth A], H [auth A], I [auth B], J [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth B] Focus chain J [auth B] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth B] Focus chain J [auth B]
CL Query on CL Download:Ideal Coordinates CCD File SDF format, chain C [auth A] MOL2 format, chain C [auth A] mmCIF format, chain C [auth A]	C [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain C [auth A] Interactions & Density Focus chain C [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 4.13 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2024-11-13

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2024-11-13
Type: Initial release
Version 1.1: 2024-11-27
Changes: Data collection
Version 1.2: 2025-07-23
Changes: Data collection
