8WRR | pdb_00008wrr

Cryo-EM structure of Cas12-1 with 10 nt complementary heteroduplex

PDB DOI: https://doi.org/10.2210/pdb8WRR/pdb
NAKB: 8WRR
EM Map EMD-37787: EMDB EMDataResource

Classification: RNA BINDING PROTEIN/RNA/DNA
Organism(s): unclassified sequences
Expression System: Escherichia coli BL21(DE3), unclassified sequences
Mutation(s): No

Deposited: 2023-10-16 Released: 2025-04-16
Deposition Author(s): Zhang, X., Zhang, K.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.10 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 8WRR

This is version 1.1 of the entry. See complete history.

Literature

Cryo-EM structure of Cas12-1 with 10 nt complementary heteroduplex

Zhang, X., Zhang, K.

To be published.

Macromolecule Content

Total Structure Weight: 127.15 kDa
Atom Count: 5,684
Modeled Residue Count: 618
Deposited Residue Count: 877
Unique protein chains: 1
Unique nucleic acid chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

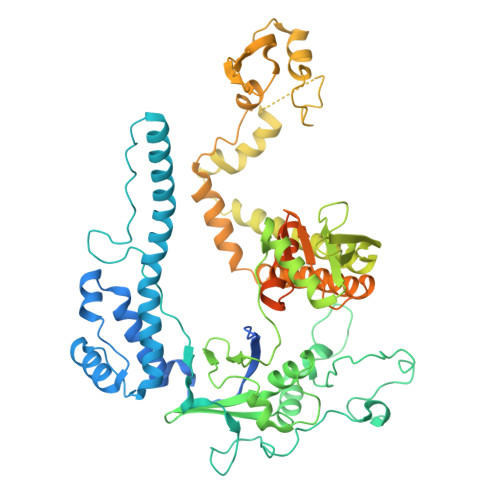

Cryo-EM structure of Cas12-1 with 5 nt complementary heteroduplex	A	737	unclassified sequences	Mutation(s): 0

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism	Image
Entity ID: 2
RNA (39-MER)	B	56	unclassified sequences
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism	Image
Entity ID: 3

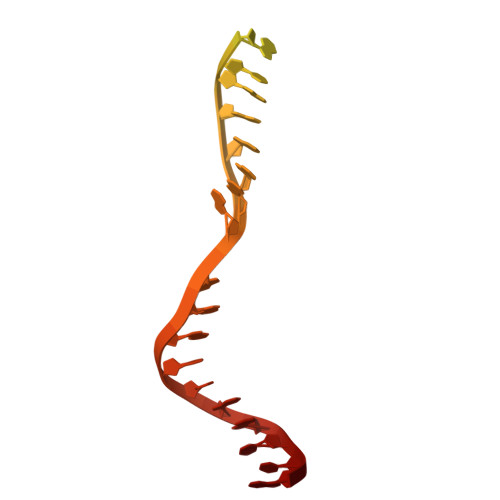

TS	C	42	unclassified sequences
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism	Image
Entity ID: 4

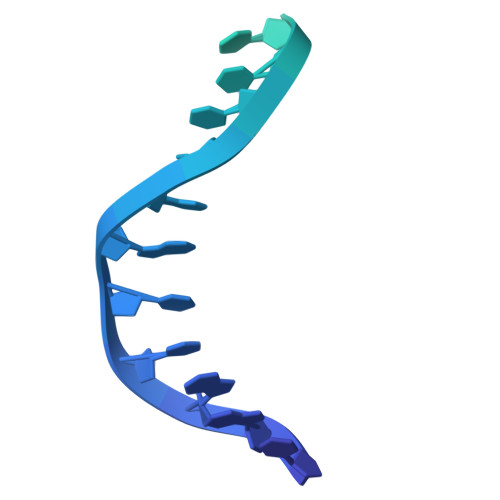

NTS	D	42	unclassified sequences
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.10 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-04-16

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	32188102

Revision History (Full details and data files)

Version 1.0: 2025-04-16
Type: Initial release
Version 1.1: 2025-06-18
Changes: Data collection
