8WIN | pdb_00008win

Durio zibethinus trypsin inhibitor DzTI-12


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free:
    0.276 (Depositor), 0.277 (DCC)
  • R-Value Work:
    0.239 (Depositor), 0.240 (DCC)
  • R-Value Observed:
    0.241 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 8WIN

This is version 1.2 of the entry. See complete history

Literature

Kunitz-type trypsin inhibitor from durian (Durio zibethinus) employs a distinct loop for trypsin inhibition.

Deetanya, P.Limsardsanakij, K.Sabat, G.Pattaradilokrat, S.Chaisuekul, C.Wangkanont, K.

(2024) Protein Sci 33: e5230-e5230

  • DOI: https://doi.org/10.1002/pro.5230
  • Primary Citation Related Structures:
    8WE5, 8WFO, 8WHC, 8WI1, 8WIN, 8WIO, 8WK1, 8WKB, 8WQ6

  • PubMed Abstract:

    Kunitz-type trypsin inhibitors are ubiquitous in plants. They have been proposed to be a part of a defense mechanism against herbivores. Trypsin inhibitors also have potential applications in the biotechnology industry, such as in mammalian cell culture. We discovered that durian (Durio zibethinus) seed contains Kunitz-type trypsin inhibitors as identified by N-terminal sequencing and mass spectrometry. Eleven new trypsin inhibitors were cloned. The D. zibethinus trypsin inhibitors (DzTIs) that are likely expressed in the seed were produced as recombinant proteins and tested for trypsin inhibitory activity. Their inhibitory activity and crystal structures are similar to the soybean trypsin inhibitor. Surprisingly, a crystal structure of the complex between DzTI-4, the DzTI with the lowest inhibitory constant, and bovine trypsin revealed that DzTI-4 utilized a novel tryptophan-containing β1-β2 loop to bind trypsin. Site-direct mutagenesis confirmed the inhibitory role of this loop. DzTI-4 was not toxic to the HEK293 cells and could be used in place of the soybean trypsin inhibitor for culturing the cells under serum-free conditions. DzTI-4 was not toxic to mealworms. However, a mixture of DzTIs extracted from durian seed prevented weight gain in mealworms, suggesting that multiple trypsin inhibitors are required to achieve the antinutritional effect. This study highlights the biochemical diversity of the inhibitory mechanism of Kunitz-type trypsin inhibitors and provides clues for further application of these inhibitors.


  • Organizational Affiliation
    • Center of Excellence for Molecular Biology and Genomics of Shrimp, Department of Biochemistry, Faculty of Science, Chulalongkorn University, Bangkok, Thailand.

Macromolecule Content

  • Total Structure Weight: 43.25 kDa
  • Atom Count: 2,895
  • Modeled Residue Count: 368
  • Deposited Residue Count: 388
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure

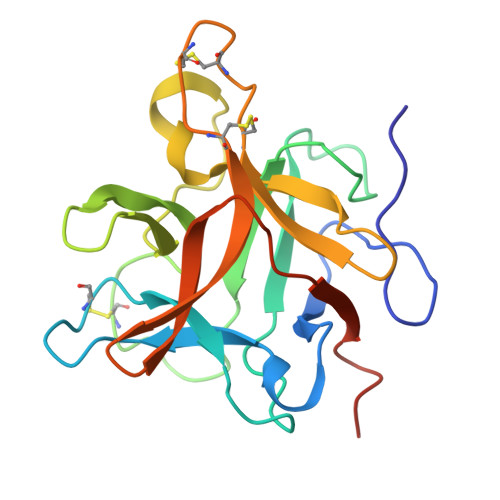

Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
21 kDa seed protein-like
A, B
194Durio zibethinusMutation(s): 0
Gene Names: LOC111287814
UniProt
Find proteins for A0A6P5Y2I1 (Durio zibethinus)
Explore A0A6P5Y2I1
Go to UniProtKB:  A0A6P5Y2I1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA0A6P5Y2I1
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free:  0.276 (Depositor), 0.277 (DCC)
  • R-Value Work:  0.239 (Depositor), 0.240 (DCC)
  • R-Value Observed: 0.241 (Depositor)
Space Group: H 3 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 197.571α = 90
b = 197.571β = 90
c = 91.137γ = 120
Software Package:
Software NamePurpose
XDSdata reduction
Aimlessdata scaling
PHASERphasing
PHENIXrefinement

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other governmentThailandNational Research Council of Thailand (NRCT), N42A650270
Other governmentThailandChulalongkorn University, RES_65_389_23_039
Other governmentThailandChulalongkorn University, CU_GR_62_28_23_10

Revision History  (Full details and data files)

  • Version 1.0: 2024-09-25
    Type: Initial release
  • Version 1.1: 2024-11-06
    Changes: Structure summary
  • Version 1.2: 2024-11-27
    Changes: Database references
