8VXL | pdb_00008vxl

Crystal Structure of the External Aldimine Complex of Pyridoxal-5'-Tetrazole and (S)-4-amino-5-phenoxypentanoate with the Bacillus subtilis GabR C-terminal Effector-binding and Oligomerization Domain


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.24 Å
  • R-Value Free:
    0.256 (Depositor), 0.256 (DCC)
  • R-Value Work:
    0.213 (Depositor), 0.213 (DCC)
  • R-Value Observed:
    0.214 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 8VXL

Ligand Structure Quality Assessment


This is version 1.0 of the entry. See complete history

Literature

Bioisosteric replacement of pyridoxal-5'-phosphate to pyridoxal-5'-tetrazole targeting Bacillus subtilis GabR.

Kaley, N.E.Liveris, Z.J.Moore, M.Reidl, C.T.Wawrzak, Z.Becker, D.P.Liu, D.

(2025) Protein Sci 34: e70014-e70014

  • DOI: https://doi.org/10.1002/pro.70014
  • Primary Citation Related Structures:
    8VXK, 8VXL

  • PubMed Abstract:

    Antimicrobial resistance is a significant cause of mortality globally due to infections, a trend that is expected to continue to rise. As existing treatments fail and new drug discovery slows, the urgency to develop novel antimicrobial therapeutics grows stronger. One promising strategy involves targeting bacterial systems exclusive to pathogens, such as the transcription regulator protein GabR. Expressed in diverse bacteria including Escherichia coli, Bordetella pertussis, and Klebsiella pneumoniae, GabR has no homolog in eukaryotes, making it an ideal therapeutic target. Bacillus subtilis GabR (bsGabR), the most studied variant, regulates its own transcription and activates genes for GABA aminotransferase (GabT) and succinic semialdehyde dehydrogenase (GabD). This intricate regulatory system presents a compelling antimicrobial target with the potential for agonistic intervention to disrupt bacterial gene expression and induce cellular dysfunction, especially in bacterial stress responses. To explore manipulation of this system and the potential of this protein as an antimicrobial target, an in-depth understanding of the unique PLP-dependent transcription regulation is critical. Herein, we report the successful structural modification of the cofactor PLP and demonstrate the biochemical reactivity of the PLP analog pyridoxal-5'-tetrazole (PLT). Through both spectrophotometric and X-ray crystallographic analyses, we explore the interaction between bsGabR and PLT, together with a synthesized GABA derivative (S)-4-amino-5-phenoxypentanoate (4-phenoxymethyl-GABA or 4PMG). Most notably, we present a crystal structure of the condensed, external aldimine complex within bsGabR. While PLT alone is not a drug candidate, it can act as a probe to study the detailed mechanism of GabR-mediated function. PLT employs a tetrazole moiety as a bioisosteric replacement for phosphate in PLP. In addition, the PLP-4PMG adduct observed in the structure may serve as a novel chemical scaffold for subsequent structure-based antimicrobial design.


  • Organizational Affiliation
    • Department of Chemistry and Biochemistry, Loyola University Chicago, Chicago, Illinois, USA.

Macromolecule Content

  • Total Structure Weight: 90.1 kDa
  • Atom Count: 6,029
  • Modeled Residue Count: 727
  • Deposited Residue Count: 766
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

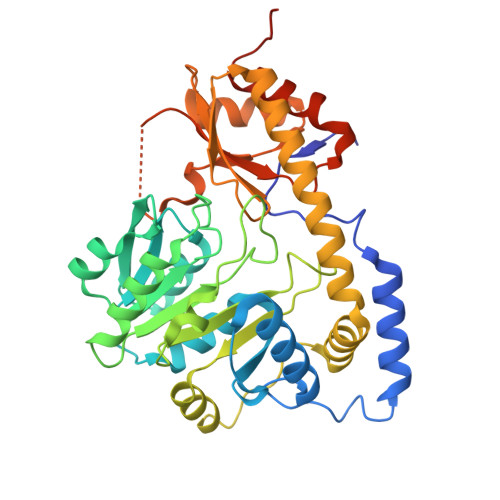

HTH-type transcriptional regulatory protein GabR
A, B
383Bacillus subtilis subsp. subtilis str. 168Mutation(s): 0
Gene Names: gabRycnFBSU03890
UniProt
Find proteins for P94426 (Bacillus subtilis (strain 168))
Explore P94426
Go to UniProtKB:  P94426
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP94426
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1AEJ
(Subject of Investigation/LOI)

Query on A1AEJ



Download:Ideal Coordinates CCD File
D [auth A],
H [auth B]
(4S)-4-[(E)-({3-hydroxy-2-methyl-5-[(E)-2-(1H-tetrazol-5-yl)ethenyl]pyridin-4-yl}methylidene)amino]-5-phenoxypentanoic acid
C21 H22 N6 O4
QOYDXQUIAOTQIK-QFAAUBHJSA-N
LYS

Query on LYS



Download:Ideal Coordinates CCD File
F [auth B],
G [auth B]
LYSINE
C6 H15 N2 O2
KDXKERNSBIXSRK-YFKPBYRVSA-O
PO4

Query on PO4



Download:Ideal Coordinates CCD File
L [auth B]PHOSPHATE ION
O4 P
NBIIXXVUZAFLBC-UHFFFAOYSA-K
GOL

Query on GOL



Download:Ideal Coordinates CCD File
C [auth A],
E [auth A],
I [auth B],
J [auth B],
K [auth B]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.24 Å
  • R-Value Free:  0.256 (Depositor), 0.256 (DCC)
  • R-Value Work:  0.213 (Depositor), 0.213 (DCC)
  • R-Value Observed: 0.214 (Depositor)
Space Group: P 41
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 118.319α = 90
b = 118.319β = 90
c = 75.197γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
xia2data reduction
xia2data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other government1R15GM113229-0

Revision History  (Full details and data files)

  • Version 1.0: 2025-01-08
    Type: Initial release
