8UZK

Crystal Structure of Betaine aldehyde dehydrogenase (BetB) from Klebsiella aerogenes (NADP+ bound)

• PDB DOI: https://doi.org/10.2210/pdb8UZK/pdb

• Classification: OXIDOREDUCTASE
• Organism(s): Klebsiella aerogenes KCTC 2190
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): Yes


• Deposited: 2023-11-15 Released: 2023-12-06
• Deposition Author(s): Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID)
• Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID), National Institutes of Health/Office of the Director

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.90 Å
• R-Value Free: 0.199
• R-Value Work: 0.161
• R-Value Observed: 0.163

Starting Model: experimental

Literature

Crystal Structure of Betaine aldehyde dehydrogenase (BetB) from Klebsiella aerogenes (NADP+ bound)

Liu, L., Lovell, S., Battaile, K.P., Cooper, A.

To be published.

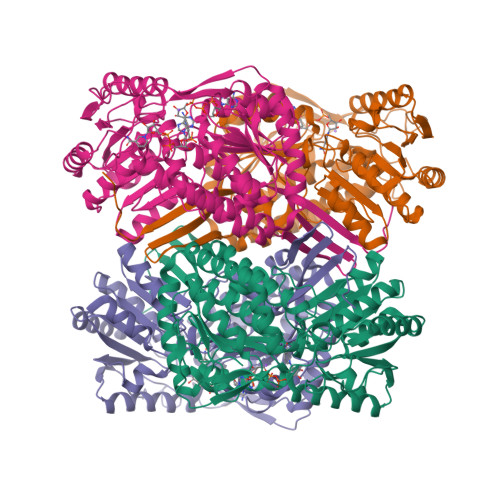

Biological Assembly 1

Global Symmetry: Dihedral - D2  (Explore in 3D)
Global Stoichiometry: Homo 4-mer - A4

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 220.06 kDa
• Atom Count: 16,230
• Modelled Residue Count: 1,950
• Deposited Residue Count: 1,996
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Betaine aldehyde dehydrogenase	A, B, C, D	499	Klebsiella aerogenes KCTC 2190	Mutation(s): 2  Gene Names: betB_3 EC: 1.2.1.8
UniProt
Find proteins for A0A0H3FPU4 (Klebsiella aerogenes (strain ATCC 13048 / DSM 30053 / CCUG 1429 / JCM 1235 / KCTC 2190 / NBRC 13534 / NCIMB 10102 / NCTC 10006 / CDC 819-56)) Explore A0A0H3FPU4  Go to UniProtKB:  A0A0H3FPU4

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NAP (Subject of Investigation/LOI)	E [auth A], G [auth B], I [auth C], K [auth D], L [auth D]	NADP NICOTINAMIDE-ADENINE-DINUCLEOTIDE PHOSPHATE C21 H28 N7 O17 P3 XJLXINKUBYWONI-NNYOXOHSSA-N
NA	F [auth A], H [auth B], J [auth C], M [auth D]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.90 Å
• R-Value Free: 0.199
• R-Value Work: 0.161
• R-Value Observed: 0.163
• Space Group: P 1 2₁ 1
• Diffraction Data: https://doi.org/10.18430/m38uzk

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 81.651	α = 90
b = 99.365	β = 96.61
c = 124.513	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
Aimless	data scaling
XDS	data reduction
PHASER	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2023-12-06
Deposition Author(s): Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID)

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	75N93022C00036
National Institutes of Health/Office of the Director	United States	S10OD030394

Revision History

• Version 1.0: 2023-12-06
  Type: Initial release
