8I4C

Cryo-EM structure of U46619-bound ABCC4

• PDB DOI: https://doi.org/10.2210/pdb8I4C/pdb
• EM Map EMD-35169: EMDB EMDataResource

• Classification: TRANSPORT PROTEIN
• Organism(s): Homo sapiens
• Expression System: Homo sapiens
• Mutation(s): No
• Membrane Protein: Yes  OPMPDBTMMemProtMD


• Deposited: 2023-01-19 Released: 2023-05-24
• Deposition Author(s): Chen, Y., Wang, L., Hou, W.T., Zhou, C.Z., Chen, Y., Li, Q.
• Funding Organization(s): Ministry of Science and Technology (MoST, China), Chinese Academy of Sciences

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.08 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Cryo-EM structure ofABCC4

Chen, Y., Wang, L., Hou, W.T., Zhou, C.Z., Chen, Y., Li, Q.

(2023) Nat Cardiovasc Res

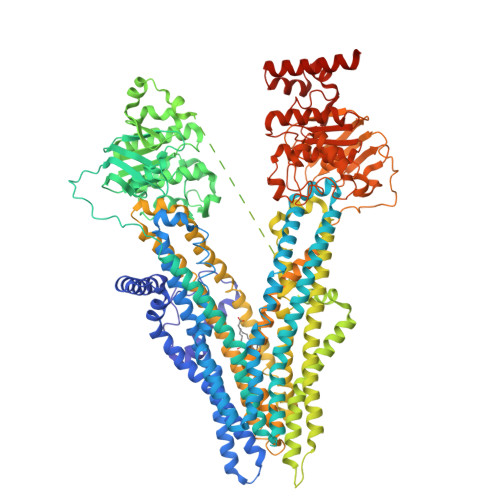

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 150.04 kDa
• Atom Count: 9,752
• Modelled Residue Count: 1,218
• Deposited Residue Count: 1,325
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
ATP-binding cassette sub-family C member 4	A	1,325	Homo sapiens	Mutation(s): 0  Gene Names: ABCC4, MOATB, MRP4 EC: 7.6.2 (PDB Primary Data), 7.6.2.2 (PDB Primary Data), 7.6.2.3 (PDB Primary Data) Membrane Entity: Yes
UniProt & NIH Common Fund Data Resources
Find proteins for O15439 (Homo sapiens) Explore O15439  Go to UniProtKB:  O15439
PHAROS:  O15439 GTEx:  ENSG00000125257

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
PUC (Subject of Investigation/LOI)	B [auth A]	(5Z)-7-{(1R,4S,5S,6R)-6-[(1E,3S)-3-hydroxyoct-1-en-1-yl]-2-oxabicyclo[2.2.1]hept-5-yl}hept-5-enoic acid C21 H34 O4 LQANGKSBLPMBTJ-BRSNVKEHSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.08 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.18.2_3874:

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2023-05-24
Deposition Author(s): Chen, Y., Wang, L., Hou, W.T., Zhou, C.Z., Chen, Y., Li, Q.

---

Funding Organization	Location	Grant Number
Ministry of Science and Technology (MoST, China)	China	2019YFA0508500
Chinese Academy of Sciences	China	XDB37020202

Revision History

• Version 1.0: 2023-05-24
  Type: Initial release

• Version 1.1: 2024-07-03
  Changes: Data collection
