8HDV

De novo design cavitated protein without predefined topology


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.65 Å
  • R-Value Free: 0.306
  • R-Value Work: 0.242
  • R-Value Observed: 0.245

wwPDB Validation   3D Report Full Report


This is version 1.3 of the entry. See complete history


Literature

De novo design of cavity-containing proteins with a backbone-centered neural network energy function.

Xu, Y.Hu, X.Wang, C.Liu, Y.Chen, Q.Liu, H.

(2024) Structure 32: 424

  • DOI: https://doi.org/10.1016/j.str.2024.01.006
  • Primary Citation of Related Structures:
    8HDU, 8HDV

  • PubMed Abstract:

    The design of small-molecule-binding proteins requires protein backbones that contain cavities. Previous design efforts were based on naturally occurring cavity-containing backbone architectures. Here, we designed diverse cavity-containing backbones without predefined architectures by introducing tailored restraints into the backbone sampling driven by SCUBA (Side Chain-Unknown Backbone Arrangement), a neural network statistical energy function. For 521 out of 5816 designs, the root-mean-square deviations (RMSDs) of the Cα atoms for the AlphaFold2-predicted structures and our designed structures are within 2.0 Å. We experimentally tested 10 designed proteins and determined the crystal structures of two of them. One closely agrees with the designed model, while the other forms a domain-swapped dimer, where the partial structures are in agreement with the designed structures. Our results indicate that data-driven methods such as SCUBA hold great potential for designing de novo proteins with tailored small-molecule-binding function.


  • Organizational Affiliation

    Department of Rheumatology and Immunology, The First Affiliated Hospital of USTC, Centre for Advanced Interdisciplinary Science and Biomedicine of IHM, Hefei National Center for Interdisciplinary Sciences at the Microscale, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, Anhui 230001, China; MOE Key Laboratory for Membraneless Organelles and Cellular Dynamics, Hefei National Laboratory for Physical Sciences at the Microscale, School of Life Sciences, Division of Life Sciences and Medicine, University of Science and Technology of China, Hefei, Anhui 230027, China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

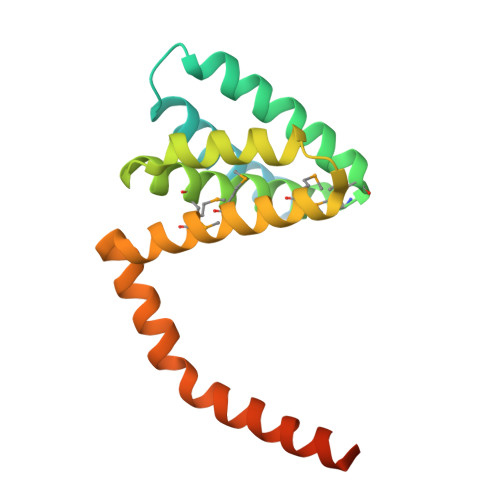

De novo design cavitated protein
A, B
183synthetic constructMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
MSE
Query on MSE
A, B
L-PEPTIDE LINKINGC5 H11 N O2 SeMET
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.65 Å
  • R-Value Free: 0.306
  • R-Value Work: 0.242
  • R-Value Observed: 0.245
  • Space Group: P 43
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 60.698α = 90
b = 60.698β = 90
c = 102.973γ = 90
Software Package:
Software NamePurpose
XDSdata reduction
PHENIXrefinement
AutoSolphasing
Aimlessdata scaling
PHENIXmodel building

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data

  • Released Date: 2023-01-18
  • Deposition Author(s): Hu, X., Xu, Y.

Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2023-01-18
    Type: Initial release
  • Version 1.1: 2024-02-07
    Changes: Data collection, Database references
  • Version 1.2: 2024-03-20
    Changes: Database references
  • Version 1.3: 2024-04-24
    Changes: Database references
