8DA9

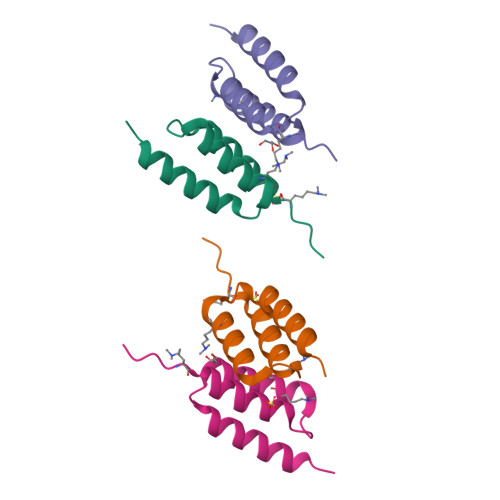

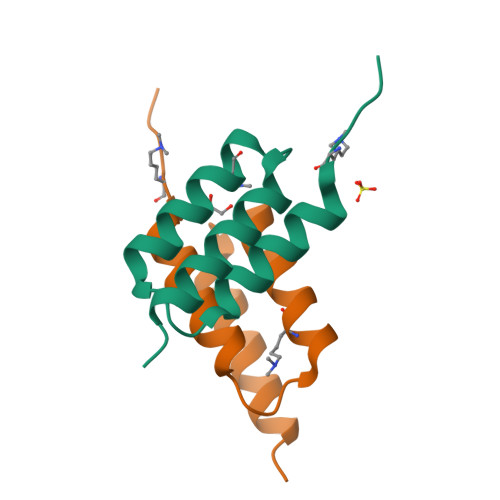

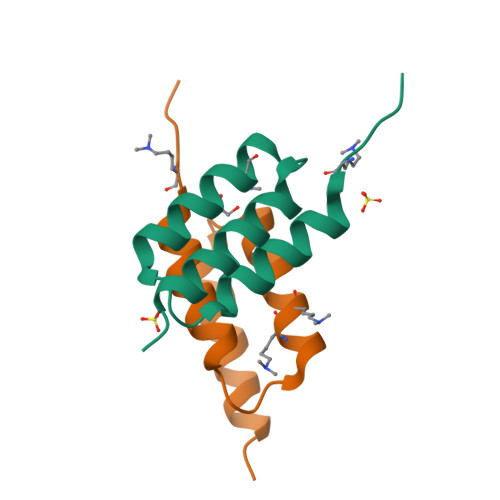

Coevolved affibody-Z domain pair LL2.c3


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.35 Å
  • R-Value Free: 0.198
  • R-Value Work: 0.175
  • R-Value Observed: 0.176

wwPDB Validation   3D Report Full Report


This is version 1.2 of the entry. See complete history


Literature

Deploying synthetic coevolution and machine learning to engineer protein-protein interactions.

Yang, A.Jude, K.M.Lai, B.Minot, M.Kocyla, A.M.Glassman, C.R.Nishimiya, D.Kim, Y.S.Reddy, S.T.Khan, A.A.Garcia, K.C.

(2023) Science 381: eadh1720-eadh1720

  • DOI: https://doi.org/10.1126/science.adh1720
  • Primary Citation of Related Structures:
    8DA3, 8DA4, 8DA5, 8DA6, 8DA7, 8DA8, 8DA9, 8DAA, 8DAB, 8DAC

  • PubMed Abstract:

    Fine-tuning of protein-protein interactions occurs naturally through coevolution, but this process is difficult to recapitulate in the laboratory. We describe a platform for synthetic protein-protein coevolution that can isolate matched pairs of interacting muteins from complex libraries. This large dataset of coevolved complexes drove a systems-level analysis of molecular recognition between Z domain-affibody pairs spanning a wide range of structures, affinities, cross-reactivities, and orthogonalities, and captured a broad spectrum of coevolutionary networks. Furthermore, we harnessed pretrained protein language models to expand, in silico, the amino acid diversity of our coevolution screen, predicting remodeled interfaces beyond the reach of the experimental library. The integration of these approaches provides a means of simulating protein coevolution and generating protein complexes with diverse molecular recognition properties for biotechnology and synthetic biology.


  • Organizational Affiliation

    Department of Molecular and Cellular Physiology, Stanford University School of Medicine, Stanford, CA 94305, USA.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Immunoglobulin G-binding protein A
A, C
67Staphylococcus aureusMutation(s): 4
Gene Names: spa
UniProt
Find proteins for P02976 (Staphylococcus aureus (strain NCTC 8325 / PS 47))
Explore P02976
Go to UniProtKB:  P02976
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02976
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Affibody LL2.FIIV67synthetic constructMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Affibody LL2.FIIV67synthetic constructMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

Unit Cell:
Length ( Å )Angle ( ˚ )
a = 53.403α = 90
b = 54.259β = 94.41
c = 68.601γ = 90
Software Package:
Software NamePurpose
Blu-Icedata collection
PHENIXrefinement
XDSdata reduction
BUSTERrefinement
PHENIXphasing
XDSdata reduction
Aimlessdata scaling

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Howard Hughes Medical Institute (HHMI)United States--
The G. Harold and Leila Y. Mathers FoundationUnited StatesMF-1802-00128

Revision History  (Full details and data files)

  • Version 1.0: 2023-07-26
    Type: Initial release
  • Version 1.1: 2023-08-09
    Changes: Database references
  • Version 1.2: 2023-11-22
    Changes: Data collection, Structure summary
