8BAG | pdb_00008bag

Copper(II) bound to a non-canonical quadruplex containing the damaged base 8-oxoguanine

PDB DOI: https://doi.org/10.2210/pdb8BAG/pdb
NAKB: 8BAG

Classification: DNA
Organism(s): synthetic construct
Mutation(s): No

Deposited: 2022-10-11 Released: 2023-10-25
Deposition Author(s): Lambert, M.C., Hall, J.P.
Funding Organization(s): Engineering and Physical Sciences Research Council

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.13 Å
R-Value Free:
0.172 (Depositor), 0.196 (DCC)
R-Value Work:
0.152 (Depositor)
R-Value Observed:
0.153 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 8BAG

This is version 1.1 of the entry. See complete history.

Literature

Oxidative damage induce copper(II)-DNA binding

Lambert, M.C., Brazier, J.A., Cardin, C.J., Hall, J.P.

To be published.

Macromolecule Content

Total Structure Weight: 5.03 kDa
Atom Count: 370
Modeled Residue Count: 14
Deposited Residue Count: 14
Unique nucleic acid chains: 1

Macromolecules

Find similar nucleic acids by: Sequence

Molecule	Chains	Length	Organism	Image
Entity ID: 1

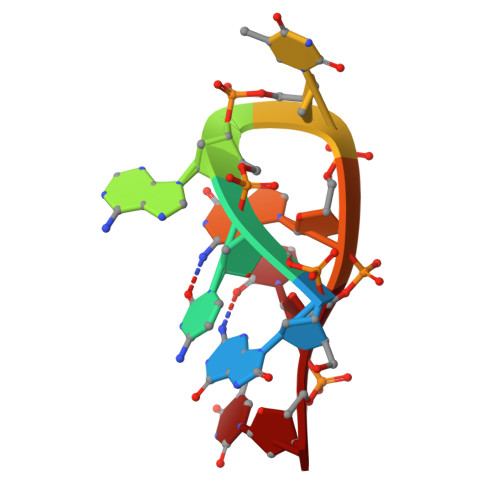

DNA (5'-D((8OG)PCPAPTPGPCP*T)-3')	A, B	7	synthetic construct
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NCO Query on NCO Download:Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain E [auth A] SDF format, chain D [auth A] SDF format, chain C [auth A] MOL2 format, chain F [auth A] MOL2 format, chain E [auth A] MOL2 format, chain D [auth A] MOL2 format, chain C [auth A] mmCIF format, chain F [auth A] mmCIF format, chain E [auth A] mmCIF format, chain D [auth A] mmCIF format, chain C [auth A]	C [auth A], D [auth A], E [auth A], F [auth A]	COBALT HEXAMMINE(III) Co H₁₈ N₆ DYLMFCCYOUSRTK-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A]
CU (Subject of Investigation/LOI) Query on CU Download:Ideal Coordinates CCD File SDF format, chain H [auth B] SDF format, chain G [auth A] MOL2 format, chain H [auth B] MOL2 format, chain G [auth A] mmCIF format, chain H [auth B] mmCIF format, chain G [auth A]	G [auth A], H [auth B]	COPPER (II) ION Cu JPVYNHNXODAKFH-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain H [auth B] Interactions & Density Focus chain G [auth A] Focus chain H [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.13 Å
R-Value Free: 0.172 (Depositor), 0.196 (DCC)
R-Value Work: 0.152 (Depositor)
R-Value Observed: 0.153 (Depositor)

Space Group: C 2 2 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 21.99	α = 90
b = 58.87	β = 90
c = 45.46	γ = 90

Software Package:

Software Name	Purpose
xia2	data scaling
XDS	data reduction
PHASER	phasing
Coot	model building
PHENIX	refinement

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2023-10-25

Deposition Author(s):

Funding Organization	Location	Grant Number
Engineering and Physical Sciences Research Council	United Kingdom	--

Revision History (Full details and data files)

Version 1.0: 2023-10-25
Type: Initial release
Version 1.1: 2026-03-04
Changes: Refinement description, Structure summary
