7RVG | pdb_00007rvg

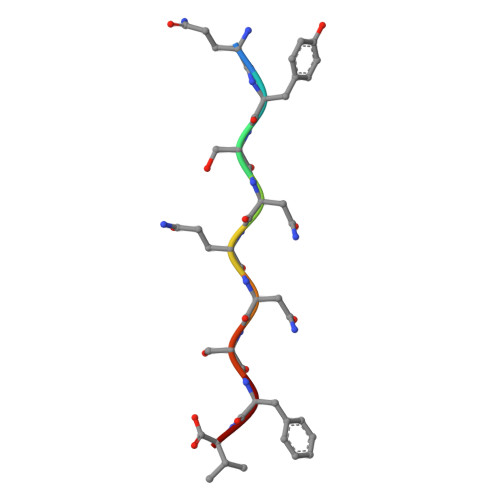

Segment from rabbit/pig prion protein 168-176 QYSNQNSFV

PDB DOI: https://doi.org/10.2210/pdb7RVG/pdb

Classification: PROTEIN FIBRIL
Organism(s): Oryctolagus cuniculus
Mutation(s): No

Deposited: 2021-08-18 Released: 2022-08-24
Deposition Author(s): Glynn, C., Rodriguez, J.A., Hernandez, E.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS), National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: ELECTRON CRYSTALLOGRAPHY
Resolution: 1.00 Å
R-Value Free:
0.220 (Depositor), 0.269 (DCC)
R-Value Work:
0.218 (Depositor), 0.243 (DCC)
R-Value Observed:
0.218 (Depositor)

wwPDB Validation 3D Report Full Report

This is version 1.1 of the entry. See complete history.

Literature

Structural and Biophysical Consequences of Sequence Variation in the B2a2 Loop of Mammalian Prions

Glynn, C., Hernandez, E., Gallagher-Jones, M., Miao, J., Rodriguez, J.A.

To be published.

Macromolecule Content

Total Structure Weight: 1.09 kDa
Atom Count: 81
Modeled Residue Count: 9
Deposited Residue Count: 9
Unique protein chains: 1

Macromolecules

Find similar proteins by: Sequence | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Major prion protein	A	9	Oryctolagus cuniculus	Mutation(s): 0
UniProt
Find proteins for Q95211 (Oryctolagus cuniculus) Explore Q95211 Go to UniProtKB: Q95211
Entity Groups
UniProt Group	Q95211
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON CRYSTALLOGRAPHY
Resolution: 1.00 Å
R-Value Free: 0.220 (Depositor), 0.269 (DCC)
R-Value Work: 0.218 (Depositor), 0.243 (DCC)
R-Value Observed: 0.218 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 23.57	α = 90
b = 4.86	β = 111.21
c = 27.7	γ = 90

Software Package:

Software Name	Purpose
XSCALE	data scaling
PHENIX	refinement
PDB_EXTRACT	data extraction
XDS	data reduction
SHELXD	phasing

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2022-08-24

Deposition Author(s):

Rodriguez, J.A.

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35GM128867
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	1F31AI143368

Revision History (Full details and data files)

Version 1.0: 2022-08-24
Type: Initial release
Version 1.1: 2024-05-22
Changes: Data collection
