7PW0 | pdb_00007pw0

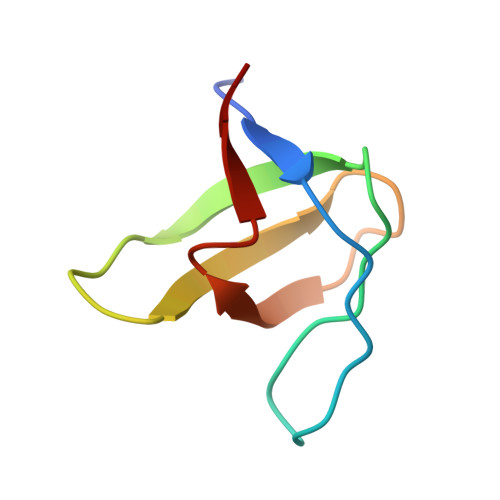

Crystal structure of the c-Src SH3 domain N112G-N113Y-T114N-E115H mutant

PDB DOI: https://doi.org/10.2210/pdb7PW0/pdb

Classification: PROTEIN BINDING
Organism(s): Gallus gallus
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2021-10-05 Released: 2022-09-14
Deposition Author(s): Camara-Artigas, A., Salinas Garcia, M.C.
Funding Organization(s): Ministry of Economy and Competitiveness (MINECO)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.70 Å
R-Value Free:
0.228 (Depositor), 0.210 (DCC)
R-Value Work:
0.208 (Depositor), 0.210 (DCC)
R-Value Observed:
0.209 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.1 of the entry. See complete history.

Literature

The effect of the hinge loops composition in the domain swapping of the SH3 domain

Camara-Artigas, A., Salinas Garcia, M.C.

To be published.

Macromolecule Content

Total Structure Weight: 54.11 kDa
Atom Count: 4,010
Modelled Residue Count: 465
Deposited Residue Count: 480
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Isoform 1 of Proto-oncogene tyrosine-protein kinase Src	A, B, C, D, E A, B, C, D, E, F, G, H	60	Gallus gallus	Mutation(s): 4 Gene Names: SRC EC: 2.7.10.2
UniProt
Find proteins for P00523 (Gallus gallus) Explore P00523 Go to UniProtKB: P00523
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P00523
Sequence Annotations Expand
Reference Sequence LOADING

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.70 Å
R-Value Free: 0.228 (Depositor), 0.210 (DCC)
R-Value Work: 0.208 (Depositor), 0.210 (DCC)
R-Value Observed: 0.209 (Depositor)

Space Group: P 1 2₁ 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 37.259	α = 90
b = 93.138	β = 97.25
c = 80.439	γ = 90

Software Package:

Software Name	Purpose
XDS	data reduction
Aimless	data scaling
PHASER	phasing
PHENIX	refinement
PDB_EXTRACT	data extraction

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2022-09-14

Deposition Author(s):

Camara-Artigas, A.

Salinas Garcia, M.C.

Funding Organization	Location	Grant Number
Ministry of Economy and Competitiveness (MINECO)	Spain	BIO2006-78020-R

Revision History (Full details and data files)

Version 1.0: 2022-09-14
Type: Initial release
Version 1.1: 2024-01-31
Changes: Data collection, Refinement description
