7HI8 | pdb_00007hi8

PanDDA analysis group deposition -- Crystal Structure of ground state model of human Brachyury

• PDB DOI: https://doi.org/10.2210/pdb7HI8/pdb
• Deposition Group: G_1002303 (ground state) ExploreG_1002303

• Classification: TRANSCRIPTION
• Organism(s): Homo sapiens
• Expression System: Escherichia coli
• Mutation(s): No


• Deposited: 2024-09-20 Released: 2024-10-16
• Deposition Author(s): Newman, J.A., Gavard, A.E., Sherestha, L., Burgess-Brown, N.A., von Delft, F., Arrowsmith, C.H., Edwards, A., Bountra, C., Gileadi, O.
• Funding Organization(s): Wellcome Trust

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.54 Å
• R-Value Free:
  0.241 (Depositor), 0.256 (DCC)
• R-Value Work:
  0.227 (Depositor), 0.239 (DCC)
• R-Value Observed:
  0.228 (Depositor)

Literature

PanDDA analysis group deposition

Newman, J.A., Gavard, A.E., Sherestha, L., Burgess-Brown, N.A., von Delft, F., Arrowsmith, C.H., Edwards, A., Bountra, C., Gileadi, O.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 20.26 kDa
• Atom Count: 1,462
• Modeled Residue Count: 172
• Deposited Residue Count: 173
• Unique protein chains: 1

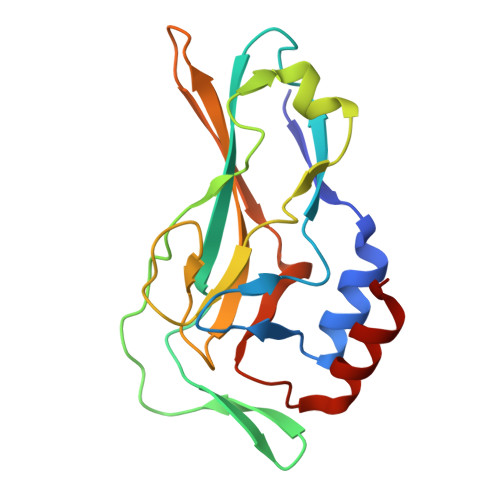

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
T-box transcription factor T	A	173	Homo sapiens	Mutation(s): 0  Gene Names: TBXT, T
UniProt & NIH Common Fund Data Resources
Find proteins for O15178 (Homo sapiens) Explore O15178  Go to UniProtKB:  O15178
PHAROS:  O15178 GTEx:  ENSG00000164458

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
CD	B [auth A], C [auth A], D [auth A], E [auth A], F [auth A]	CADMIUM ION Cd WLZRMCYVCSSEQC-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.54 Å
• R-Value Free:  0.241 (Depositor), 0.256 (DCC)
• R-Value Work:  0.227 (Depositor), 0.239 (DCC)
• R-Value Observed: 0.228 (Depositor)

Space Group: P 4₁ 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 60.318	α = 90
b = 60.318	β = 90
c = 110.014	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
Aimless	data scaling
PDB_EXTRACT	data extraction
XDS	data reduction
REFMAC	phasing

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2024-10-16
Deposition Author(s): Newman, J.A., Gavard, A.E., Sherestha, L., Burgess-Brown, N.A., von Delft, F., Arrowsmith, C.H., Edwards, A., Bountra, C., Gileadi, O.

---

Funding Organization	Location	Grant Number
Wellcome Trust	United Kingdom	--

Revision History

• Version 1.0: 2024-10-16
  Type: Initial release
