7ETK | pdb_00007etk

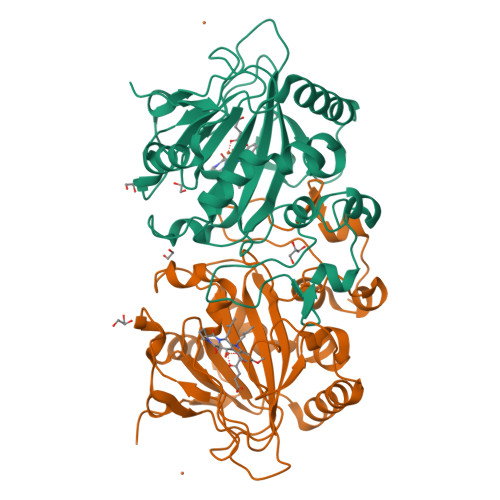

The complex structure of FtmOx1 bond with fumitremorgen B at 1.22 angstrom


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.22 Å
  • R-Value Free:
    0.172 (Depositor), 0.172 (DCC)
  • R-Value Work:
    0.150 (Depositor), 0.151 (DCC)
  • R-Value Observed:
    0.152 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 7ETK

Ligand Structure Quality Assessment


This is version 1.4 of the entry. See complete history

Literature

Structural Insight into the Catalytic Mechanism of the Endoperoxide Synthase FtmOx1.

Wu, L.Wang, Z.Cen, Y.Wang, B.Zhou, J.

(2022) Angew Chem Int Ed Engl 61: e202112063-e202112063

  • DOI: https://doi.org/10.1002/anie.202112063
  • Primary Citation Related Structures:
    7ETK, 7ETL

  • PubMed Abstract:

    The 2-oxoglutarate (2OG)-dependent non-heme enzyme FtmOx1 catalyzes the endoperoxide biosynthesis of verruculogen. Although several mechanistic studies have been carried out, the catalytic mechanism of FtmOx1 is not well determined owing to the lack of a reliable complex structure of FtmOx1 with fumitremorgin B. Herein we provide the X-ray crystal structure of the ternary complex FtmOx1⋅2OG⋅fumitremorgin B at a resolution of 1.22 Å. Our structures show that the binding of fumitremorgin B induces significant compression of the active pocket and that Y68 is in close proximity to C26 of the substrate. Further MD simulation and QM/MM calculations support a CarC-like mechanism, in which Y68 acts as the H atom donor for quenching the C26-centered substrate radical. Our results are consistent with all available experimental data and highlight the importance of accurate complex structures in the mechanistic study of enzymatic catalysis.


  • Organizational Affiliation
    • The Research Center of Chiral Drugs, Innovation Research Institute of Traditional Chinese Medicine (IRI), Shanghai University of Traditional Chinese Medicine, Shanghai, 201203, China.

Macromolecule Content

  • Total Structure Weight: 72.01 kDa
  • Atom Count: 5,242
  • Modeled Residue Count: 568
  • Deposited Residue Count: 624
  • Unique protein chains: 1

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
Verruculogen synthase
A, B
312Aspergillus fumigatusMutation(s): 0
EC: 1.14.11.38
UniProt
Find proteins for Q4WAW9 (Aspergillus fumigatus (strain ATCC MYA-4609 / CBS 101355 / FGSC A1100 / Af293))
Explore Q4WAW9
Go to UniProtKB:  Q4WAW9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ4WAW9
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 5 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
4Q1

Query on 4Q1



Download:Ideal Coordinates CCD File
I [auth A],
N [auth B]
fumitremorgen B
C27 H33 N3 O5
WEIYXEFMCIRZHC-MWGWWEMPSA-N
AKG
(Subject of Investigation/LOI)

Query on AKG



Download:Ideal Coordinates CCD File
C [auth A],
K [auth B]
2-OXOGLUTARIC ACID
C5 H6 O5
KPGXRSRHYNQIFN-UHFFFAOYSA-N
GOL

Query on GOL



Download:Ideal Coordinates CCD File
J [auth A],
O [auth B]
GLYCEROL
C3 H8 O3
PEDCQBHIVMGVHV-UHFFFAOYSA-N
EDO

Query on EDO



Download:Ideal Coordinates CCD File
F [auth A],
G [auth A],
H [auth A]
1,2-ETHANEDIOL
C2 H6 O2
LYCAIKOWRPUZTN-UHFFFAOYSA-N
FE2

Query on FE2



Download:Ideal Coordinates CCD File
D [auth A],
E [auth A],
L [auth B],
M [auth B]
FE (II) ION
Fe
CWYNVVGOOAEACU-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.22 Å
  • R-Value Free:  0.172 (Depositor), 0.172 (DCC)
  • R-Value Work:  0.150 (Depositor), 0.151 (DCC)
  • R-Value Observed: 0.152 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 62.024α = 90
b = 77.782β = 103.708
c = 62.208γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
PHENIXrefinement
HKL-3000data reduction
HKL-3000data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2021-12-01
    Type: Initial release
  • Version 1.1: 2022-02-16
    Changes: Database references
  • Version 1.2: 2022-03-23
    Changes: Database references
  • Version 1.3: 2022-03-30
    Changes: Database references
  • Version 1.4: 2023-11-29
    Changes: Data collection, Refinement description
