7E4D

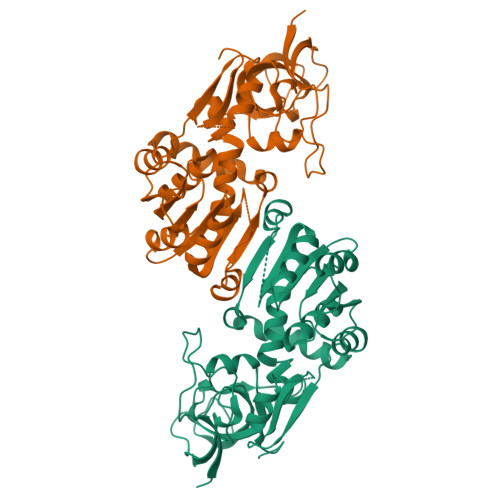

Crystal structure of PlDBR


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free: 0.263
  • R-Value Work: 0.221
  • R-Value Observed: 0.223

wwPDB Validation   3D Report Full Report


This is version 1.4 of the entry. See complete history


Literature

Exploration and structure-based engineering of alkenal double bond reductases catalyzing the C alpha C beta double bond reduction of coniferaldehyde.

Kamimura, N.Watanabe, S.Sugimoto, K.Senda, M.Araki, T.Yu, H.Y.Hishiyama, S.Kajita, S.Senda, T.Masai, E.

(2022) N Biotechnol 68: 57-67

  • DOI: https://doi.org/10.1016/j.nbt.2022.01.007
  • Primary Citation of Related Structures:
    7E4D

  • PubMed Abstract:

    Lignin, a complex aromatic polymer, represents a significant obstacle in lignocellulosic biomass utilization. The polymerization of lignin occurs by radical couplings, which mainly form ether and C-C bonds between monolignol units. The chemical stability of these bonds between monolignol units causes the recalcitrant nature of lignin. Since the Cα-Cβ double bond in the monolignols is a crucial chemical feature for the radical coupling, reduction of the double bond would decrease the degree of lignin polymerization, avoiding the recalcitrance of lignin. To develop a method of lignin engineering, we have focused on alkenal double bond reductases (DBR), which can reduce the Cα-Cβ double bond of a monolignol precursor. Here, a novel bacterial DBR from Parvibaculum lavamentivorans DS-1 (PlDBR) was found. This enzyme can reduce the side-chain double bond of coniferaldehyde (CALD) and has a 41% amino-acid sequence identity with CALD DBR from Arabidopsis thaliana (AtDBR). The crystal structure of the PlDBR showed that it has a larger substrate-binding pocket than AtDBR, conferring broader substrate specificity on the former. Structural and mutation analyses of PlDBR and AtDBR suggested that Tyr51 and Try252 are critical residues for the catalytic activity of PlDBR. In addition, Tyr81 of AtDBR appears to cause substrate inhibition. Replacing Tyr81 of AtDBR with a smaller amino-acid residue, as in the AtDBR variants Tyr81Leu and Tyr81Ala, resulted in a substantially higher CALD-reducing activity compared to the wild type. These variants would be promising candidates for lignin manipulation to decrease the recalcitrance of lignocellulosic biomass.


  • Organizational Affiliation

    Department of Bioengineering, Nagaoka University of Technology, Nagaoka, Niigata 940-2188, Japan. Electronic address: zkami@vos.nagaokaut.ac.jp.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Double Bond Reductase
A, B
362Parvibaculum lavamentivorans DS-1Mutation(s): 0
Gene Names: Plav_1098
UniProt
Find proteins for A7HS36 (Parvibaculum lavamentivorans (strain DS-1 / DSM 13023 / NCIMB 13966))
Explore A7HS36
Go to UniProtKB:  A7HS36
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA7HS36
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.60 Å
  • R-Value Free: 0.263
  • R-Value Work: 0.221
  • R-Value Observed: 0.223
  • Space Group: P 21 21 21
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 64.461α = 90
b = 87.184β = 90
c = 117.573γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Cootmodel building
XDSdata reduction
XSCALEdata scaling

Structure Validation

View Full Validation Report



Entry History

Deposition Data

Revision History  (Full details and data files)

  • Version 1.0: 2022-02-02
    Type: Initial release
  • Version 1.1: 2022-02-09
    Changes: Database references
  • Version 1.2: 2022-02-16
    Changes: Database references
  • Version 1.3: 2022-03-02
    Changes: Database references
  • Version 1.4: 2024-05-29
    Changes: Data collection, Refinement description
