7DMY

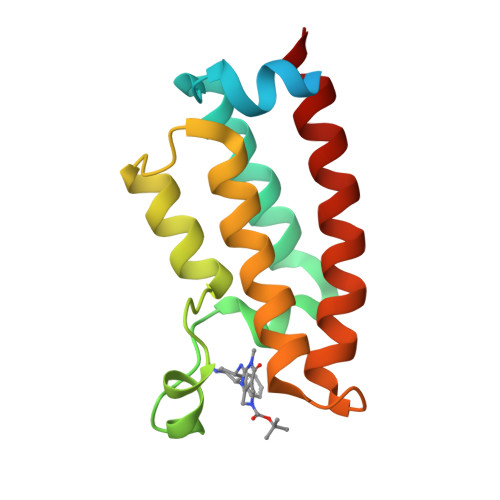

The crystal structure of Cpd7 in complex with BPTF bromodomain


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.288
  • R-Value Work: 0.253
  • R-Value Observed: 0.255

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Discovery of selective BPTF bromodomain inhibitors by screening and structure-based optimization.

Xiong, L.Mao, X.Guo, Y.Zhou, Y.Chen, M.Chen, P.Yang, S.Li, L.

(2021) Biochem Biophys Res Commun 545: 125-131

  • DOI: https://doi.org/10.1016/j.bbrc.2021.01.067
  • Primary Citation of Related Structures:
    7DMY, 7DN4

  • PubMed Abstract:

    Bromodomain and PHD finger containing transcription factor (BPTF) is a multidomain protein that regulates the transcription of chromatin and is related to many cancers. Herein, we report the screening-based discovery of Cpd1, a compound with micromolar affinity to the BPTF bromodomain. Through structure-guided optimization, we synthesized a variety of new inhibitors. Among these compounds, Cpd8 and Cpd10 were highly potent and selective inhibitors, with K D values of 428 nM and 655 nM in ITC assays, respectively. The high activity was explained by the cocrystal structure of Cpd8 in complex with the BPTF bromodomain protein. Cpd8 and Cpd10 were able to stabilize the BPTF bromodomain protein in cells in a cellular thermal shift assay (CETSA). Cpd8 downregulated c-MYC expression in A549 cells. All experiments prove that these two compounds are potential BPTF inhibitors.


  • Organizational Affiliation

    State Key Laboratory of Biotherapy and Cancer Center, West China Hospital, Sichuan University, Chengdu, Sichuan, 610041, People's Republic of China.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Nucleosome-remodeling factor subunit BPTF144Homo sapiensMutation(s): 0
Gene Names: BPTFFAC1FALZ
UniProt & NIH Common Fund Data Resources
Find proteins for Q12830 (Homo sapiens)
Explore Q12830
Go to UniProtKB:  Q12830
PHAROS:  Q12830
GTEx:  ENSG00000171634
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ12830
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
HAF (Subject of Investigation/LOI)
Query on HAF

Download Ideal Coordinates CCD File
B [auth A]tert-butyl 3-methyl-2-[[(3R,5R)-1-methyl-5-phenyl-piperidin-3-yl]amino]-4-oxidanylidene-5,7-dihydropyrrolo[3,4-d]pyrimidine-6-carboxylate
C24 H33 N5 O3
WGOOEWVIQMHMCB-ZWKOTPCHSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.00 Å
  • R-Value Free: 0.288
  • R-Value Work: 0.253
  • R-Value Observed: 0.255
  • Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 75.011α = 90
b = 44.931β = 95.35
c = 40.838γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
SCALAdata scaling
PDB_EXTRACTdata extraction
HKL-3000data reduction
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China81930125

Revision History  (Full details and data files)

  • Version 1.0: 2021-10-20
    Type: Initial release
  • Version 1.1: 2023-11-29
    Changes: Data collection, Refinement description
