6XTM | pdb_00006xtm

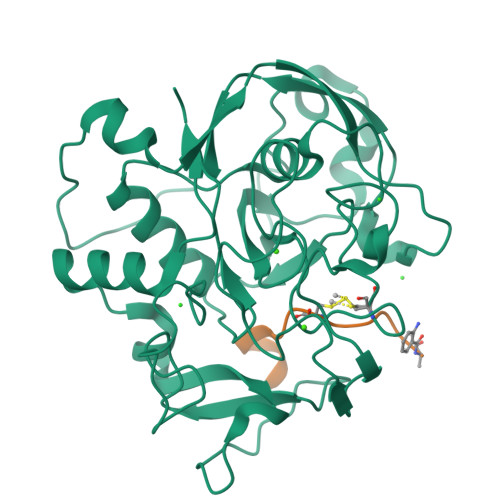

Crystal structure reveals non-coordinative binding of O2 to the copper center of the formylglycine-generating enzyme - FGE:Ag:S:O2 complex

• PDB DOI: https://doi.org/10.2210/pdb6XTM/pdb

• Classification: TRANSFERASE
• Organism(s): Thermomonospora curvata DSM 43183
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2020-01-16 Released: 2021-01-27
• Deposition Author(s): Leisinger, F., Seebeck, F.P.
• Funding Organization(s): Swiss National Science Foundation, European Research Council (ERC)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 1.25 Å
• R-Value Free:
  0.181 (Depositor), 0.190 (DCC)
• R-Value Work:
  0.168 (Depositor), 0.176 (DCC)
• R-Value Observed:
  0.169 (Depositor)

Starting Model: experimental

Literature

Non-Coordinative Binding of O2 at the Active Center of a Copper-Dependent Enzyme

Leisinger, F., Miarzlou, D.A., Seebeck, F.P.

(2020) Angew Chem Int Ed Engl

• DOI: https://doi.org/10.1002/ange.202014981

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 2-mer - A1B1

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 35.17 kDa
• Atom Count: 2,927
• Modeled Residue Count: 317
• Deposited Residue Count: 317
• Unique protein chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Formylglycine-generating enzyme	A	303	Thermomonospora curvata DSM 43183	Mutation(s): 0  Gene Names: Tcur_4811 EC: 1.8.3.7
UniProt
Find proteins for D1A7C3 (Thermomonospora curvata (strain ATCC 19995 / DSM 43183 / JCM 3096 / KCTC 9072 / NBRC 15933 / NCIMB 10081 / Henssen B9)) Explore D1A7C3  Go to UniProtKB:  D1A7C3

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Abz-ALA-THR-THR-PRO-LEU-CYS-GLY-PRO-SER-ARG-ALA-SER-ILE-LEU-SER-GLY	B [auth C]	14	Thermomonospora curvata DSM 43183	Mutation(s): 0
UniProt
Find proteins for D1ADF2 (Thermomonospora curvata (strain ATCC 19995 / DSM 43183 / JCM 3096 / KCTC 9072 / NBRC 15933 / NCIMB 10081 / Henssen B9)) Explore D1ADF2  Go to UniProtKB:  D1ADF2

Small Molecules

Ligands 5 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
SOA	J [auth C]	ISATOIC ANHYDRIDE C7 H9 N O VYFOAVADNIHPTR-UHFFFAOYSA-N
AG	I [auth A]	SILVER ION Ag FOIXSVOLVBLSDH-UHFFFAOYSA-N
CA	D [auth A], E [auth A]	CALCIUM ION Ca BHPQYMZQTOCNFJ-UHFFFAOYSA-N
CL	F [auth A], G [auth A], H [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M
OXY	C [auth A]	OXYGEN MOLECULE O2 MYMOFIZGZYHOMD-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 1.25 Å
• R-Value Free:  0.181 (Depositor), 0.190 (DCC)
• R-Value Work:  0.168 (Depositor), 0.176 (DCC)
• R-Value Observed: 0.169 (Depositor)

Space Group: P 2₁ 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 58.161	α = 90
b = 71.909	β = 90
c = 76.769	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
Aimless	data scaling
PDB_EXTRACT	data extraction
PHASER	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2021-01-27
Deposition Author(s): Leisinger, F., Seebeck, F.P.

---

Funding Organization	Location	Grant Number
Swiss National Science Foundation	Switzerland	--
European Research Council (ERC)	European Union	ERC-2013- StG 336559

Revision History

• Version 1.0: 2021-01-27
  Type: Initial release

• Version 1.1: 2021-08-11
  Changes: Advisory, Database references
• Version 1.2: 2024-01-24
  Changes: Data collection, Refinement description
• Version 1.3: 2025-12-17
  Changes: Structure summary
