6X2R

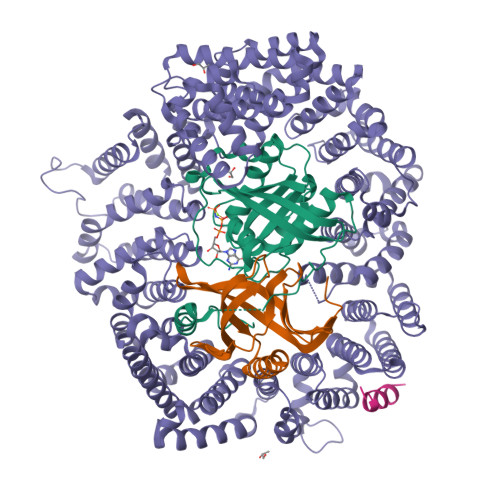

Crystal Structure of the 4E-TNES peptide bound to CRM1


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free: 0.257
  • R-Value Work: 0.222
  • R-Value Observed: 0.223

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.2 of the entry. See complete history


Literature

Recognition of nuclear export signals by CRM1 carrying the oncogenic E571K mutation.

Baumhardt, J.M.Walker, J.S.Lee, Y.Shakya, B.Brautigam, C.A.Lapalombella, R.Grishin, N.Chook, Y.M.

(2020) Mol Biol Cell 31: 1879-1891

  • DOI: https://doi.org/10.1091/mbc.E20-04-0233
  • Primary Citation of Related Structures:
    6X2M, 6X2O, 6X2P, 6X2R, 6X2S, 6X2U, 6X2V, 6X2W, 6X2X, 6X2Y

  • PubMed Abstract:

    The E571K mutation of CRM1 is highly prevalent in some cancers, but its mechanism of tumorigenesis is unclear. Glu571 of CRM1 is located in its nuclear export signal (NES)-binding groove, suggesting that binding of select NESs may be altered. We generated HEK 293 cells with either monoallelic CRM1WT/E571K or biallelic CRM1E571K/E571K using CRISPR/Cas9. We also combined analysis of binding affinities and structures of 27 diverse NESs for wild-type and E571K CRM1 with structure-based bioinformatics. While most NESs bind the two CRM1 similarly, NESs from Mek1, eIF4E-transporter, and RPS2 showed >10-fold affinity differences. These NESs have multiple charged side chains binding close to CRM1 position 571, but this feature alone was not sufficient to predict different binding to CRM1(E571K). Consistent with eIF4E-transporter NES binding weaker to CRM1(E571K), eIF4E-transporter was mislocalized in tumor cells carrying CRM1(E571K). This serves as proof of concept that understanding how CRM1(E571K) affects NES binding provides a platform for identifying cargoes that are mislocalized in cancer upon CRM1 mutation. Finally, we showed that large affinity changes seen with some NES peptides (of Mek1 and RPS2) do not always translate to the full-length cargoes, suggesting limitations with current NES prediction methods. Therefore, comprehensive studies like ours are imperative to identify CRM1 cargoes with real pathogenic potential.


  • Organizational Affiliation

    Department of Pharmacology, University of Texas Southwestern Medical Center, Dallas, TX 75390.


Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
GTP-binding nuclear protein Ran216Homo sapiensMutation(s): 0
Gene Names: RANARA24OK/SW-cl.81
EC: 3.6.5
UniProt & NIH Common Fund Data Resources
Find proteins for P62826 (Homo sapiens)
Explore P62826
Go to UniProtKB:  P62826
PHAROS:  P62826
GTEx:  ENSG00000132341
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP62826
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Ran-specific GTPase-activating protein 1140Saccharomyces cerevisiaeMutation(s): 0
Gene Names: YRB1CST20HTN1SFO1YDR002WYD8119.08
UniProt
Find proteins for P41920 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P41920
Go to UniProtKB:  P41920
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP41920
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage
Exportin-11,024Saccharomyces cerevisiaeMutation(s): 0
Gene Names: CRM1KAP124XPO1YGR218WG8514
UniProt
Find proteins for P30822 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c))
Explore P30822
Go to UniProtKB:  P30822
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP30822
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
Eukaryotic translation initiation factor 4E transporter15Homo sapiensMutation(s): 0
Gene Names: EIF4ENIF1
UniProt & NIH Common Fund Data Resources
Find proteins for Q9NRA8 (Homo sapiens)
Explore Q9NRA8
Go to UniProtKB:  Q9NRA8
PHAROS:  Q9NRA8
GTEx:  ENSG00000184708
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ9NRA8
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.30 Å
  • R-Value Free: 0.257
  • R-Value Work: 0.222
  • R-Value Observed: 0.223
  • Space Group: P 43 21 2
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 106.602α = 90
b = 106.602β = 90
c = 303.674γ = 90
Software Package:
Software NamePurpose
HKL-2000data scaling
PHENIXrefinement
PDB_EXTRACTdata extraction
HKL-2000data reduction
PHENIXphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Cancer Prevention and Research Institute of Texas (CPRIT)--
Welch Foundation--

Revision History  (Full details and data files)

  • Version 1.0: 2020-07-01
    Type: Initial release
  • Version 1.1: 2020-08-12
    Changes: Database references
  • Version 1.2: 2023-10-18
    Changes: Advisory, Data collection, Database references, Refinement description
